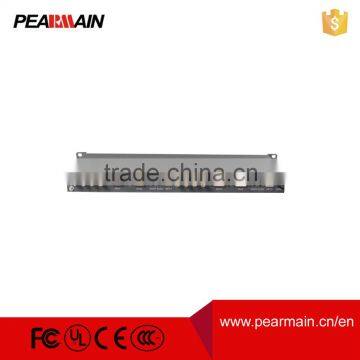

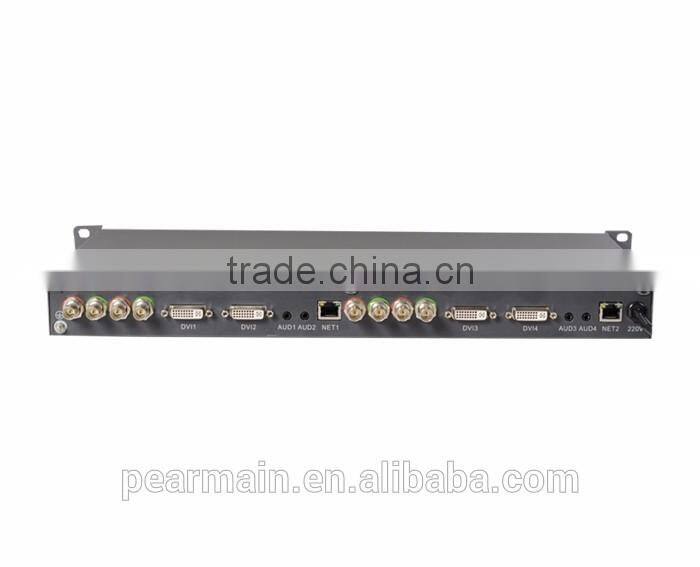

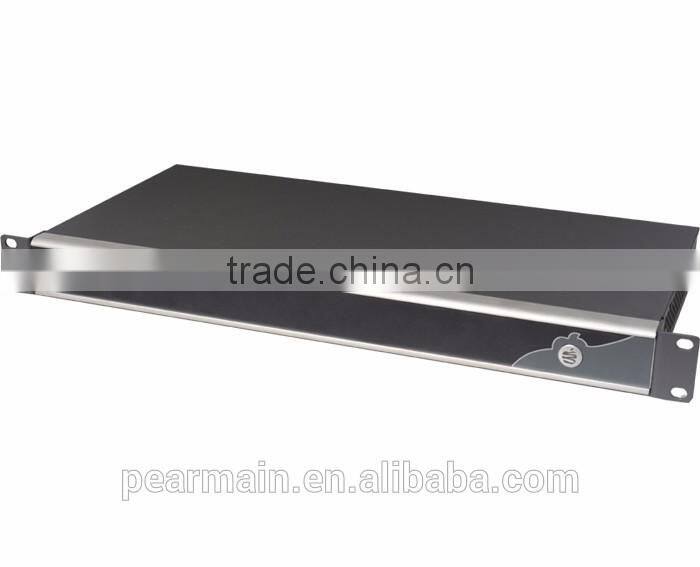

PE1208-16 SDI Video Distribution and Amplifier
No compression, no delay, real-time distribution output.
Internal input automatic equalizer and driver of output cable
Support time recovery.
Support SD/HD/3G-SDI digital serial signal automatic identification.
8ch SDI input, 16ch output.
Plug & play.
Compatible the SDI stream of 143Mbps, 177Mbps, 270Mbps, 360Mbps, 540Mbps, 1.4835Gbps, 1.485Gbps, 2.967 Gbps, 2.97 Gbps
Internal Anti surge and electrostatic protection.
1U height, 19” chassis mount.
| SDI port | |
| Port standard | Match digital serial standard of SMPTE 259M/292M/424M/425M |
| Physical port | BNC connector, match IEC169-8 standard |
| Video port | Video input: 8ch |
| Output after distribution: 16ch | |
| Input/outut impendance | 75Ω |
| Output | |
| Signal amplitude | 800mVpp ± 10% |
| DC Level excursion | 0 ± 500mV |
| Overshoot | ≤ 10% |
| Rise/fall time | ≤ 270ps (HD-SDI testing environment) |
| Rise/fall time difference | ≤ 100ps (HD-SDI testing environment) |
| Time jitter | ≤ 1.0UI (HD-SDI testing environment) |
| Calibration jitter | ≤ 0.2UI (HD-SDI testing environment) |
| Others | |
| Working temperature | -10℃ ~ +55℃ |
| Humidity | 10% ~ 90% |
| Voltage | 220VAC |
| Power | 10W |
| Weight | 1.5KG |
| Dimension | 250(D)×433(W)×44(H)mm ,19”1U standard chassis |
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
