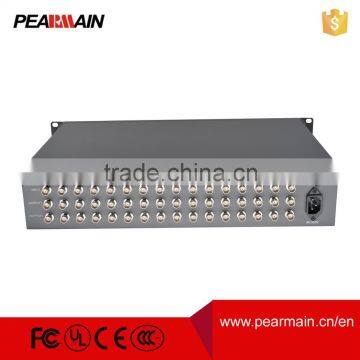

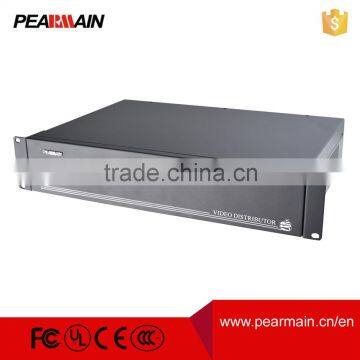

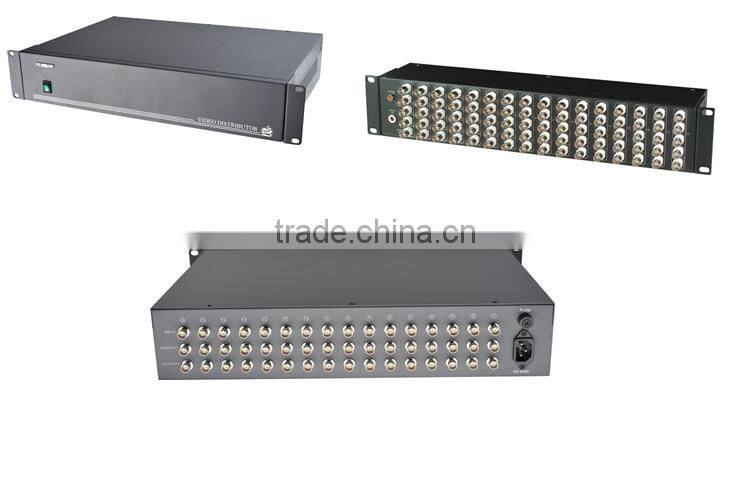

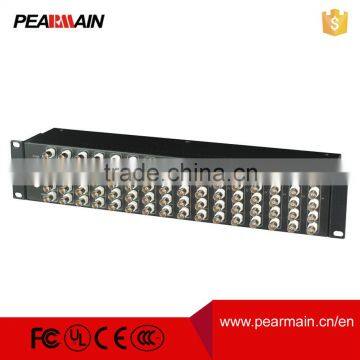

Video amplifier can amplify 1 channel video signal into multi-channel uniformly, video signal from amplifier is same to the video signal before amplifier, that is 6Mhz, 1Vp-p, 75Ω.
12 series can amplify 8,16 or 32 groups of video signal, every group is 1ch signal input and 2ch or 3ch same signal output.
Input :1V-2V p-p,75Ω,1 ch
Output:1V-2V p-p,high-resistance,2ch
Quantity of video group:8 or 16 maximun
Video bandwidth:12MHz
Voltage input:220VAC±10%, 50Hz/60Hz
Power:≤40W
Fuse:1A/250VAC
Video port: BNC
Weight: 5KG
Dimension:482Hmm(W)×88mm(H)×300mm(D)
Working temperature: -20℃~+40℃
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
