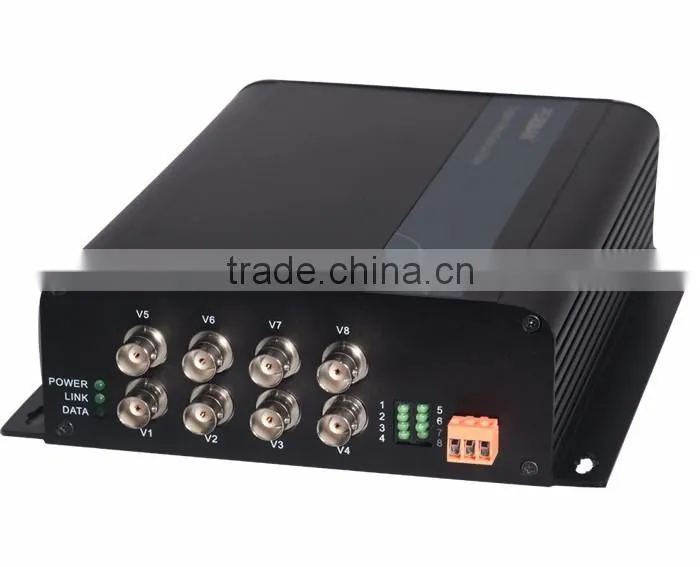

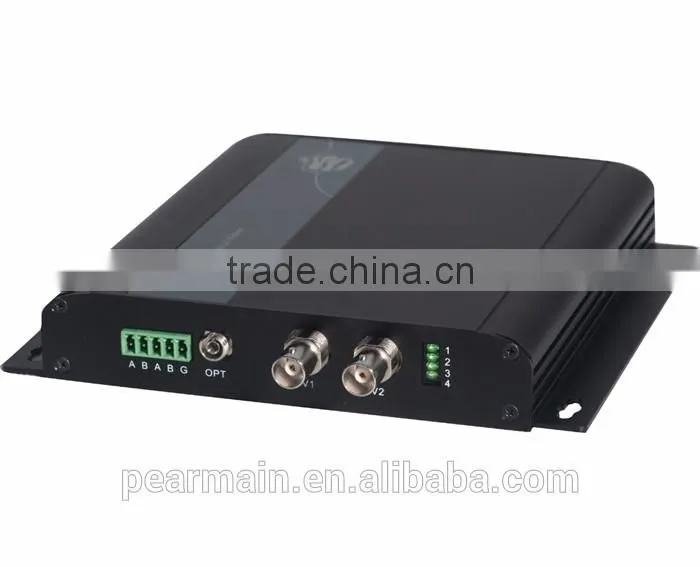

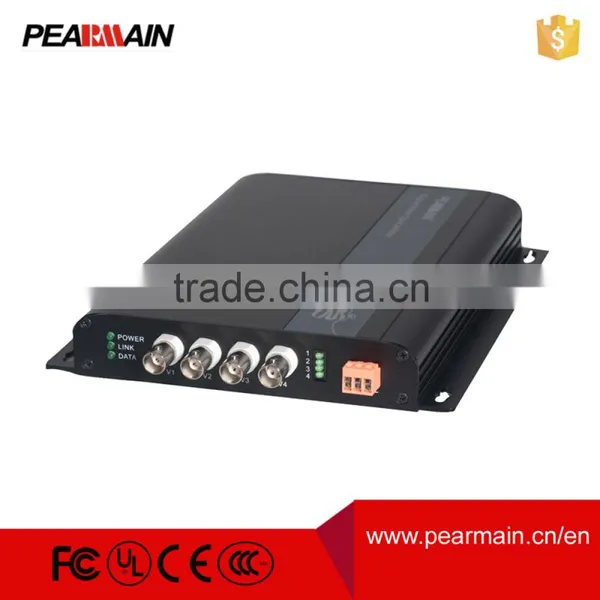

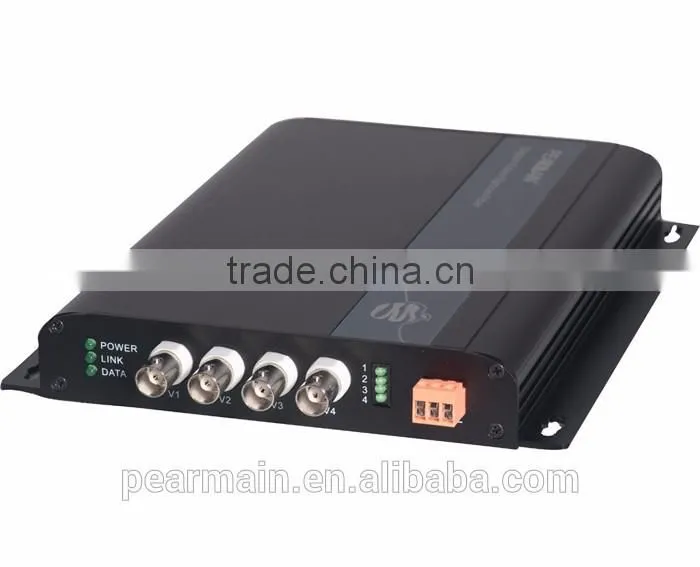

Help CenterHigh Quality Composite Video & Audio Fiber Optic Transceiver
Related Products
-
32ch Digital Video Fiber Optic TransceiverUS$ 299 - 1,599MOQ: 1 Unit -
High-speed Digital Video Fiber Optic TransceiverUS$ 199.00 - 199.00MOQ: 1 Unit
-
Long Distance Transmission Digital Video Fiber Optic TransceiverUS$ 199.00 - 199.00MOQ: 1 Unit
-
High Quality 16ch Video Fiber Optic TransceiverUS$ 99 - 499MOQ: 1 Unit
-
High Quality Composite Analog Video Fiber OpticsUS$ 199.00 - 199.00MOQ: 1 Unit
Video
Video Channel: 1
Video Format: NTSC, PAL, SECAM
Video voltage:1Vp-p,75Ω
Max-input Voltage:1.5Vp-p,75Ω
Bandwidth: 10MHz
Differential Gain:≤0.7%
Differential Phase:≤0.7°
Video SNR:≥70dB
Encoding: 10BIT PCM
Bit Rate over Fiber:≥15.36MHz
Connector: BNC
Audio
Frequency Response:50Hz-20KHz
Audio Input/Output Impedance:10K(Unbalanced)
Audio Max-Input/Output Voltage:3.5Vp-p(unbalanced)
Audio distortion:≤1%
Audio SNR:≥82dB
Audio Coding Mode: 24BIT digital audio
Bit Rate:48K
System Parameter
MTBF(Mean Time Between Failures):>100 thousand hours
System Bit Error Rate: better than 10E-13
Indicator:Power indicator,Video/data transmit lock indicator, fiber link indicator
Power Supply:
Stand-alone type:1A@6VDC
Rack mount type: 220V AC0.25A
Dimension:
18 slot Rack mount:
Dimension: 480x360x44mm
Weight:3.5Kg
Material: aluminum
Surface Disposal: sandblast oxidation
Color: silver gray
Stand-alone:
Dimension:195X129 X21
Weight:1Kg
Material: aluminum
Surface Disposal: sandblast oxidation
Color: silver gray
Environment
Operating Temperature:-40℃~74℃
Storage Temperature:-55℃~85℃
Humidity :0~95% non-condensing
Electromagnetism compatibility
Accord with GJB151A-97, SC
Operating state indicator
PE-TV1D↑xxx transmitter
POWER : power indicator
LOCKED:transmit lock
DATA: data indicator
PE-RV1D↑xxxreceiver
POWER:power indicator
LOCKED: transmit lock
DATA: data indicator
Network management system function
Fiber link state detection
Video channel detection
Operating state detection (including operating temperature, voltage and so on)
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
