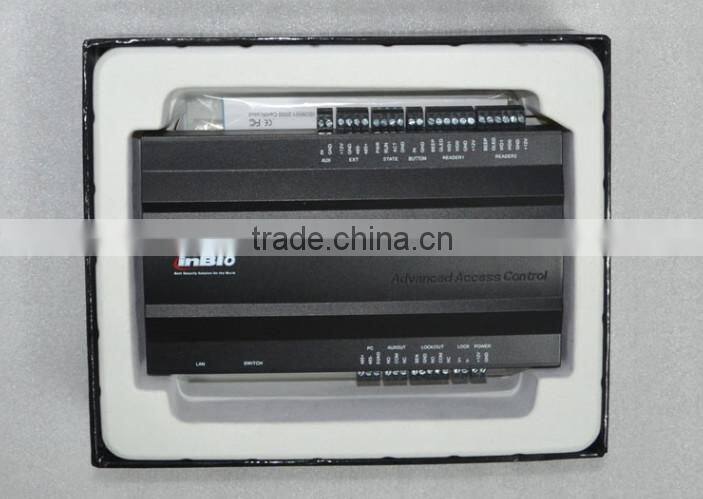

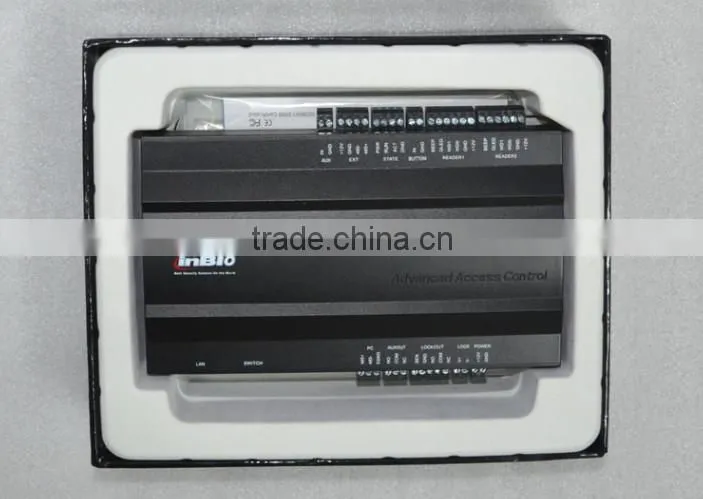

One Door Access Controller Board for Fingerprint Access Control (Bio160)
Specifications
1. Biometric controller, support fingerprint reader
2. 1 door, 2 Reader
3. SD card
4. Anti-pass back, Inter Lock...
Introduction:
BIO160 is the most advanced access control panel which can provide biometric security for any door when connected with biometric readers and the software.These panels are versatile and can connect both F series of fingerprint readers and KR series of RFID readers. These readers can be connected with TCP/IP and RS 485 connectivity to the panels. With the help of Access software the user will get the flexibility and scalability to program the access control system. The software is web based and hence can be accessed from any computer with the help of a web browser.
Parameter index:
Truly Internal Biometric Identification
BIO160 panel carries out the matching of fingerprints on the panels. The fingerprint templates from the reader are transmitted to the panel and the panel will match the placed finger with the template stored in the database. With the powerful version 10 algorithm, the fingerprint matching is extremely fast and accurate.
Dual Communication Mode
inBIO160 supports dual communication modes, i.e. TCP/IP mode and RS485 mode. TCP/IP communication offers unparallel speed and reliability but is limited to 300ft of cable length between the panel and the reader. With RS 485 you can extend the cable length between the reader and panel up to 1km.
LED Indicators
Five LED indicators inside the housing of inBIO160 panel are used to indicate power, steady functioning of the panel, valid identification and data transfer from inBIO160 to readers.
External SD card support
inBIO160 can store 100,000 transactions in its internal memory. However for special projects or applications which require more storage capacity, a SD card can be added to inBIO160 for storage of data. It also helps in backing up the data from the controller.
Surveillance Linkage
Users could connect inBIO160 with DVR, and have video surveillance linkage function in Access5.0 Software. When the linkage is established, users can monitor live video.
Salient Access Control Functions
Interlock, Anti-Pass Back, First Card Opening, Multi-Card Opening, Duress Password and Fingerprint, Remote Monitoring, Real-Time Monitoring and E-map Linkage. All of these functions are compatible with the third party accessories like exit switches, PIR detectors, card readers, alarms and RTE hardware.
Model |
BIO160 |
CPU |
32bit MIPS CPU |
RAM |
32M bits |
Flash Memory |
128M bits |
Fingerprint Capacity |
3000 |
Card Capacity |
30,000 |
Event Buffer |
100,000 |
SD Card Backup |
Support |
Power / Current |
DC 9.6V-14.4V, Rated Max.1A |
Wiegand Reader Port |
2ea (26bit Wiegand, 8bit Burst for PIN) |
RS485 Reader Port |
1ea Extended RS485 Port |
Communication |
RS485, TCP/IP. |
Baud Rate |
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port |
2ea (Exit Button#1, Door Sensor#1). |
Output Port |
1ea (1 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC). |
1ea (1 Aux FORM-C Relay Output, SPDT 2A@30VDC) | |
LED Indicator |
Yes, LED indication for communication, power, status and punch card. |
Operating Temperature |
0°to +55°C. |
Operating Humidity |
10% to 80% relative humidity non-condensing. |
Dimension (H*W*D)mm |
185*106*36( single board). 400*330*90.5(with power supply and metal cabinet). |
Housing Material |
PVC |
