TCP/IP Webserver Door Access Controller Relay Board
Product Introduction:
The Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks.
The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-passback, activity reports.
Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code.
Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
Parameter index:
| Product Parameter | Parameter Description |
| PCB board size | 160mm long * 106mm wide |
| Case Size | 273mm * 228mm * 65mm |
| Power Supply | 12VDC 4-7A |
| Circuit board power consumption | less than 100mA |
| Reader Input Format | Wiegand 26 |
| Means of communication | TCP/IP 10M/100M self adaptive |
| Function Description | can control two doors, enter via card swiping and exit via card swipping or button |
| Quantity of reader | 4pcs |
| Can control the gate output relay | 2pair |
| Open delay time | 1-600 seconds adjustable |
| Maximum number of connections | No limite |
| Operating temperature | -40 to 70 degrees Celsius |
| Run Humidity | 10-90% RH, non-condensing |
| Weight | 2.1kg |
| Signal output communication format and baud rate | Support LAN,Intranet, fix Ipinternet WAN |
| User registration card qantity | 20,000 cards Permissions, WEBServer Supported |
| Record the number of offline storage | 100,000 records |
| Power failure protection measures | high-speed flash memory design, and never lose data |
| Max distance between reader to the controller | 100 meters, suggest within 80 meters |
| Max distance for the bus line | Depends on network cover area |
| Max distance between controller to the PC | No limite |

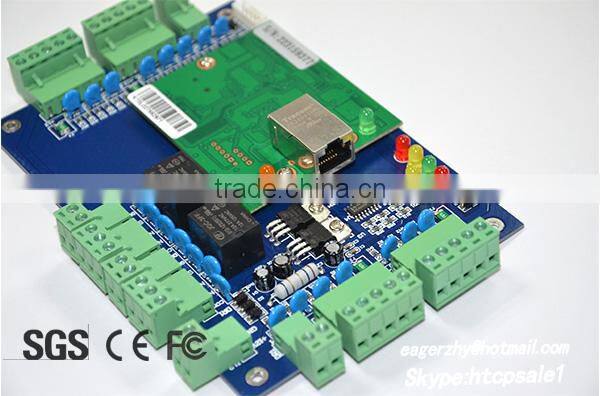

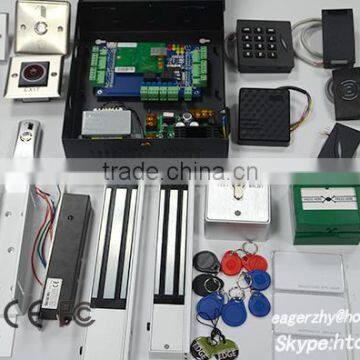

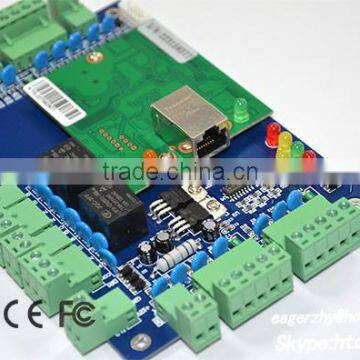

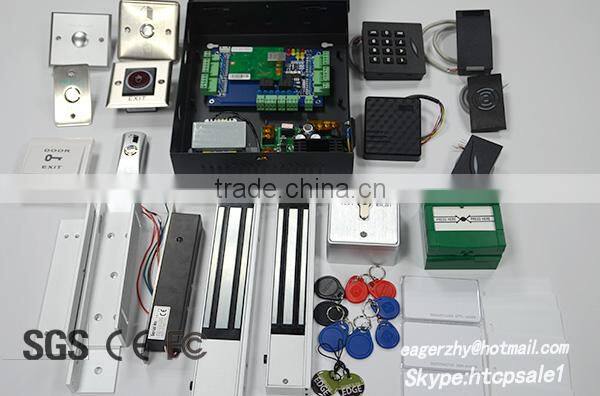

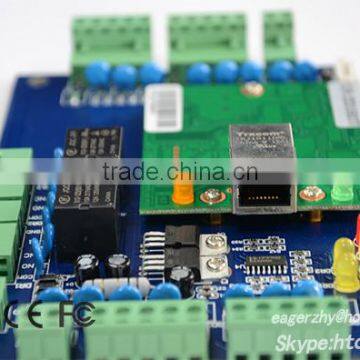

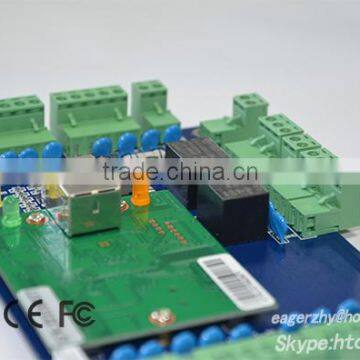

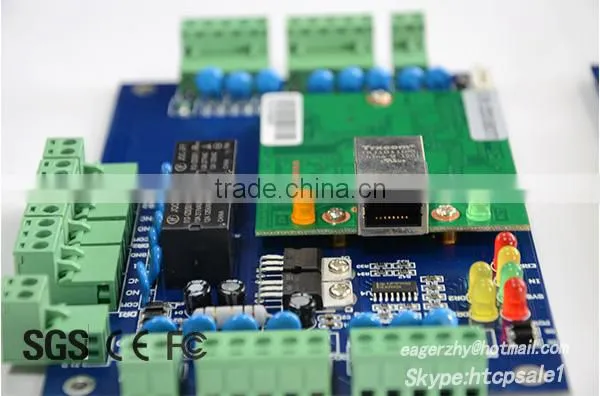

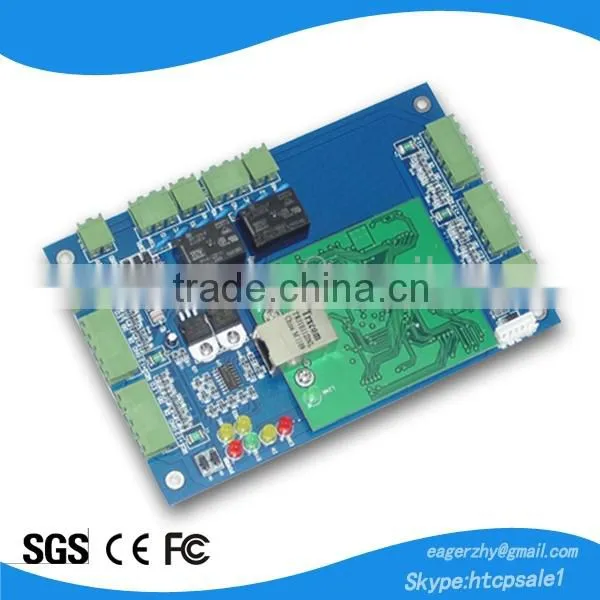

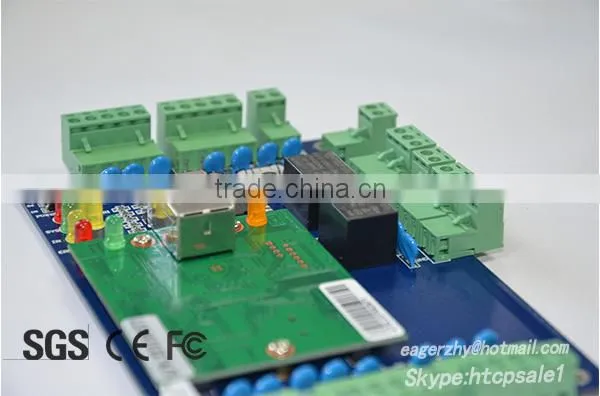

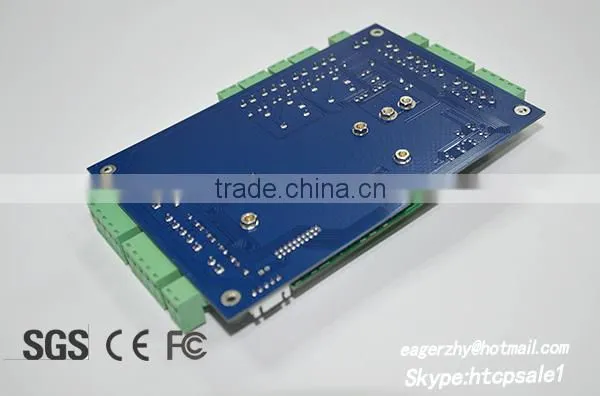

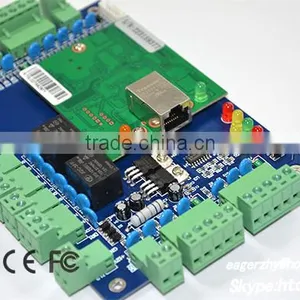

Product Photo

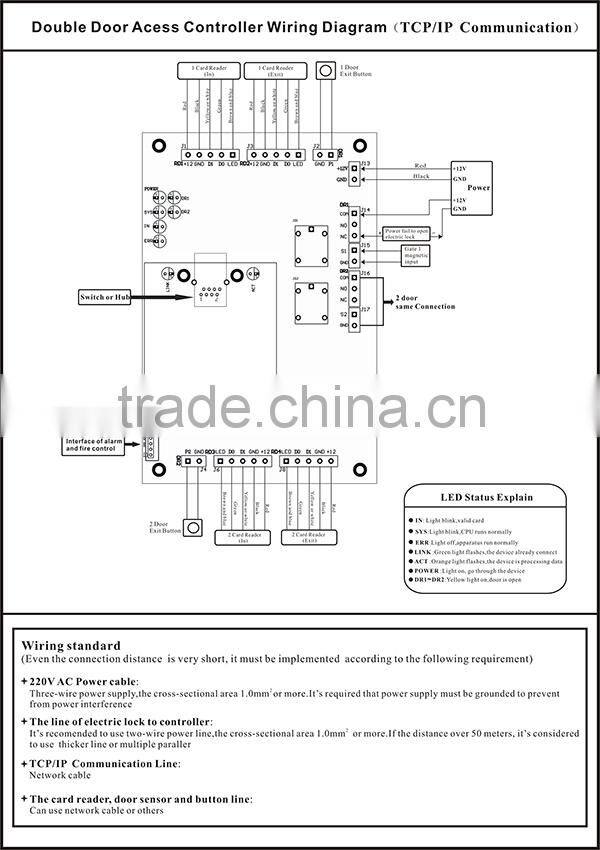

Solution Wiring Diagram
Product Certification
Our Factory
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, ROHS certificates;
The MOQ
We accpet sample and bulk order, usually has No specific request. PLS contact our sales for details.
Payment Method
We accept Bank T/T, Paypal, Westerm Union, moneygram and Escrow.
Shipping Method
1. By Express courier, such as: DHL, Fedex, UPS, TNT, EMS... take about 3-7 days.
2. By Air or Sea shipment for heavy and big goods, take longer time differently.
3. By China post for small package, take about 15-70 days.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
