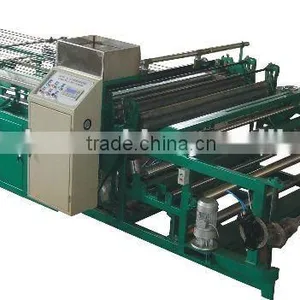

Automatic parallel paper tube machine
- 20 Set / Sets per Month
You May Like
-
Automatic Numerical Control Simultaneous Cutting Parallel Paper Tube Machine
-
Parallel paper tube making machine SKPJ1650
-
Fireworks Shell Wrapping Machine
-
SKPJ1676 Automatic Parallel Paper Core Making Machine with Printing function
-
SKPJ1676 Automatic Parallel Paper Core Winder with Printing function
-
Automatic Parallel Paper Tube Making Machine SKPJ16-20 with Tube Cutter
Product Details
| Product Type | Paper Core Machine | Processing Type | Paper Slitting and Rewinding Machine | |
| Place of Origin | Jiangxi, China | Brand Name | Hengda | |
| Model Number | SKPJ1650 |
Product Description
Specifications
This auto parallel paper tube machine could make industrial paper tubes, ID 16~50mm,tube max length 1820mm with high efficencyParallel paper tube machine SKPJ1650
Technology features:
1. Raising roll paper pattern: electrical machine automatically raises paper
2. Directly make the roll paper into the long paper tube
3. The end of the paper adds the water automatically and will not spring
4. The paper is automatically scraped the glue two times.
5. Vessels of storing and sliding the glue are all adopted the stainless steel plate, endure acid and corrosion
6. All operations are adopted numerical control design-PLC, realize full-auto operation
7. The electrical and pneumatic spare parts are all used the World famous enterprises' products and durable used
8. All the rewinding spare parts which are possible to touch the glue are adopted the wear-resisting alloy copper
9. Realize the unmanned operation
Technology parameter:
Tube inner diameter: 16-50mm
Operation required: 1 person
Tube thickness: 2.5-10mm
Paper thickness/max diameter: 280-550g/1300mm
Tube max length: 1220mm/1820mm
Power: 2.2kw+3*0.75 kw, 220/440/380V, 50/60HZ
Working frequency: 8~12 times/min
Outside dimension: 5380*1580*1300mm
Applicable paper grammage: 280gsm-600gsm
