Specifications
High efficiency automatic parallel paper tube machineSuitable for making fireworks paper tubes, packing tubes and so on

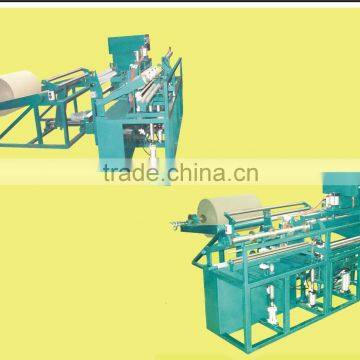

Full-Auto Numerical Control Simultaneous Cutting Parallel Paper Tube Machine SKPJ2051
High efficiency automatic parallel paper tube machine
Suitable for making fireworks paper tubes, packing tubes and so on
Technology features:
1. Raising roll paper pattern: raising paper with electrical machine
2. Directly make the roll paper into paper tube, meanwhile, cut the finished paper tube into the needed length
3. The end of the paper adds the water automatically and will not spring
4. The paper is automatically scraped the glue two times
5. Vessels of storing and sliding the glue are all adopted the stainless steel plate, endure acid and corrosion
6. Low electrical machine power
7. All operations are adopted numerical control design-PLC, realize full-auto operation
8. Electrical and pneumatic spare parts are all used the world famous enterprises' products and durable used
9. All the rewinding spare parts which are possible to touch the glue are adopted the wear-resisting alloy copper
10. Acquire three Chinese national patents
11. Realize the unmanned operation
Technology parameter:
SKPJ2051 Full-Auto Numerical Control Simultaneous Cutting Parallel Paper Tube Machine
Tube inner diameter: 20-51mm Operation required: 1 person
Tube thickness: 3-6mm Paper thickness/max diameter: 230-300g/1100mm
Tube max length:1020mm Power: 2×0.75kw
Working frequency: 9 times/min Outside dimension: 3000*2800*1300mm
