Specifications
Automatic parallel paper core tube machinePLC control
High working efficiency
World most advanced technology

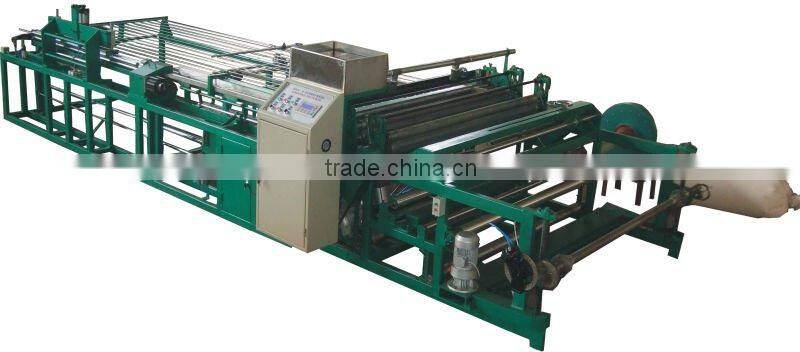

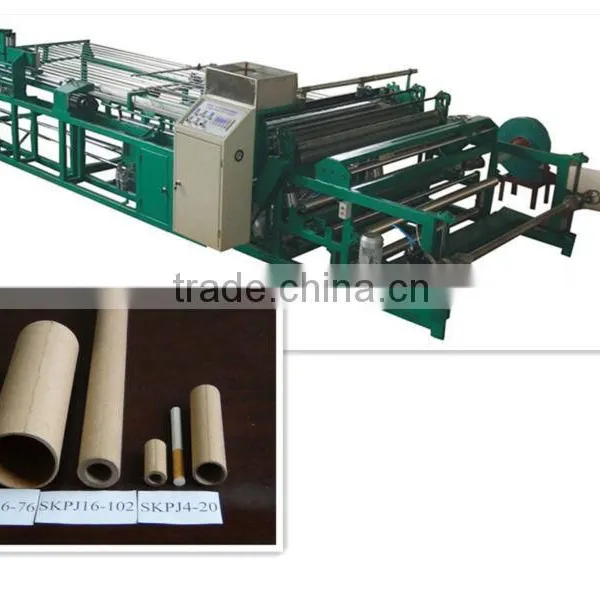

Automatic parallel paper core tube machine SKPJ16-102
Applications:
SKPJ16-102 Automatic Parallel Paper Tube Machine is specially suitable for making thermocouple paper tubes in metallurgy industry and it could also make paper tubes which is used in packing industry to pack precise instrument and also in cloth pack and pencils.
Features:
1, Forming tube's electric motor is adopted Japan's Panasonnic servo motor.
2, The machine is used German Original Siemens' PLC control.
3, The outter circle of the paper tube is adopted paper grinding system to make sealing the outter circle of the paper tube become easier.
4, The outter circle of the paper tube is adopted automatically water spraying system to make seal the outter circle of the paper tube easy.
5, The machine is adopted Tai wan's Delta inverter.
6, The forming paper tube 's spindle's head and tail's inner diameters are same size.
7, The machine is used electric motor to raising the Jumbo roll.
SKPJ16~102 Automatic Parallel Paper Tube Machine | ||||
| Paper tube inner diameter range | 16-102mm |
|
Operation required |
1 person operate 2 machines |
Paper tube thickness |
2.5-10mm |
Paper thickness/max diameter |
280-550g/1300mm |
|
Paper tube max length |
1220(2520)mm |
Total motor power |
8.32KW(9.62)KW |
|
Working frequency |
12~14times/min |
Outside dimension |
5360(7960)x1840(2530)x1400mm |
|
We are the best choice of automatic parallel paper tube making machine manufacturer! Welcome to visit our factory!
