Help CenterXRNT H.V Current-limiting Series Fuses
Related Products
-
Series Lndoor AC High Voltage Load Break Switch-Fuse Combination ApparatusNegotiableMOQ: 1 Set -
12kv GN30-12 Series Lndoor HV Rotary Disconnect SwitchesNegotiableMOQ: 1 Set
-
12kv GN24-12D Indoor AC High Voltage Disconnect SwitchNegotiableMOQ: 10 Sets
-
35kv GN27-40.5 Series Indoor High Voltage Disconnect SwitchNegotiableMOQ: 1 Set
-
10kv GW9 Outdoor High Voltage Disconnect SwitchNegotiableMOQ: 1 Set
Specifications
used in indoor system of 50Hz and rated voltage of 12KV,24KV,36KVSPECIFICATION
This products can be used in indoor system of 50Hz and rated voltage of 12KV,24KV,36KV. It can be used together with other switch facilities such as loading switches, vacuum contactors. It can protect electric transformers ad other electric facilities against overload or circuit breaker. It is also a necessary equipment for high voltage switch box, circular circuit cabinet high / low voltage top-loading transformer substation.

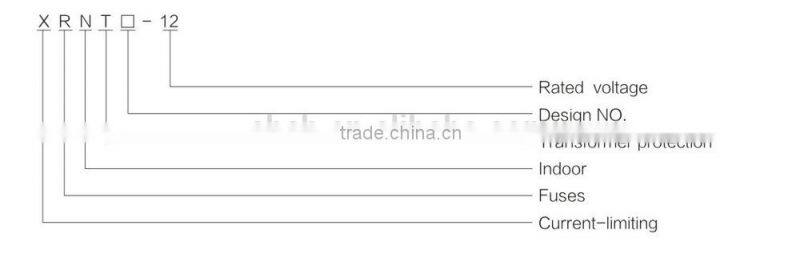

MODEL IMPLICATION
TECHNICAL SPECIFICAION
Type |
Counterpart |
Rated voltage |
Rated current of the fuse (A) |
Rated current of the fuselink (A) |
XRNT-12 |
SDLAJ |
12 |
40 |
3.15,.3,10K16,20,25,31.5,40 |
XRNT-12 |
SDLAJ |
12 |
100 |
50,63,71,80,100,(125) |
XRNT-12 |
SDLAJ |
12 |
125 |
125,160,200,250 |
XRNT-24 |
|
24 |
200 |
3.15,.3,10,16,20,25,31.5,40, 50,63,80,100,125,160,200 |
XRNT40.5 |
|
40.5 |
125 |
3.15,.3,10,16,20,25,31.5,40, 50,63,80,100,125,160,200 |

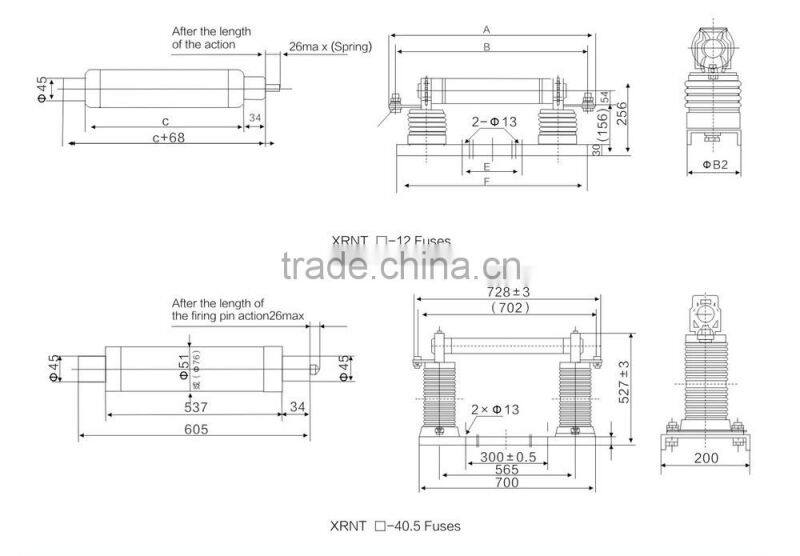

OVERALL DIMENSION
