Help Center35kv GN27-40.5 Series Indoor High Voltage Disconnect Switch
Related Products
-
10kv GW9 Outdoor High Voltage Disconnect SwitchNegotiableMOQ: 1 Set -
FZN25-12D Series Indoor High Voltage Vacuum Load SwitchNegotiableMOQ: 1 Set
-
JN15 Series Indoor AC High Voltage Earthing SwitchNegotiableMOQ: 10 Sets
-
JN22-40.5/31.5 Series Indoor AC High Voltage Earthing SwitchNegotiableMOQ: 1 Set
-
ZW10-12XDG Series Outdoor High Voltage Dual Power Switch DeviceNegotiableMOQ: 1 Set
SPECIFICATION
GN27-40.5 indoor high voltage disconnect switch is an indoor electric apparatus used in rated voltage 35KV, three-phase AC 50HZ system. It used for connect and switch the circuit with voltage without load.
This disconnect switch equipped with CS6-2 manual/handle operating mechanism, D series equipped with CS6-1 manual/handle operating mechanism.
AMBIENT CONDITION
1. Altitude: ≤1000M
2. Ambient temperature : -25C----+40C
3. Relative humidity: daily average ≤95%, monthly average≤ 90%
4. Earthquake intensity: ≤ degree 8.
5. Application occasions should free from fire, inflammables, explosives, corrosives and severe vibration .
6. Steam pressure: daily average ≤2/2*10-3MPa, monthly average ≤1.8*10-3MPa.

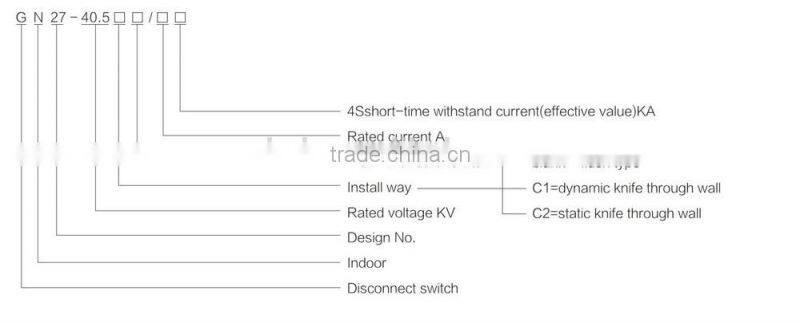

MODEL IMPLICATION
TECHNICAL SPECIFICATION
Model |
Rated voltage(KV) |
Max. voltage (KV) |
Rated Current(A) |
Rated peak withstand current(KA) |
4s short-time withstand current KA |
GN27-35(C)(D) /630 |
35 |
40.5 |
630 |
20 |
50 |
GN27-35(C)(D)/1250 |
1250 |
31.5 |
80 |
||
GN27-35(C)(D)/2000 |
2000 |
40 |
100 |

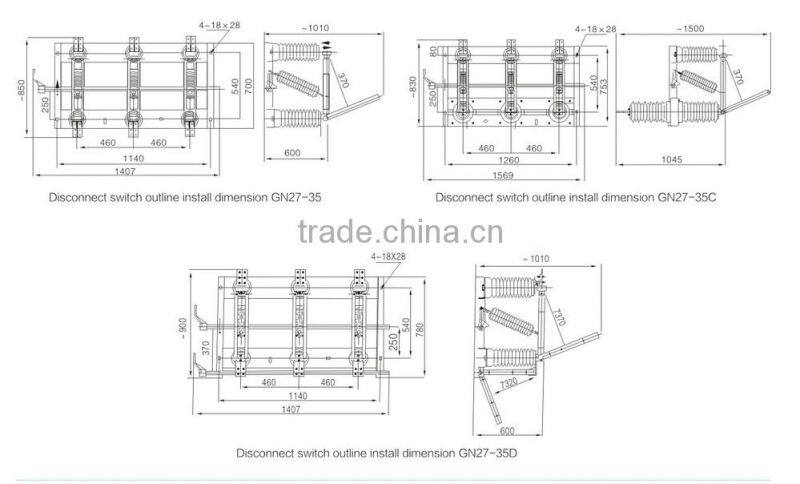

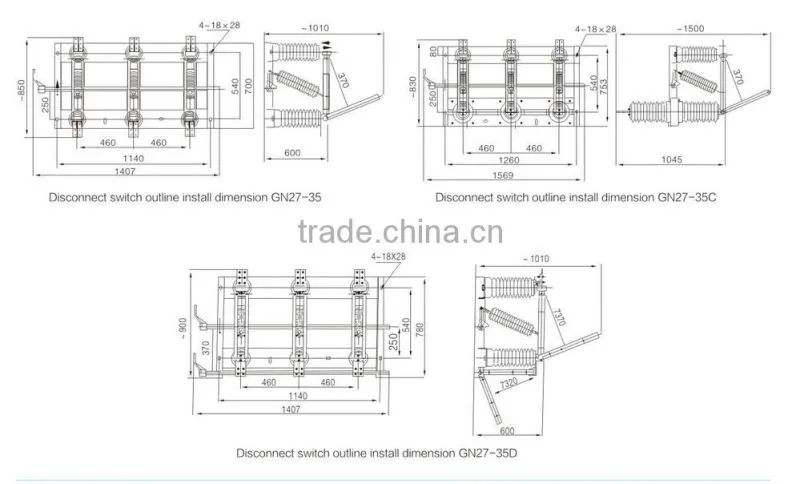

OVERALL DIMENSION
