Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > 10kv GW9 Outdoor High Voltage Disconnect Switch

10kv GW9 Outdoor High Voltage Disconnect Switch

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

GW9

Contact Supplier Request Quote Chat Now

Wenzhou Shouke Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number GW9

SPECIFICATION

The GW9 outdoor high voltage disconnect switch is a type of HV electric apparatus of rated voltage 10KV, 15KV, 24KV, is used to break and make circuit under no-load.

This series disconnect switch meet GB1985 (AC HIGH-VOLTAGE DISCONNECTOR AND EARTHING SWITCH),IEC60129(AC HIGH-VOLTAGE DISCONNECTOR AND EARTHING SWITCH)and GB/T1022 (COMMON SPECIFICATIONS FOR HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR STANDARDS)etc standard rules.

AMBIENT CONDITION

1. the altitude: Under 1000m

2. the ambient temperature:-30C---+40C,alpine region,-40C;

3. Application occasions should free from fire, inflammables, explosives, corrosives ande severe vibration.

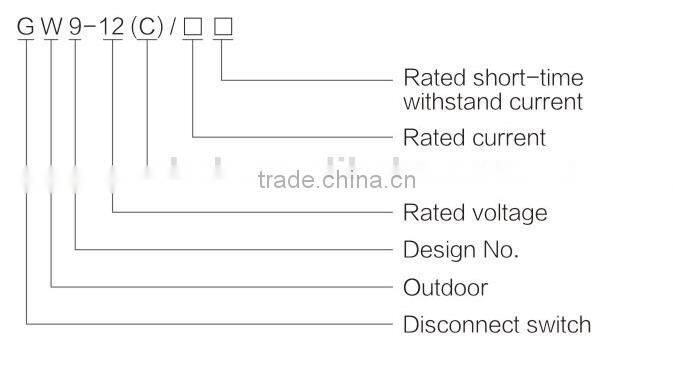

MODEL IMPLICATION

TECHNICAL SPECIFICATION

Item			Units	Parameters
Rated Voltage			KV	10		15		24
Rated work voltage			KV	12		17.5
Rated insulation level	1min frequency withstand	To earth	KV	42		55		65
		Open contacts	KV	48		65		79
	Lightning impulse withstand	To earth	KV	75		105		125
		Open contacts	KV	85		120		145
Rated frequency			HZ	50
Rated current			A	200	400	630	1250	400	630
Rated short-time withstand current(4s)			KA	6.3	12.5	20	31.5	16	20
Rated peak withstand current			KA	16	31.5	50	80	40	50
Creepage distance			mm	300		380
Life			Times	2000		2000		2000
