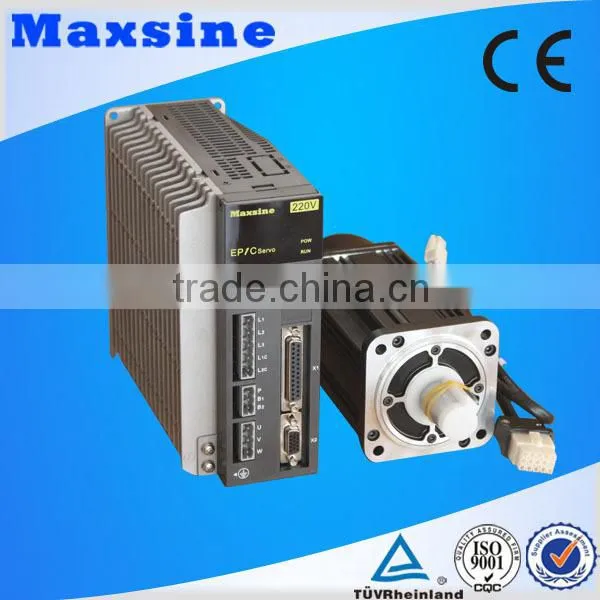

Pulase Control ac Servo Amplifier and Servo Motor

Pulase Control ac Servo Amplifier and Servo Motor thumbnail-1
Pulase Control ac Servo Amplifier and Servo Motor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Maxsine
Model Number:
80MSL2430F&EP1C-TL10F
Type:
Servo Motor
Contact Supplier Request Quote Chat Now
Wuhan Maxsine Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Maxsine
Model Number 80MSL2430F&EP1C-TL10F
Type Servo Motor
Frequency 50HZ
Output Power 750W
Protect Feature Waterproof
Phase Three-phase
Certification Other, ISO, CE; ISO
AC Voltage 208-230 / 240 V
Place of Origin Hubei, China
Efficiency IE 3

Specifications

1' external brake resistor
2' DC Reactor terminals
3' USB communication interfaces
4' Set parameter by Servo Software

Production Description of Servo Motor and Servo Driver
pulase control ac servo amplifier and servo motor

  • All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

  • Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm

  •                                                                   and power from 50w to 7.2kw.

Introduction of  Servo Motor 80MSL02430F



Name servo motor
Model 80MSL02430F
Rated Power 750w
Rated Line Voltage 3 phase 220VAC
Rated Line Current 3.0A
Rated Speed 3000rpm
Rated Torque 2.39Nm
Peak Torque 7.1Nm
Rotor Inertia 2.4*10-4 kg·m2
Lines of Encoder 2500ppr
Motor Insulation Class ClassB(130°C)
Operating Environment

Temperature: -20°C ~ +50°C;

humidity: relative humidity (RH)<90%

(not including condensing condition)







Introduction of EP1C Specification



Model TL05F TL10F TL15F TL25F TL35F TL55F
Input Power    3-phase AC220V     -15% ~ +10%         50/60Hz
Environment Temperature  Working: 0°C~ 40°C             Storing: -40°C~ 50°C
Humidity    Working:40% ~ 80%(non condensing)       Storing:under 93%(non condensing )
Atmospheric Pressure    86kPa ~ 106 kPa
Protection Level    IP20
Control Mode    vector control
   Regenerative Braking    Built-in/Built-out
Feedback Mode    2500 line incremental encoder,encoder with fewer lines
Control Mode    Position
Digital input 5 Programmable input terminals(Optical Isolation) Function:SRVON ,ACLR ,CW Drive inhibition,CCW Drive inhibition,CW Torque inhibition,CCW Torque inhibition,Emergency Stop,Electronic gear selection 1,electronic gear selection2,Position deviation clear,pulse input inhibition
Digital Output 3 Programmable input terminals(Optical Isolation) Function:SRDY ,alarm,Finish Orientation Output ,Reach Speed ,electro-magnetic brake,Torque restrictions
Signal Output of encoder Signal Types A,B,Z Differential output,Z signal open-collector output
Position Input Frequency differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
instruction mode Pulse+Signal,CCW Pulse/CW Pulse, orthogonal Pulse
Electronic Gear Ratio    1 ~ 32767/1 ~ 32767
Surveillance Function Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function Overspeed,Overvoltage,Overcurrent,Overload,Abnormal of main Power,Abnormal Encoder,out of tolerance etc.
Feature Speed Frequency Response    ≥300Hz
Speed Fluctuation Rate    <±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
Speed Ratio 1:5000





Introduction of EP1C-TL10F

pulase control ac servo amplifier and servo motor




EP1C Size

pulase control ac servo amplifier and servo motor


pulase control ac servo amplifier and servo motor

Details show

pulase control ac servo amplifier and servo motor



pulase control ac servo amplifier and servo motor



pulase control ac servo amplifier and servo motor



pulase control ac servo amplifier and servo motor



pulase control ac servo amplifier and servo motor

Application
  • CNC industry
  • Textile industry
  • Robot industry
  • Paper making industry
  • Industrial spring machine
  • Printing and packaging industry
  • Mechanical spring machine industry

Shipping
  1. EXPRESS(sample): around 5-7 working days to arrive
  2. EXPRESS: around 3 weeks to arrive
  3. Ocean carriage: usually less than 2 months
Payment
  1. Wire Transfer
  2. Western Union
  3. Paypal
Certification

pulase control ac servo amplifier and servo motor



pulase control ac servo amplifier and servo motor

Packing
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
