Ac Servo Motor With Incremental Encoder and Driver

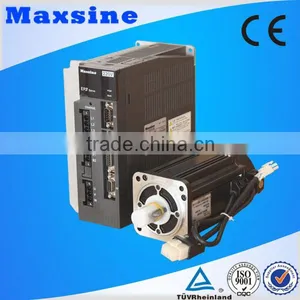

Ac Servo Motor With Incremental Encoder and Driver thumbnail-1
Ac Servo Motor With Incremental Encoder and Driver photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Maxsine
Model Number:
80MSL04025F&EP3-GL7A5
Type:
Servo Motor
Contact Supplier Request Quote Chat Now
Wuhan Maxsine Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Maxsine
Model Number 80MSL04025F&EP3-GL7A5
Type Servo Motor
Frequency 50Hz
Output Power 1000w
Protect Feature Waterproof
Phase Three-phase
Certification CE, Other, CE, ISO, TUV, BV; ISO
AC Voltage 208-230 / 240 V
Place of Origin Hubei, China
Efficiency IE 3

Specifications

1'with USB communication interfaces
2'sustaining Modbus agreement
3'with simple PLC function
4'strong overload capacity

Production Description of Servo Motor and Servo Driver
Ac servo motor with incremental encoder and driver

  • All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

  • Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm

  •                                                                   and power from 50w to 7.2kw.





Introduction of  Servo Driver 80MSL04025F



Name servo motor
Model 80MSL04025F
Rated Power 1000w
Rated Line Voltage 3 phase 220VAC
Rated Line Current 4.4A
Rated Speed 2500rpm
Rated Torque 4.00Nm
Peak Torque 12.0Nm
Rotor Inertia 3.5*10-4 kg·m2
Lines of Encoder 2500ppr
Motor Insulation Class ClassB(130°C)
Operating Environment

Temperature: -20°C ~ +50°C;

humidity: relative humidity (RH)<90%

(not including condensing condition)







Introduction of EP3-GL7A5

Ac servo motor with incremental encoder and driver



Introduction of EP3 Size

Ac servo motor with incremental encoder and driver

Ac servo motor with incremental encoder and driver



Introduction of EP3 Specification



Model GL 7A5
Rated output Power(kW) 1.0
Rated output current(A) 7.5
Input power Main supply 3-phase 220VAC -15%~+10% 50/60Hz
Control supply 1-phase 220VAC-15%~+10% 50/60Hz
Environment Temperature Working:0°C~ 40°C Storing:-40°C~ 50°C
Humidity Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing )
Atmospheric Pressure 86kPa ~ 106 kPa
Control Mode vector control
Regenerative Braking Built-in/built-out
Feedback Mode 2500 line incremental encoder or 17 bit absolute encoder
Control Mode Position, speed, torque, position/ speed,speed/torque,position/torque
Digital input 5 Programmable input terminals(Optical Isolation)
Digital Output 3 Programmable input terminals(Optical Isolation)
Position Input Frequency differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
instruction mode Pulse+Signal,CCW Pulse/CW Pulse, Two-phase A/ orthogonal Pulse
Electronic Gear Ratio 1 ~ 32767/1 ~ 32767
Speed Simulation command input -10V ~ +10V,input impedance10kΩ
Instructions Acceleration And Deceleration Parameters set
Instructions source analog,Internal speed instructions
Torque Simulation command input -10V ~ +10V,input impedance10kΩ
Speed restriction Parameters set
Instructions source analog,Internal torque instructions
Special Functions ZRN ,Gain switch,mechanical resonance wave trap, sustaining Modbus agreement
Surveillance Function Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function Overspeed,Overvoltage,Overcurrent,Overload,Abnormal brake,Abnormal Encoder,out of tolerance etc.
Feature Speed Frequency Response ≥300Hz
Speed Fluctuation Rate <±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
Speed Ratio 1:5000




Details show

 Ac servo motor with incremental encoder and driver



Ac servo motor with incremental encoder and driver





Ac servo motor with incremental encoder and driver

Application
  • CNC industry
  • Textile industry
  • Robot industry
  • Paper making industry
  • Industrial spring machine
  • Printing and packaging industry
  • Mechanical spring machine industry

Shipping
  1. EXPRESS(sample): around 5-7 working days to arrive
  2. EXPRESS: around 3 weeks to arrive
  3. Ocean carriage: usually less than 2 months
Payment
  1. Wire Transfer
  2. Western Union
  3. Alibaba B2B Credit Card
Certification
Ac servo motor with incremental encoder and driver

Packing
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
