Home > Electrical & Electronics > Variable-Frequency Drive > 4nm ac Brushless Motor and Servo Driver

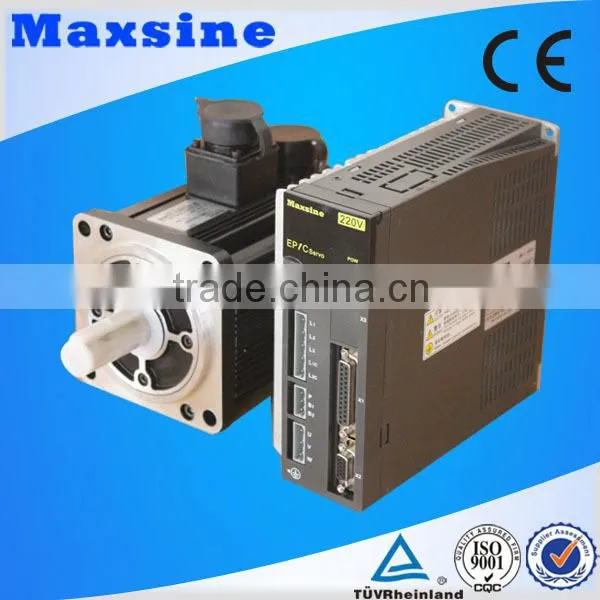

4nm ac Brushless Motor and Servo Driver

Name: 4nm ac Brushless Motor and Servo Driver
Brand: Maxsine
SKU: 118972053
Availability: InStock

4nm ac Brushless Motor and Servo Driver thumbnail-1

4nm ac Brushless Motor and Servo Driver photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

Maxsine

Model Number:

110MSL04020F&EP1C-TL10F

Contact Supplier Request Quote Chat Now

Wuhan Maxsine Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name Maxsine

Model Number 110MSL04020F&EP1C-TL10F

Motor Type AC Motor

Specifications

1' 2500 ppr TAMAGAWA encoder
2' low power
3' easy to operate
4' easy maintenance
5' wide application

Production Description of Servo Motor

All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm
and power from 50w to 7.2kw.

Name	servo motor
Model	110MSL04020F
Rated Power	800w
Rated Line Voltage	3 phase 220VAC
Rated Line Current	3.5A
Rated Speed	2000rpm
Rated Torque	4.0Nm
Peak Torque	12.0Nm
Rotor Inertia	0.54*10^-3 kg·m²
Lines of Encoder	2500ppr
Motor Insulation Class	ClassB(130°C)
Protection Level	IP65
Operating Environment	Temperature: -20°C ~ +50°C; humidity: relative humidity (RH)<90% (not including condensing condition)

Introduction of EP1C Models

Introduction of EP1C Size

size/model	TL10F
A	180
B	75
C	168
D	158
E	65

Introduction of EP1C Specification

Model			TL05F	TL10F	TL15F	TL25F	TL35F	TL55F
Input Power			3-phase AC220V -15% ~ +10% 50/60Hz
Environment	Temperature		Working: 0°C~ 40°C Storing: -40°C~ 50°C
	Humidity		Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing )
	Atmospheric Pressure		86kPa ~ 106 kPa
Protection Level			IP20
Control Mode			vector control
Regenerative Braking			Built-in/Built-out
Feedback Mode			2500 line incremental encoder,encoder with fewer lines
Control Mode			Position
Digital input			5 Programmable input terminals(Optical Isolation) Function:SRVON ,ACLR ,CW Drive inhibition,CCW Drive inhibition,CW Torque inhibition,CCW Torque inhibition,Emergency Stop,Electronic gear selection 1,electronic gear selection2,Position deviation clear,pulse input inhibition
Digital Output			3 Programmable input terminals(Optical Isolation) Function:SRDY ,alarm,Finish Orientation Output ,Reach Speed ,electro-magnetic brake,Torque restrictions
Signal Output of encoder			Signal Types	A,B,Z Differential output,Z signal open-collector output
Position		Input Frequency	differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
		instruction mode	Pulse+Signal,CCW Pulse/CW Pulse, orthogonal Pulse
		Electronic Gear Ratio	1 ~ 32767/1 ~ 32767
Surveillance Function			Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function			Overspeed,Overvoltage,Overcurrent,Overload,Abnormal of main Power,Abnormal Encoder,out of tolerance etc.
Feature		Speed Frequency Response	≥300Hz
		Speed Fluctuation Rate	<±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
		Speed Ratio	1:5000
