Specifications
1.type:PVC Lab High Speed Mixer2.volume:100L
3.speed:1300rpm
4.motor:7kw
5.CE certification
PVC Lab High Speed Mixer
Feature:
Used for the processes of mixing, drying and coloring in the industries of plastic, rubber, chemical
1. It is used in mixing, drying, coloring and other industrial art, it is an ideal equipment for equipment for producing profiles & pipe.
2. Its heating mixing has self-friction, electric heating.
3. Two layers of sealing is adopted in the pot cover. Pot cover of cooling machine adopts arch cover, which can avoid deforming.
4. They have passed of the test of dynamic balance and static equilibrium.
PVC Lab High Speed Mixer --chart:

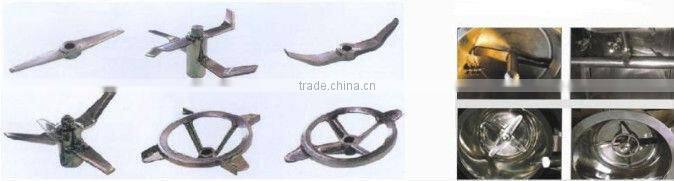

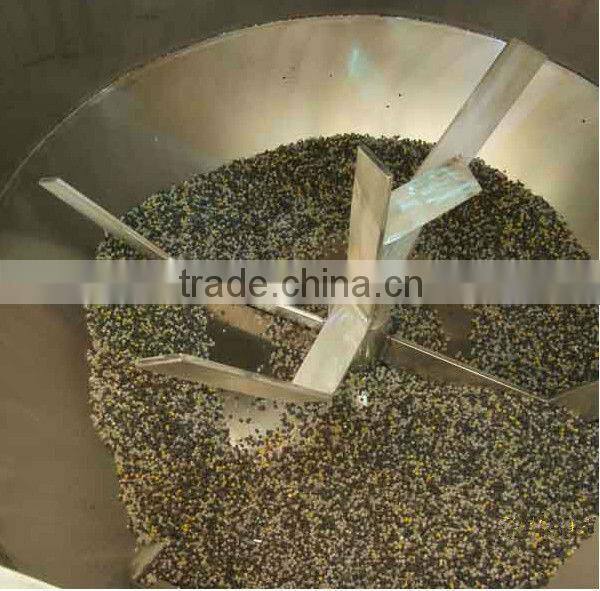

PVC Lab High Speed Mixer ---paddles:
PVC Lab High Speed Mixer --- -Technical data:
Model |
SRL-Z100/200 |
SRL-Z200/500 |
SRL-Z300/600 |
|
Total volume(L)
|
100/200 |
200/500 |
300/600 |
|
Effective capacity (L)
|
65/130 |
150/320 |
225/380 |
|
Stirring speed(rpm)
|
650 /1300/200 |
475/950/130 |
475/950/100 |
|
Mixing time(min)
|
8-12 |
8-12 |
8-12 |
|
Motor power(KW)
|
14/22/7.5 |
30/42/11 |
40/55/11 |
Overall dimension(mm) |
1950*1600*1800 |
4580*2240*2470 |
4800*2640*2480 |
Weight(kg) |
3200 |
3500 |
3800 |

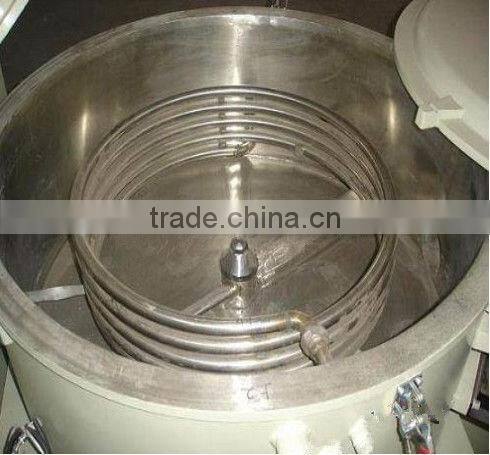

PVC Lab High Speed Mixer -cooling mixer machine:

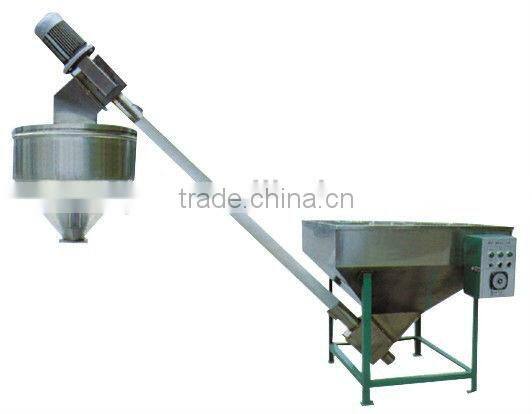

Auto feeder/loader:
If you are interested in our high speed plastic mixer , please do not hesitate to contact us.
Hope we can succeed in cooperation and establish a long term business relationship.
Best regards.
