Specifications
1.type:high speed pvc hot cooling mixer2.volume:500/1000L
3.speed:475rpm
4.motor:30kw
5.CE certification
high speed pvc hot cooling mixer
Feature:
1. The upper set is for hotting, and the lower one is for cooling;
2. We also can use the variable-frequency motor as your needs;
3. Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.
4. The container:
A. The interior is made of stainless steel with polished finish;
B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
C. The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;

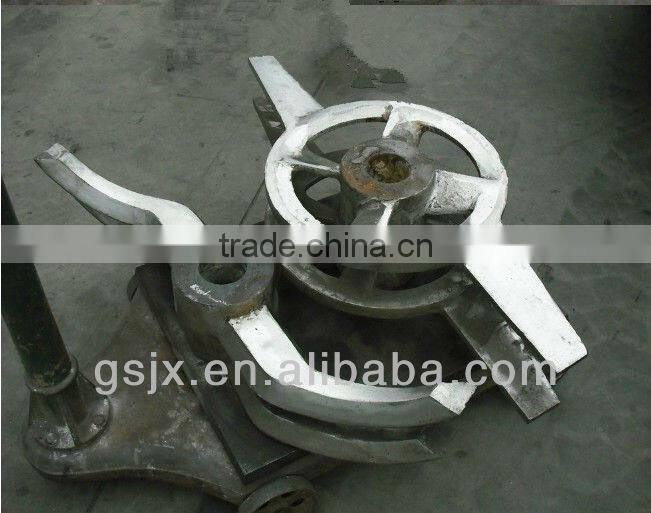

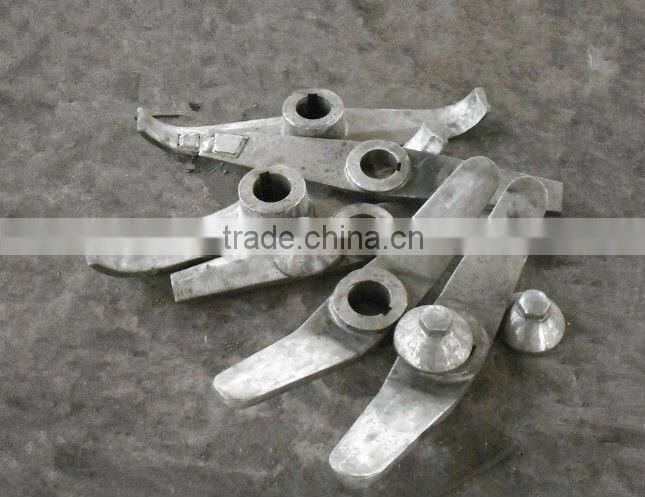

D. The paddle is made of stainless steel in the structure of top, center and bottom;
E. Temperature measuring equipment (TME) in the interior wall of the container;

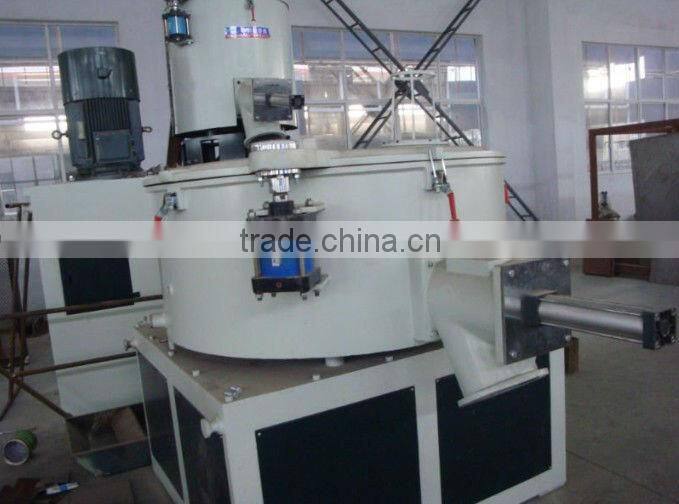

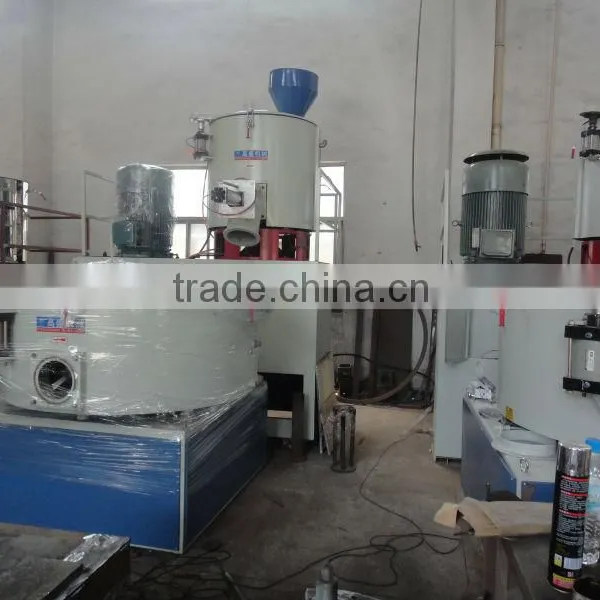

high speed pvc hot cooling mixer--picture:
high speed pvc hot cooling mixer--- Technical data:
Model |
SRL-Z100/200 |
SRL-Z200/500 |
SRL-Z300/600 |
SRL-Z500/1000
|
SRL-Z800/1600
|
|
Total volume(L)
|
100/200 |
200/500 |
300/600 |
500/1000 |
800/1600 |
|
Effective capacity (L)
|
65/130 |
150/320 |
225/380 |
375/650 |
600/1050 |
|
Stirring speed(rpm)
|
650 /1300/200 |
475/950/130 |
475/950/100 |
430/860/50 |
370/740/50 |
|
Mixing time(min)
|
8-12 |
8-12 |
8-12 |
8-15 |
8-15 |
|
Motor power(KW)
|
14/22/7.5 |
30/42/11 |
40/55/11 |
55/75/15 |
83/110/22 |
|
Overall dimension (mm) |
1950*1600*1800 |
4580*2240*2470 |
4800*2640*2480 |
5600*3000*3100 |
5170*3200*4480 |
|
Weight(kg)
|
3200 |
3500 |
3800 |
6500 |
9800 |
If you are interested in our plastic mixer machine, please feel free to contact us.
Hope we can succeed in cooperation and establish a long term business relationship.
Best regards.
