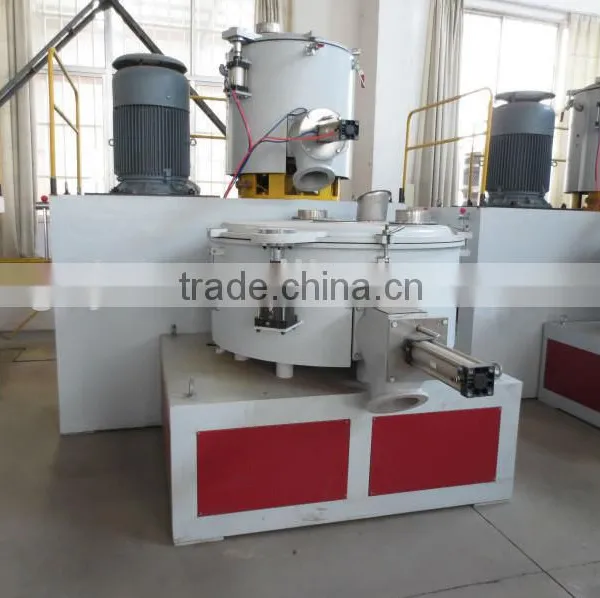

SRL-Z300/600 Plastic Vertical Mixer

Name: SRL-Z300/600 Plastic Vertical Mixer
Brand: Gaosheng SRL-Z300/600 Plastic Vertical Mixer
SKU: 118962291

US$ 3,900 - 19,000 MOQ: 1 Set

Key Specifications

Condition:

New

Mixer Type:

Paddle

Product Type:

Other, plastic mixer

Zhangjiagang Gaosheng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Paddle

Product Type Other, plastic mixer

Application Powder

Additional Capabilities Drying

Place of Origin Jiangsu, China

Brand Name Gaosheng SRL-Z300/600 Plastic Vertical Mixer

Model Number SRL-Z300/600 Plastic Vertical Mixer

Max. Loading Capacity 480L

Voltage 380V 50HZ or customized

Power(W) 22kw

Certification CE

Warranty one year

Specifications

1.type:SRL-Z300/600 Plastic Vertical Mixer
2.total volume:300L
3.power:40/55kw
4.CE certification
5.reasonable price

SRL-Z300/600 Plastic Vertical Mixer

Application & Apply Range:

It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe.

It is heating mixing has self-friction electric heating

Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming

It has features of contact construction, good performance

They have passed the test of dynamic balance and static equilibrium

SRL-Z300/600 Plastic Vertical Mixer--- flow chart:

SRL-Z300/600 Plastic Vertical Mixer --paddles:

SRL-Z300/600 Plastic Vertical Mixer--- data:

Total Volume	Hot Mixer:300L	Cooling mixer:600L
Effective volume	Hot Mixer:225L	Cooling mixer:480L
Thickness and material Of pot wall	Hot Mixer:8mm(1Cr18Ni9Ti)	Cooling mixer:6mm(1Cr18Ni9Ti)
Thickness and material Of pot bottom	Hot Mixer:10mm(1Cr18Ni9Ti)	Cooling mixer:10mm(1Cr18Ni9Ti)
Blade number	Hot Mixer:3pcs	Cooling mixer:1pcs
Blade material	Hot Mixer: stainless steel	Cooling mixer: stainless steel
Blade rotate speed	Hot Mixer:475/950rpm	Cooling mixer:130rpm
Motor power	Hot Mixer:40/55KW	Cooling mixer:11KW
Mixing time	Hot Mixer:8~10min/pot	Cooling mixer:6~8 min/pot
Feeding capacity once	110kg
Mixing capacity	480~550kg/h
Heating mode	Electric heating and friction
Discharging material mode	By pneumatic gas cyclinder
Pot cover turn on method	By pneumatic gas cyclinder
Main electrical apparatus	Jpan Omron temp. controller,Siemens AC contactor
Whisking Blade	Adopt high quality stainless steel casting
Main axes bearing	Adopt high quality Haerbin bearing
Pot cover	Adopt high quality aluminum casting, Adopt two rubber sealing bar, Pot cover opening by pneumatic gas cylinder
