SHR Type Powder High Speed Heating Mixing Unit

Name: SHR Type Powder High Speed Heating Mixing Unit
Brand: Gaosheng SHR type powder high speed heating mixing unit
SKU: 118962285

US$ 3,900 - 19,800 MOQ: 1 Set

Key Specifications

Condition:

New

Mixer Type:

Paddle

Product Type:

Other, granules mixer

Zhangjiagang Gaosheng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Paddle

Product Type Other, granules mixer

Application Powder

Additional Capabilities Drying

Place of Origin Jiangsu, China

Brand Name Gaosheng SHR type powder high speed heating mixing unit

Model Number SHR-500 type high speed powder high speed heating mixing unit

Max. Loading Capacity 320L

Voltage 380V 50HZ high speed plastic rotary mixer

Dimension(L*W*H) 3060*1150*1880mm

Certification CE

Warranty one year

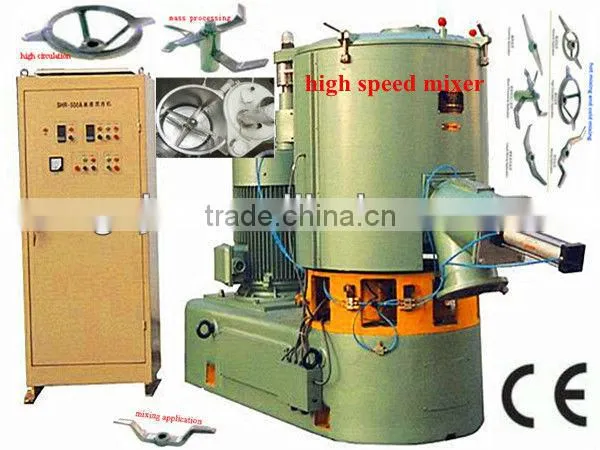

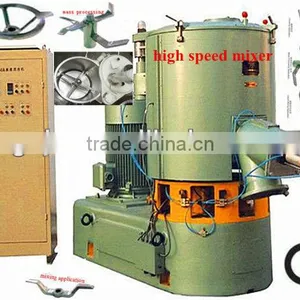

SHR type powder high speed heating mixing unit

Application & Apply Range

It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe.

It is heating mixing has self-friction electric heating

Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming

It has features of contact construction, good performance

They have passed the test of dynamic balance and static equilibrium

SHR type powder high speed heating mixing unit technical data:

Model	SHR-50A	SHR-100A	SHR-200A	SHR-300A	SHR-500A	SHR-800A
Total volume	50L (KG)	100 L (KG)	200 L (KG)	300 L (KG)	500 L (KG)	800 L (KG)
Motor power	7/11KW	14/22KW	30/42KW	40/55KW	47/67KW	60/90KW
Heating method	Electric heating and self-friction heating
Discharging method	Pneumatic and manual
Electrical equipment	Independent electrical control cabinet
