Specifications
plastic pellet heating coloring blending machine1.total volume:100L
2.power:22kw
3.CE certification
4.reasonable price
plastic pellet heating coloring blending machine
Application & Apply Range
It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe.
It is heating mixing has self-friction electric heating
Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming
It has features of contact construction, good performance
They have passed the test of dynamic balance and static equilibrium
SRL-Z series plastic high speed mixer main techncal data:
Vertical type of parameter | |||||
|
Parameter/model
|
SRL-Z50/100A |
SRL-Z100/200A |
SRL-Z200/500A |
SRL-Z300/600A |
SRL-Z500/1000 |
|
Total volume(L)
|
50/100 |
100/200 |
200/500 |
300/600 |
500/1000 |
|
Effective volume(L)
|
37/70 |
75/130 |
150/320 |
225/384 |
375/640 |
|
Oar speed(rpm)
|
510/1013/118 |
650/1300/130 |
484/967/110 |
480/964/100 |
430/830/70 |
|
Motor power(KW)
|
7/11/7.5 |
14/22/11 |
30/42/11 |
40/55/11 |
55/75/15 |
|
Heating & cooling
|
Self-friction/water |
||||
|
Discharge
|
pneumatic |
||||
|
weight(T)
|
2.8 |
3 |
3.5 |
3.8 |
5.8 |
plastic pellet heating coloring blending machine detail information:
Model |
/ |
SRL-Z500/1000 mixer group |
||
Hot mixer | ||||
1 |
total volume of hot mixer |
L |
500 |
|
2 |
effective volume of hot mixer |
L |
375 |
|
3 |
material weight/batch |
kg/batch |
≤160 |
|
4 |
Output |
kg/h |
≤800 |
|
5 |
motor power |
KW |
55/75, double speed motor |
|
6 |
Thickness of wall of barrel (stainless steel 304 ) |
mm |
8 |
|
7 |
Thickness of bottom of barrel (stainless steel 304 ) |
mm |
10 |
|
8 |
hot mixer rotating speed |
r/min |
430-860 |
|
9 |
Quantity of stirring blade |
pcs |
3(1Cr18Ni9Ti) |
|
10 |
mixing time |
min/batch |
8-10 |
|
11 |
Heating method |
Electric heating and self-mixing heating |
||

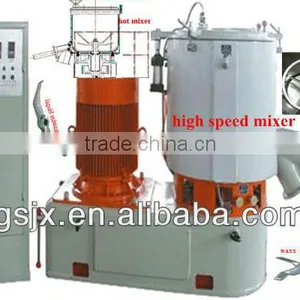

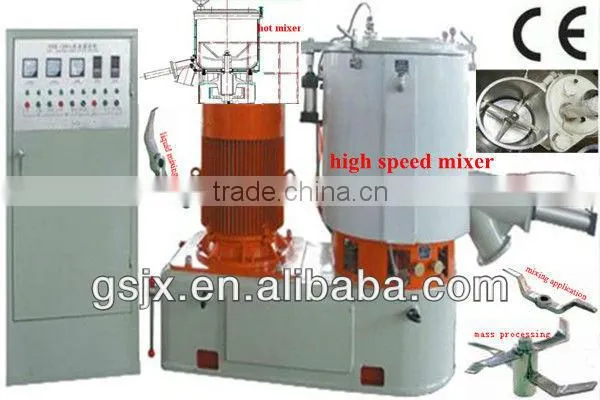

plastic high speed mixer ------heating mixer pictures:
If you are interested in our machines, please do not hesitate to contact us.
Hope we can succeed in cooperation and establish a long term business relation.
Best regards.
