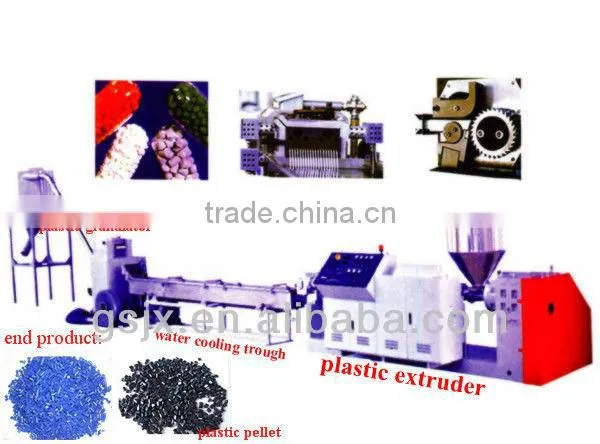

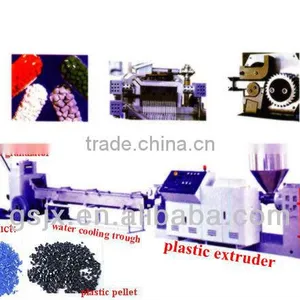

Plastic HDPE PP PE Film Two Stage Extruder
Feature:
1. Conveyor:convey PP PE film or flakes into compactor.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizing machine:cutting pellets in water.
6.Water tank:cooling pellets.
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
Plastic HDPE PP PE Film Two Stage Extruder chart:
Plastic HDPE PP PE Film Two Stage Extruder is consist of the following items:
No. |
Item Name |
Quantity |
1 |
Screw auto loader
|
1 set |
2 |
Single screw Extruder With vacuum degassing With hydraulic screen changer With string die head
|
1 set |
3 |
Water bath |
1 set |
4 |
Air dryer |
1 set |
5 |
Cutting Pelletizer |
1 set |
6 |
Vibrosieve |
1 set |
7 |
Blower + silo |
1 set |
8 |
Electric cabinet |
1set |
Plastic HDPE PP PE Film Two Stage Extruder Technical data:
Model |
GSD-100/100 |
GSD-120/120 |
GSD-150/150 |
GSD-180/180 |
GS-200/200 |
Main extruder | |||||
L/D |
25-30 |
25-30 |
25-30 |
25-30 |
25-30 |
Main motor power(kw) |
45-55 |
55-75 |
75-90 |
90-110 |
160 |
Heating power(kw) |
40 |
45 |
55 |
70 |
90 |
rotation speed (RPM) |
0-120 |
0-120 |
0-110 |
0-110 |
0-110 |
Sub-extruder | |||||
L/D |
10-15 |
10-15 |
10-15 |
8-15 |
8-15 |
Motor power (kw) |
22 |
30 |
37 |
45 |
75 |
Heating power (kw) |
25 |
30 |
35 |
45 |
55 |
Rotation speeed (RPM) |
0-120 |
0-120 |
0-110 |
0-110 |
0-110 |
Output (kg/hr) |
150 |
200-220 |
300-350 |
400 |
500-600 |
Plastic Pellets
FAQ:
•Q:What is your company main product?
A:Plastic granulating machine.
•Q:Are you a factory or trade company?
A:We are a factory.
•Q:Where is your factory located?How can I visit there?
A:Our factory is located in Zhangjiagang city,Jiangsu Province,China,about 2 hours bus ride from Shanghai.All our clients,from home and abroad,are warmly welcome to visit us.
After Service:
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machine ,please feel free to contact us.
Thanks and best regards.
Amy Su
