PP PE Film Plastic Granulating Machine
Main Functions:
1. Recycle the waste materials and leftover bits and pieces of various flexible plastic films, bags, filament, ribbons, pieces, and pipes such as polyvinyl chloride, polyethylene of higher density, and linear polyethylene of lower density, and put them into reproduction.
2. Recycle and reproduce the grinding and granulating of degrading plastic films and angle materials.
3. Grind chemical fiber waste materials, and process the waste filament that has been put into reproductions.
4. The machine is applied in many respects. It can be substitute for blending machine or dryer.
PP PE Film Plastic Granulating Machine --Detailed description :
1. Conveyor:convey PP PE film or flakes into compactor.
2. PP PE film force feeding machine:force feed film chips,rigid scraps into extruder,to make the the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.

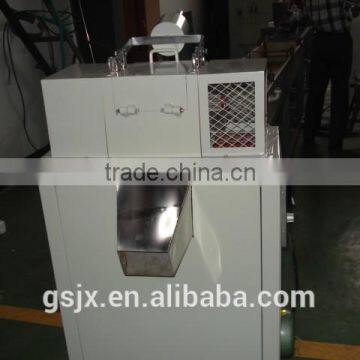

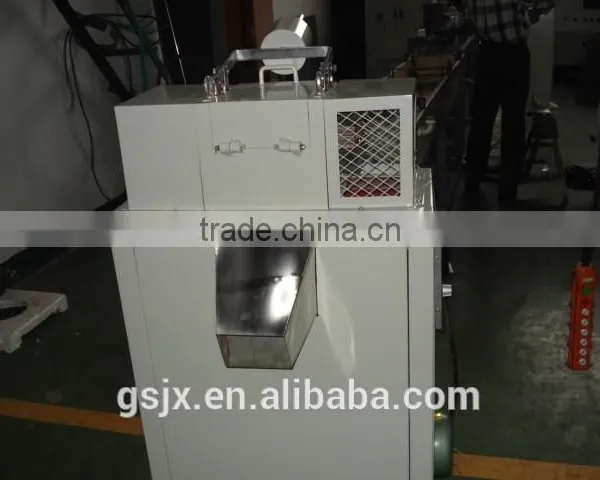

5.water ring pelletizing machine:cutting pellets in water.

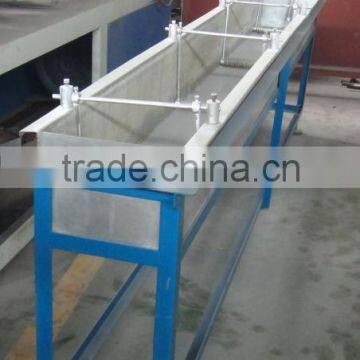

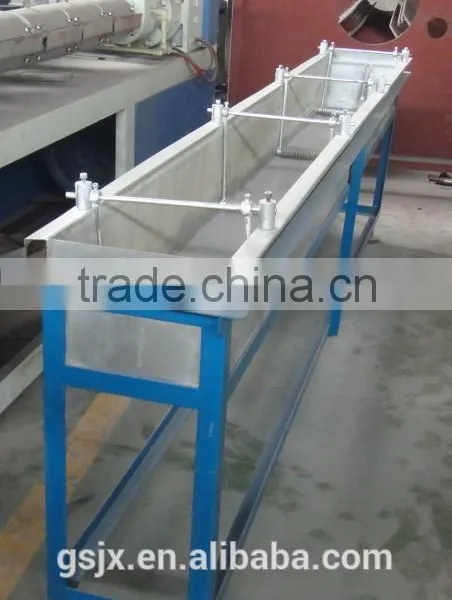

6.Water tank:cooling pellets.
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
PP PE Film Plastic Granulating Machine--data sheet:
|
Model
|
Main extruder Screw diameter |
L/D |
Sub-extruder extruder Screw diameter |
L/D |
Capacity |
Total power |
Line length |
|
SJ100
|
100
|
34:1
|
100
|
10:1 |
200 |
200 |
12 |
|
SJ120
|
120
|
34:1 |
120 |
10:1 |
300 |
300 |
14 |
|
SJ150
|
150
|
34:1 |
120 |
10:1 |
400 |
400 |
16 |
PP PE Film Plastic Granulating Machine Machine-- layout:
the pellet sample:
How to get your suitable machine or production line ?
• Find our products through in Google ,Baidu. Bing ,Yahoo, etc
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1.What kind of products will you produce?Pipe,Plastic profile,or Sheet?
2. What is raw material like?film type or falkes type?
3. What is the capacity of material ?PE,PP,HDPE,LDPE, or other please inform us of details .
4. Sole machine or whole production line .
• Quotation: Prices offered and accepted.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
After Service:
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
Amy Su
