Waste PE PP Film Granule Making Machine
System Configuration
Processing capacity can be 100-600kg/h
Main parts: host machine, oil lubrication system, soft water circulation system, vacuum system, hydraulic screen changer and die, water tank, air knife, pelletizer, electric cabinet etc.
Option auxiliary machines: side feeder, two stage side feeder, spiral conveyor, high speed mixer, vibrating sieve, product silo, automatic packing and sewing system etc.
Advantage: high speed high torque gearbox, rotating speed is up to 600rpm, high output, up to more than 600kg/h.
Waste PE PP Film Granule Making Machine---- include:
1.Conveyor&Metal detector
2.Compaction warehouse.
3.Long screw extruder:38CrMoAlA with nitriding processing
4.Hydraulic change nets equipment
5.Short screw extruder:38CrMoAlA with nitriding processing
6.Pelletizer:Two type----Water-ring Pelletizing Machine or Braces particle cutting machine
7.Dewatering Machine
8.Fan drying machine & Hopper

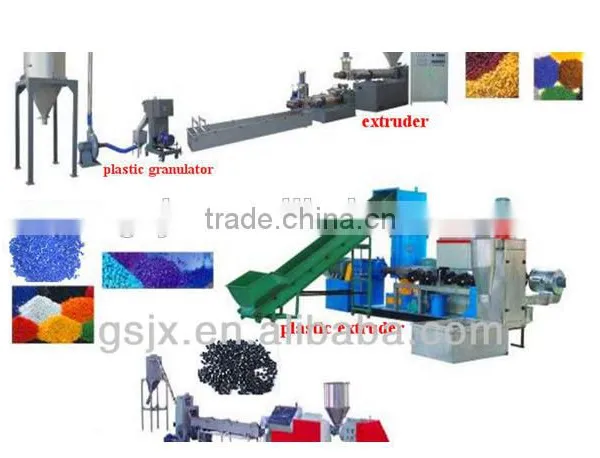

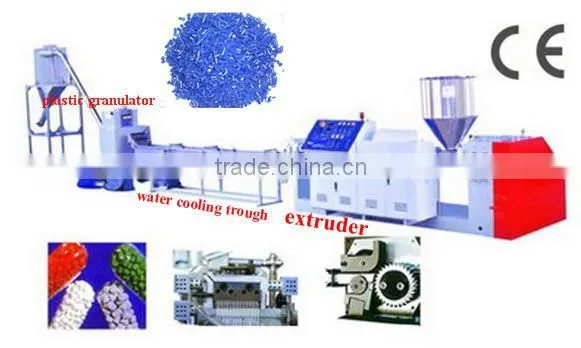

Waste PE PP Film Granule Making Machine -----layout:
Waste PP PE film granule making machine ---- consist of the following items:
No. |
Components |
Qty (set) |
1 |
Belt conveyor
|
1 |
2 |
Cutting compactor
|
1 |
3 |
Single screw extruder
|
1 |
4 |
Double vacuum air vent device
|
1 |
5 |
Double hydraulic screen-changer
|
1 |
6 |
Mould & cutting machine
|
1 |
7 |
Centrifugal dewatering machine
|
1 |
8 |
Vibrating screen
|
1 |
9 |
Blowing&storage silo device
|
1 |
10 |
Electrical Control System
|
1 |
11 |
Spare parts |
1 |
end products:
After Service:
We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
