Waste PP PE Granulating Extruder
Feature:
Plastic Granulating line,recycling PP PE film bags,make them into pellets
Main parts: host machine, oil lubrication system, soft water circulation system, vacuum system, hydraulic screen changer and die, water tank, air knife, pelletizer, electric cabinet etc.
Option auxiliary machines: side feeder, two stage side feeder, spiral conveyor, high speed mixer, vibrating sieve, product silo, automatic packing and sewing system etc.
Advantage: high speed high torque gearbox, rotating speed is up to 600rpm, high output, up to more than 600kg/h.
PP PE Granulating Extruder ----include:
1. Conveyor:convey PP PE film or flakes into compactor.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizing machine:cutting pellets in water.

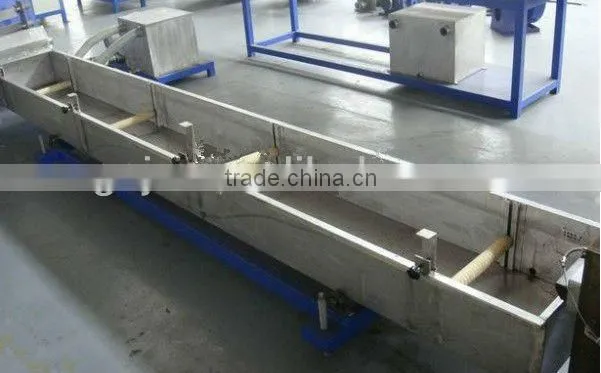

6.Water tank:cooling pellets.
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
Waste PP PE Granulating Extruder ---data sheet:
Model |
L/D |
Output |
Speed of Screw Rotation |
Power |
Center Height |
|
SJ-50/33
|
33:1 |
20-80 kg/h |
12.5-130 r/min |
37kw |
1000 mm |
SJ-65/33 |
33:1 |
80-150 kg/h |
33-130 r/min 20-120r/min |
45kw 55kw |
1000 mm |
|
SJ-75/33
|
33:1 |
120-280 kg/h |
20-120 r/min |
75kw 90kw |
1000 mm |
|
SJ-90/33
|
33:1 |
150-450 kg/h |
33.3-110 r/min |
110kw 160kw |
1000 mm |
SJ-120/33 |
33:1 |
300-600 kg/h |
20-100 r/min |
260kw |
1200 mm |
SJ-150/33 |
33:1 |
450-700 kg/h |
7-80 r/min |
315kw |
1200 mm |
Waste PP PE Granulating Extruder ----layout:

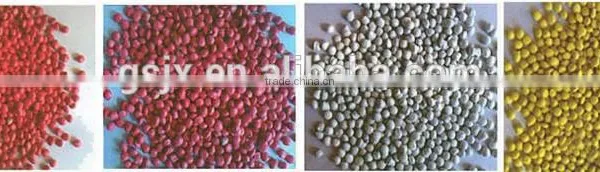

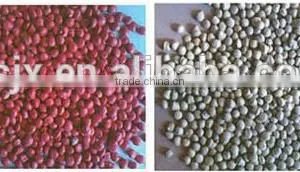

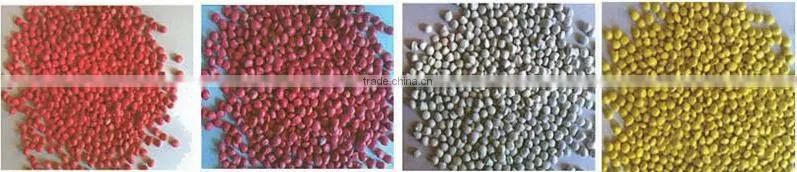

Waste PP PE Granulating Extruder --end product pellet:
After Service:
We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
