Help CenterHigh Plasticizing PVC Water Pipe Production Machine
Related Products
-
160-250mm PVC Pipe Extrusion LineUS$ 41,200 - 98,000MOQ: 1 Set -
PPR PVC Plastic Machine For PipeUS$ 8,900 - 23,000MOQ: 1 Set
-
Small PE PVC Hose MachineUS$ 9,500 - 29,800MOQ: 1 Set
-
Hot Selling 25mm Single Screw ExtruderUS$ 2,700 - 6,100MOQ: 1 Set
-
65mm Extrusion Plastic PipeUS$ 8,600 - 19,800MOQ: 1 Set
Specifications
1.Type:PVC Water Pipe Production Machine2.Capacity:450kg/h
3.Power:325kw
4.Factory
5.CE certification

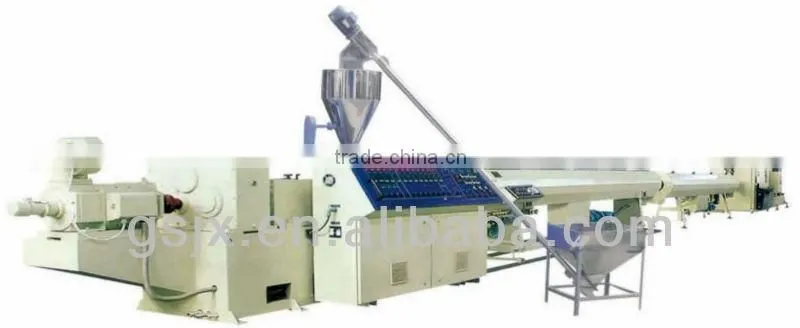

PVC Water Pipe Production Machine
Application:
The extrusion line is special for U-PVC, C-PVC water supply and water drainage pipe, electric conduit pipe, and cable pipe.
PVC Water Pipe Production Machine --data sheet:
Model |
PVC-63 |
PVC-110 |
PVC-160 |
PVC-250 |
PVC-315 |
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
OD RANGE(mm) |
16-63 |
50-110 |
50-160 |
75- 250 |
110-315 |
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
4000 |
5000 |
6000 |
6000 |
6000 |
HAUL SPEED(m/min) |
0.6-8 |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
INSTALLED POWER(kw) |
55 |
75 |
85 |
95 |
125 |
TOTAL LENGTH(mm) |
15000 |
17000 |
18000 |
20000 |
20500 |

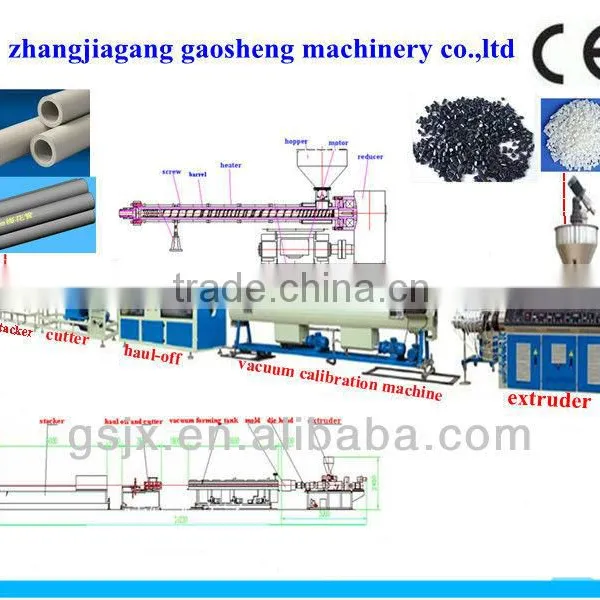

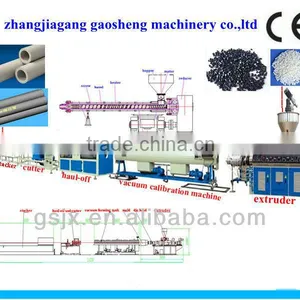

PVC Water Pipe Production Machine--machine list:
1. Automatic feeding and drying system: vacuum sucking up and automatic controlling hot air heating.
2. screw extruder: high speed extruders adopts notched barrel (with water forced cooling transportation zone), shielded screw with special mixing structure ensures the stability of high extruding and the plasticizing quality.
3. Electrical control system: Siemens PLC, ABB converter, Omron temperature controller. The entire production line adopts the originally imported new control system of PLC programmable computer, guaranteed highly and steadily reliable controls of the production line.

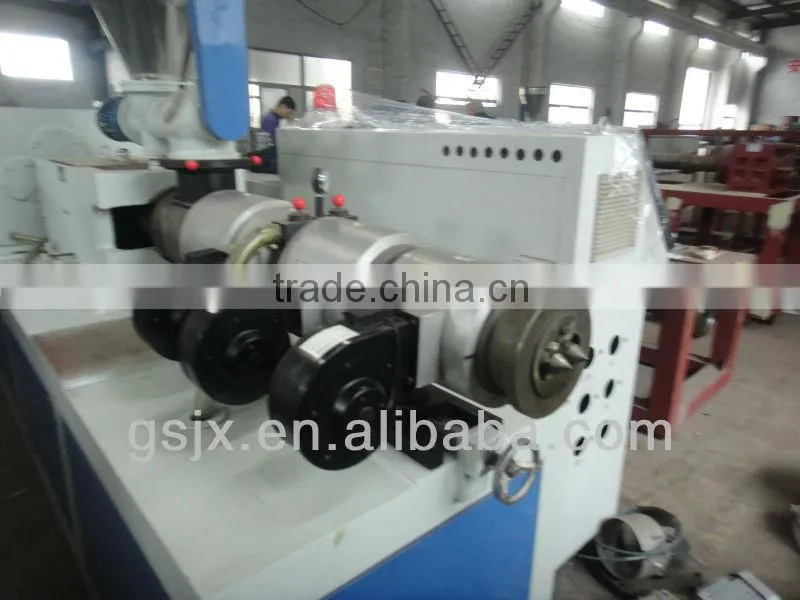

4. Die head: specially structured spiral accumulator-type die head surmounts stress orientation of polymer chain during pipe forming and achieve smooth-pressure extruding, and makes the good physical and chemical properties of raw material be copied into the pipe, meanwhile the stability of the extruding pressure is the strong guarantee for high-speed manufacturing.

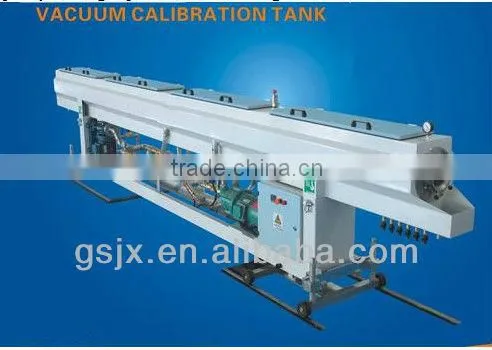

5. Vacuum calibration tank:

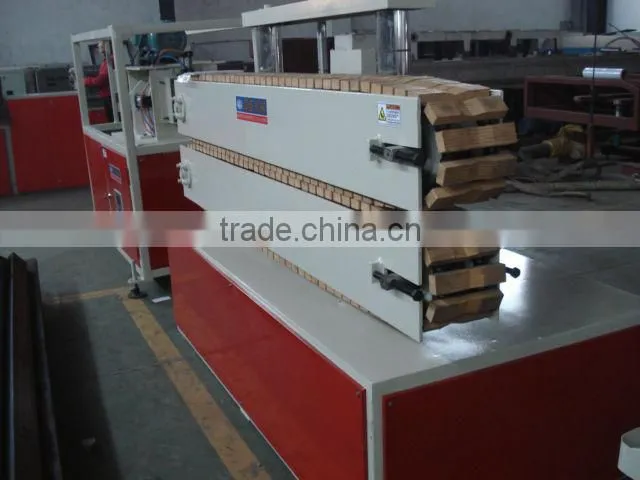

6. Haul-off machine:

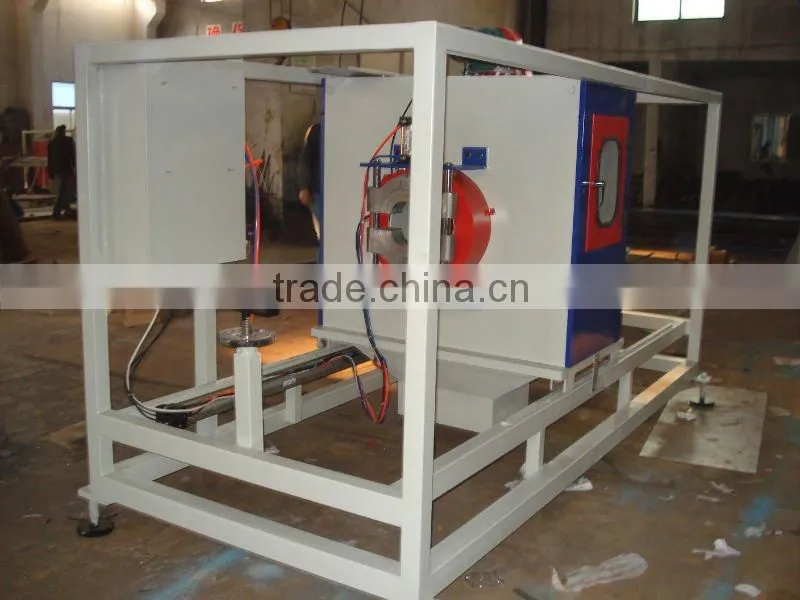

7.Cutter machine

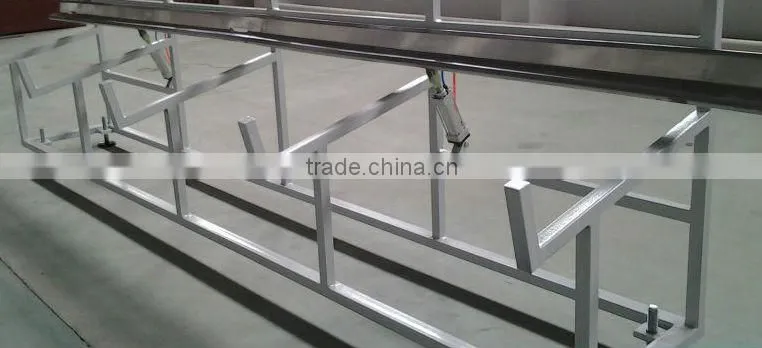

8.Stacker

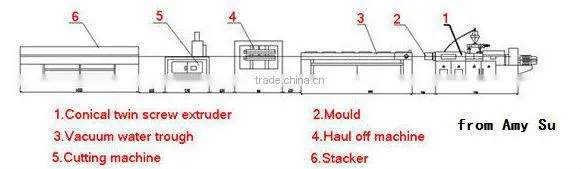

PVC Water Pipe Production Machine--- process flow:
If you are interested in our extruder,please feel free to contact us,we will satisfy you upon receipt your reply.
Thanks and best regards.
Amy Su
zhangjiagang gaosheng machinery co.,ltd
