Specifications
1.type:Small PE PVC Hose Machine2.capacity:60-100kg/h
3.total power:85kw
4.CE certification
5.Max.speed:10m/min

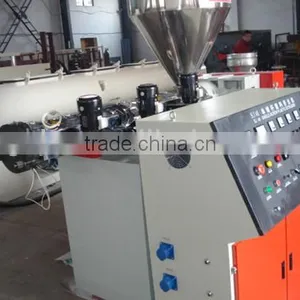

Small PE PVC Hose Machine
Application:
1.This kind of PVC soft hose pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc.
2.So the final products of this line are widely used in conveying pipes for air, water, coal gas, oil and other liquid and gas.
Small PE PVC Hose Machine ---data sheet:
| pipe diameter range(mm) | 4.5-9mm |
9-32mm |
16-50mm |
| main machine model | SJ-30 | SJ-45 | SJ-65 |
| main motor capacity(kw) | 3kw | 11kw | 18.5kw |
| moulding machine output(kw) | 1.1kw | 1.5kw | 2.2kw |
Small PE PVC Hose Machine-- machine description:
1.single screw extruder:
1 |
Model |
SJ30/28 |
2 |
Motor power |
5.5Kw |
3 |
Motor type |
Frequency |
4 |
transducer |
LG |
5 |
Temperature controller |
OMRON |
6 |
contactor |
SIMENS |
7 |
Screw Dia. |
φ30 |
8 |
L/D |
28:1 |
9 |
Screw/cylinder |
38CrMoALA |
10 |
Cylinder heating method |
2 section heating zone, fan cooling |
11 |
Cylinder heating power |
≥4 Kw |
12 |
Extrusion capacity |
5-10Kg/h |
3. Electrical control system: Siemens PLC, ABB converter, Omron temperature controller. The entire production line adopts the originally imported new control system of PLC programmable computer, guaranteed highly and steadily reliable controls of the production line.
4. Die head:
1 |
Mold type
|
1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 6 mm |
|
2 |
Pipe thickness
|
0.4-0.6mm |
|
5. PVC Hose Making Line---Cooling tank
1 |
length |
2m |
|
2 |
Tank material |
Stainless steel |
|
3 |
Cooling method |
Dip |
|
4 |
Water pump power |
1.5KW |
|
5 |
Water-level control |
Automatic |
6. Haul-off/Traction machine:
1 |
Traction method |
Roller wheel traction |
|
2 |
QTY. of roller wheel |
4 pc |
|
3 |
Traction motor power |
0.55KW |
|
4 |
Traction speed |
4~20m/min |
|
5 |
Traction speed adjustment |
Frequency |
|
6 |
Transducer |
LG |
7.Coiler Machine
1 |
Wind station |
1 |
|
2 |
Wind speed |
4-20m/minute |
|
3 |
Wind method |
Equipped with pipe wind |
|
4 |
Applicable pipe Dia. |
φ1-φ6mm |
Regarding the PVC Soft Pipe Extrusion Line :
How to get your suitable machine or production line ?
• Find our products through in Google ,Baidu. Bing ,Yahoo, etc
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1.What kind of products will you produce?Pipe,Plastic profile,or Sheet?
2. What is raw material like?Granule type or powder type?
3. What kind of material ?PE,PVC,PPR,HDPE,UPVC:Pipe diameter, or other please inform us of details .
4. Sole machine or whole production line .
After Service:
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in Soft Pipe Extrusion Line and want to know more information about our machines,please do not hesitate to send your inquiry to us,we'll try our best to serve you.
Hopefully we can succeed in cooperation and establish long term business relationship.
