Specifications
1.type:PPR PVC Plastic Machine For Pipe2.capacity:150kg/h
3.total power:125kw
4.factory
5.CE certification
PPR PVC Plastic Machine For Pipe
Application:
Machine for Plastic pipe is mainly used in the area of argricultural water supply system, architectral water supply system,pavement of cables,etc.
PPR PVC Plastic Machine For Pipe ---process flow

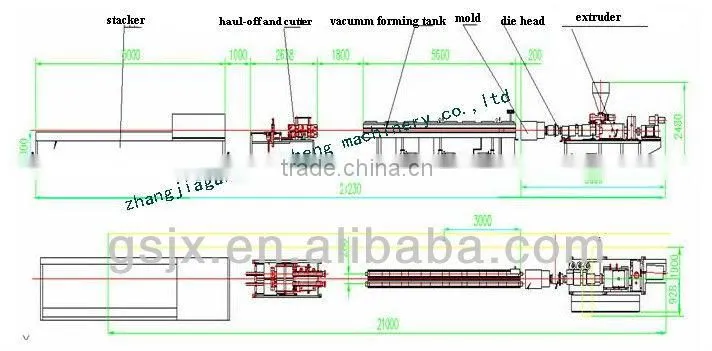

Raw material + additive → mixing → feeding → single screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
PPR PVC Plastic Machine For Pipe --machine description:
1. Automatic feeding and drying system: vacuum sucking up and automatic controlling hot air heating.

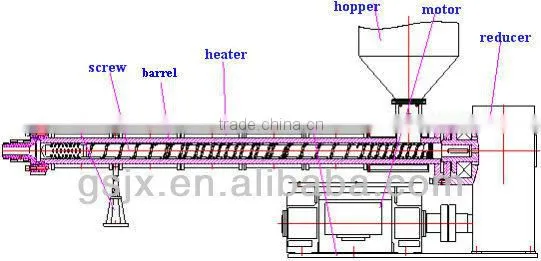

2. Single screw extruder: high speed extruders adopts notched barrel (with water forced cooling transportation zone), shielded screw with special mixing structure ensures the stability of high extruding and the plasticizing quality.
3. Electrical control system: Siemens PLC, ABB converter, Omron temperature controller. The entire production line adopts the originally imported new control system of PLC programmable computer, guaranteed highly and steadily reliable controls of the production line.

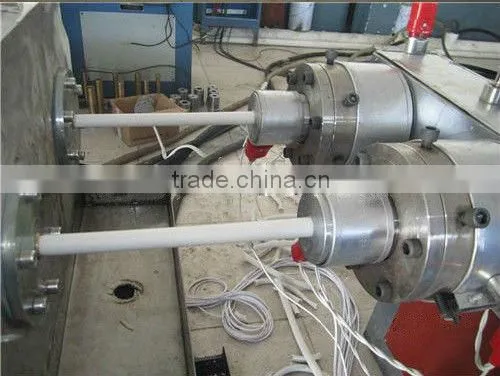

4. Die head: specially structured spiral accumulator-type die head surmounts stress orientation of polymer chain during pipe forming and achieve smooth-pressure extruding, and makes the good physical and chemical properties of raw material be copied into the pipe, meanwhile the stability of the extruding pressure is the strong guarantee for high-speed manufacturing.

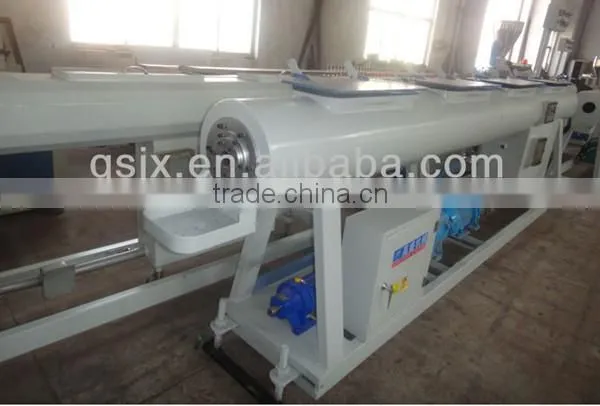

5. Vacuum calibration tank: vacuum calibrating mandrel adopts our own proprietary’s mult-sheet water immersion calibrating mandrel (invention patents, practical new patents), realized the cooling calibrating evenly and effectively for plastic pipe, ensuring high speed production of the pipe.
6. Haul-off machine: high speed flat belt pulling machine with multi-group roll wheel is specially designed for high speed pipe production, which can ensure the stable running during the production no matter at high or low speed.
7.Cutter
8.Stacker
If you are interested in our plastic extrusion extruder machine,please feel free to contact us,we will satisfy you upon receipt of your reply,as we donot want to lose a good customer like you.
Thanks and best regards.
Amy Su
