Home > Products > Plastic Extruder > 3D printer filament line 3D filament extrusion line
3D printer filament line 3D filament extrusion line
- 16 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Wire | Plastic Processed: | ABS |
Screw Design: | Single-screw | Automatic Grade: | automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Gaosheng 3D printer filament line 3D filament extrusion line | Model Number: | SJ45/28 3D printer filament line 3D filament extrusion line | Voltage: | 380V 50HZ 3D printer filament line 3D filament extrusion line |
Power(W): | 20kw | Dimension(L*W*H): | 9800*2200*2700mm | Weight: | 1200kg |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
3D printer filament line 3D filament extrusion line
Application:
3D abs,pla filament mainly used for 3D Printer.
The main products of the ABS,PLA Filament Extruder: 1.75mm and 3mm ABS/ PLA 3D Filament & Typing Strips.
1.Produce process
I . Before produce extruding filament ,we will dry ABS and PLA for a enough time (3-5 hours).
II. Mix with colors masterbatch or colors powder, all which .
III.Adjust temperature and dragging rate , make filament diameter range at 1.6-1.8mm/2.8-3.0mm, roundness +/-0.05mm, each spool net weight 1kg+/-0.02kg
2.About waste & recycle
Much time you will find some black filament is too brittle, that added and mixed with some recycle and scrap after produced.
3.Productiong quality control
I. we have diameter laser device kits to control extruding rate on line, when diameter smaller or higher than accept range, the laser device kits will adjust the extruding rate higher or smaller to make diameter range at acceptable.
II.keep each record filament samples sent to customers, build a tracking able document.
III.when the filament put on shelf longer than half a year, please dry the filament again.
3D printer filament line 3D filament extrusion line---machine description:
1.high speed extruders adopts notched barrel (with water forced cooling transportation zone), shielded screw with special mixing structure ensures the stability of high extruding and the plasticizing quality.

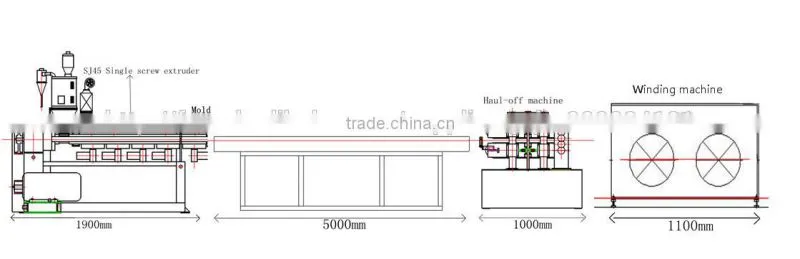

2.3D printer filament line 3D filament extrusion line--Machine list:
NO. | Item name | Quantity |
1 | Color mixer | 1 |
2 | Hopper dryer with loader
| 1 |
3 | ABS/PLA single screw extruder
| 1 |
4 | High precision mold
| 1 |
5 | Water cooling tank
| 1 |
6 | Diameter measuring device
| 1 |
7 |
Haul-off machine | 1 |
8 |
Double station coiler
| 1 |
8 | Voltage:380V 50HZ or customized |
3. Electrical control system: Siemens PLC, ABB converter, Omron temperature controller.
3D printer filament line 3D filament extrusion line ----picture:
2.Water cooling tank
3.Haul-off machine
4.Winding machine
3D printer filament line 3D filament extrusion line --Filament sample:
PLA 3D printer filament is 210-235°C, melting point is 200°C
FAQ:
•Q:What is your company main product?
A:Plastic Product Extrusion machine
•Q:Are you a factory or trade company?
A:We are a factory.
•Q:Where is your factory located?How can I visit there?
A:Our factory is located in Zhangjiagang city,Jiangsu Province,China,about 2 hours bus ride from Shanghai.All our clients,from home and abroad,are warmly welcome to visit us.
After Service:
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in single screw extruder,please feel free to contact s,we will satisfy upon receipt of your reply,as we donot want to lose a good customer like you.
Looking forwarding to your reply.
Thanks and Best regards.
Amy Su
