3D printer ABS Filament Extrusion Line
Application:
3D printing materials is a new type of high-tech printing materials, and widely used in civil and military market, which is emerging on current international high-tech printing materials.
Plastic 3d printing materials mainly include material ABS, PLA. Its application can be widely used in scientific research, teaching, market application, civil, military and other fields.
3D printing will be into the life of people in the future, just like we use computer. Real dispense open mold, proofing, production, distribution agents, department store, a lot of link such as consumers, than platform shoes, cups, toys and so on.
All things in our life can be achieved by 3D printing production and use, and completely change the traditional mode of production and ways of distribution. It will be a high-tech technology revolution.
Feature:
I . Before produce extruding filament ,we will dry ABS and PLA for a enough time (3-5 hours).
II. Mix with colors masterbatch or colors powder, all which .certified with ROHS.
2.Production process:
I. we have diameter laser detect kits to control extruding rate on line, when diameter smaller or higher than accept range, the laser detect kits will adjust the extruding rate faster or slower to make diameter range at acceptable.
PLA 3D printer filament is 210-235°C, melting point is 200°C
ABS Filament Extrusion Line----data sheet:
| NO. | Item name | Usage | Quantity |
| 1 | Color mixer | mixing color material | 1 |
| 2 |
Hopper dryer with loader
|
loadingand drying material |
1 |
| 3 |
ABS/PLA single screw extruder
|
1 | |
| 4 |
High precision mold
|
1.75mm and 3mm | 1 |
5 |
Water cooling tank(warm and cooling tank)
|
cooling filament | 1 |
| 6 |
Diameter measuring device
|
Tolerance +-0.002mm |
1 |
| 7 |
Haul-off machine
|
Max.speed:80m/min |
1 |
| 8 | Double station coiler | 1 | |
| 9 | Voltage:380V 50HZ or customized | ||

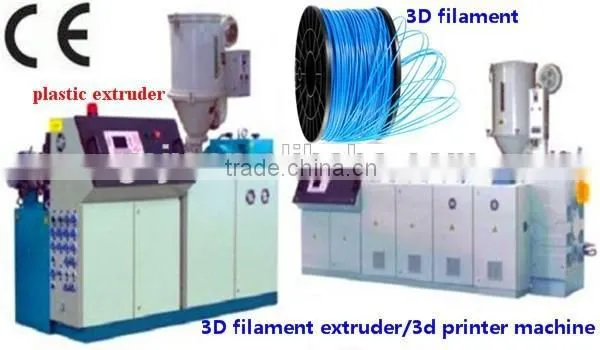

ABS Filament Extrusion Line ----pictures:
1.Single screw extruder
2. Warm water tank(keep filament roundness) and water cooling tank
3.Haul-off machine
4.Double-station coiler
ABS Filament Extrusion Line ---final product sample:
--All the important electrical elements use the world brand ,such as Schneider, Yaskawa,Simens,Omron, ABB, etc.
---Material of screw and barrel: 38CrMoAlA Azotizing on surface 0.4~0.7mm Rigidity: above 700 HV.
---Steady function and long-time life , easy to handle.
If you are interested in our machines and want to know more information about our machines,please do not hesitate to send your inquiry to us,we'll try our best to serve you.
Hopefully we can succeed in cooperation and establish long term business relationship.
Best regards.
Amy Su
