ABS PLA 1.75 3.00mm 3D Printer Filament Extruder Machine
Application:
3D printing is one kind of rapid prototyping. It is a technology which based on digital model and uses metal or plastic to pile up raw material step by step. In ancient it was widely used in mould making, industrial design or other area, but now this technology can make the product directly such as hip joint, teeth or some plane parts. This technology is becoming more and more popular.
3D printing filament is a new type of high-tech printing material which is widely used in normal life. The main plastic material is ABS, PLA, PA etc. In the future, the technology will deeply affect people’s life just like the computer, Now this technology is just started in developed countries such as USA, UK etc. So it is a very moment to get into this area and get early investment, in the future this technology will drive a high-tech revolution.
3D printer has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.
Feature:
I . Before produce extruding filament ,we will dry ABS and PLA for a enough time (3-5 hours).
II. Mix with colors masterbatch or colors powder, all which .certified with ROHS.
2.Production process:
I. we have diameter laser detect kits to control extruding rate on line, when diameter smaller or higher than accept range, the laser detect kits will adjust the extruding rate faster or slower to make diameter range at acceptable.
PLA 3D printer filament is 210-235°C, melting point is 200°C
ABS PLA 1.75 3.00mm 3D Printer Filament Extruder Machine---data sheet:
| NO. | Item name | Usage | Quantity |
| Color mixer | mixing color material | 1 | |
| 1 |
Hopper dryer with loader
|
loadingand drying material |
1 |
| 2 |
ABS/PLA single screw extruder
|
1 | |
| 3 |
High precision mold
|
1.75mm and 3mm | 1 |
4 |
Water cooling tank
|
cooling filament | 1 |
| 5 |
Diameter measuring device
|
Tolerance +-0.002mm |
1 |
| 6 |
Haul-off machine
|
Max.speed:80m/min |
1 |
| 7 | Double station coiler | 1 | |
| 8 | Voltage:380V 50HZ or customized | ||
ABS PLA 1.75 3.00mm 3D Printer Filament Extruder Machine ----pictures:

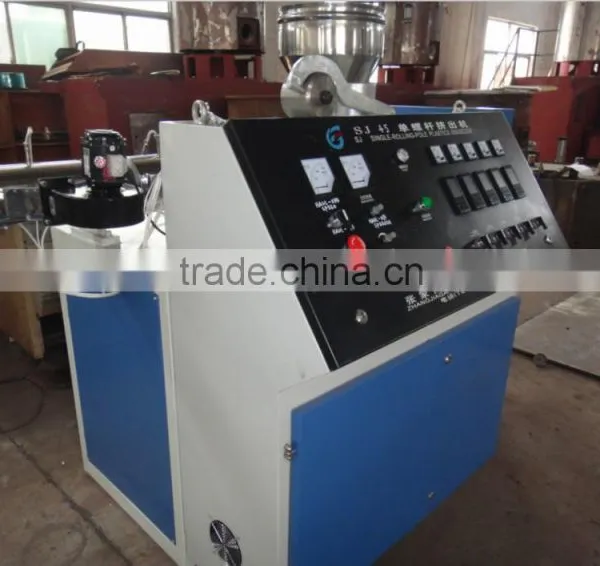

1.Single screw extruder
2. water cooling tank

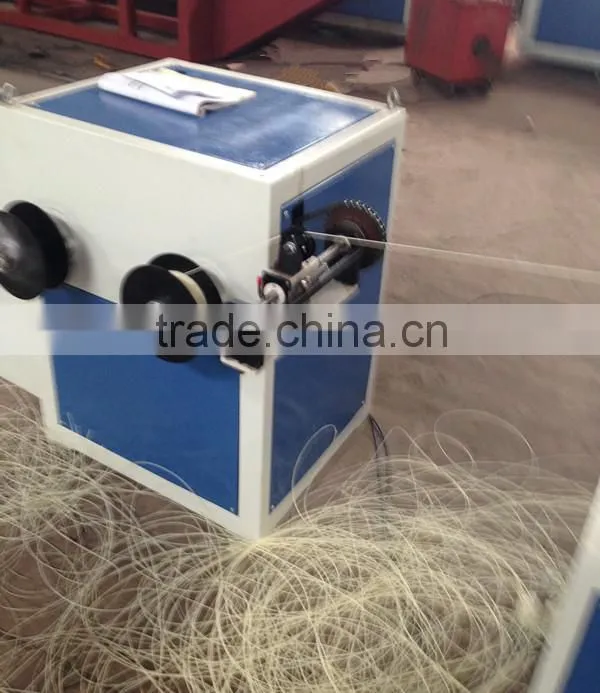

3.Haul-off machine

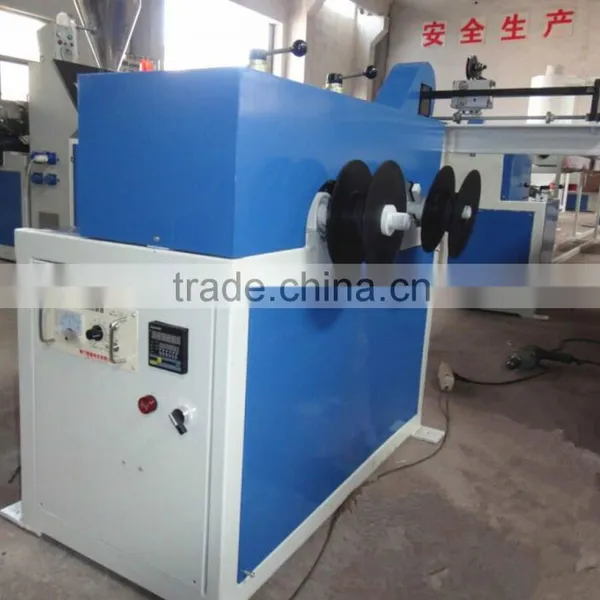

4.Double-station coiler
ABS PLA 1.75 3.00mm 3D Printer Filament Extruder Machine ---final product sample:
--All the important electrical elements use the world brand ,such as Schneider, Yaskawa,Simens,Omron, ABS, etc.
---Material of screw and barrel: 38CrMoAlA Azotizing on surface 0.4~0.7mm Rigidity: above 700 HV.
---Technics adopted from Germany, we have cooperation with engineers abroad.
---Steady function and long-time life , easy to handle.
If you are interested in our machines and want to know more information about our machines,please do not hesitate to send your inquiry to us,we'll try our best to serve you.
Hopefully we can succeed in cooperation and establish long term business relationship.
Best regards.
Amy Su
