pe pp pipe crusher machine
- 23 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Type: | Hydraulic Cutting Machine | Application: | plastic pipe,profile |
Place of Origin: | Jiangsu, China | Brand Name: | Gaosheng pe pp pipe crusher machine | Model Number: | planetary pe pp pipe crusher machine |
Saw Blade Diameter: | 50-250mm | Voltage: | 380V 50HZ | Power(W): | 2.2KW |
Certification: | CE |
Product Description
Specifications
pe pp pipe crusher machine1.cutter mothed: planetary cutter
2.power:2.2kw
3.diameter:50-250mm
4.CE certification
pe pp pipe crusher machine
information:
Diameter Scope of Cutting Pipe | Φ50~Φ250 |
Diameter of Saw | Φ200mm |
Specification of Milling Cutter | Φ140mm×75° |
Revolution Motor Power | 0.75KW |
Revolution Motor Timing | Adopt 0.75KW Japan FUJI AC Inverter |
Cutting Motor Power | 2.2KW |
Pushing Motor Power | 0.37KW |
Sawdust Suction Fan Power | 1.5KW |
Bracket Longitudinal Moving Distance | 1200mm |

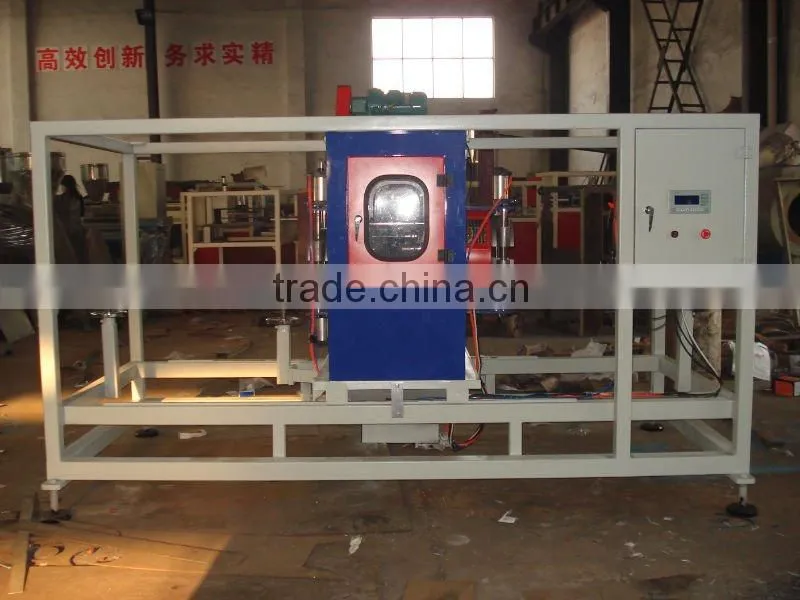

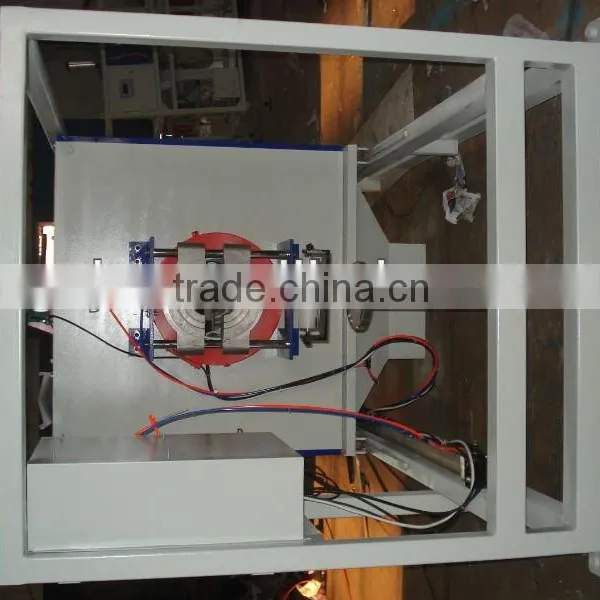

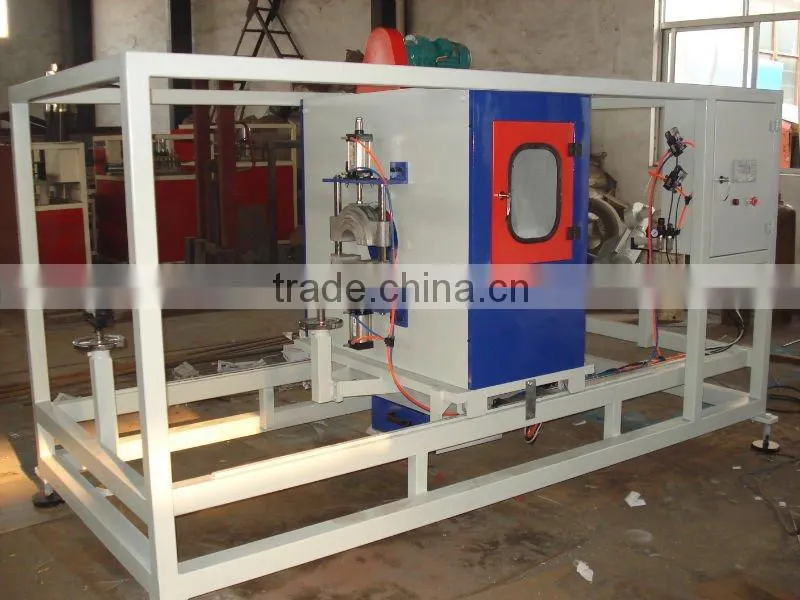

pe pp pipe crusher machine pictures:
Pneumatic blade type cutter | blade diameter(mm) | 300 | 350 | |
driving power(kw) | 1.1 | 1.1 | ||
working air pressure(mpa) | 0.7-0.7 | 0.7-0.7 |
pe pp pipe crusher machine data:
Diameter Scope of Cutting Pipe | Φ160~Φ400mm |
Diameter of Saw | Φ200mm |
Specification of Milling Cutter | Φ140mm×75° |
Revolution Motor Power | 1.5KW |
Revolution Motor Timing | Adopt 1.5KW Japan FUJI AC Inverter |
Cutting Motor Power | 2.2KW |
Pushing Motor Power | 0.37KW |
Sawdust Suction Fan Power | 1.5KW |
Bracket Longitudinal Moving Distance | 1200mm |
If you are interested in our cutting machine,please feel free to contact us.
Thanks and best regards.
Amy Su
