6M Pipe Vacuum Forming Machine

6M Pipe Vacuum Forming Machine thumbnail-1
6M Pipe Vacuum Forming Machine thumbnail-2
6M Pipe Vacuum Forming Machine thumbnail-3
6M Pipe Vacuum Forming Machine photo-1
6M Pipe Vacuum Forming Machine photo-2
6M Pipe Vacuum Forming Machine photo-3
US$ 2,100 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vacuum Forming Machine
Plastic Type:
PVC
Contact Supplier Request Quote Chat Now
Zhangjiagang Gaosheng Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vacuum Forming Machine
Plastic Type PVC
Product Type Pipe
Automatic Yes
Place of Origin Jiangsu, China
Brand Name Gaosheng 6M Pipe Vacuum Forming Machine
Model Number 5000mm 6M Pipe Vacuum Forming Machine
Voltage 380V 50HZ or customized
Power(W) 5.5kw*2
Weight 900KG
Dimension(L*W*H) 6m*0.6m*1m
Certification CE

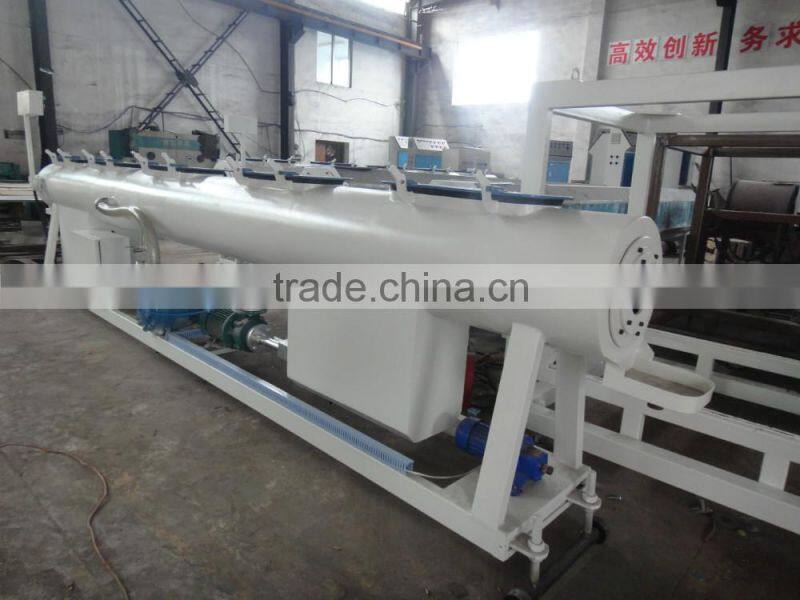

6M Pipe Vacuum Forming Machine



Characteristic:

1,Mainly used for PE, PVC,HDPE plastic pipe vacuum stereotypes and cooling.



2,The machine adopts the optimized sizing box and waterway vacuum system are   made of stainless steel.



3,water system and the vacuum system is stable and reliable



4,chamber, fluctuation, adjustable



Model
GS-63
GS-110
GS-200
GS-400
GS-630
GS-800
Production diameter(mm)
16-63
20-110
63-200
200-400
400-630
630-800
Pumps
(kw)
3
4
5.5
5.5×2
7.5×2
7.5×3
Vacuum
(kw)
3
5.5
5.5
5.5×2
7.5×2
5.5×3
Cabinet length
(mm)
5000
5000
5000
6000
6000
8000
Case material
304 Stainless steel

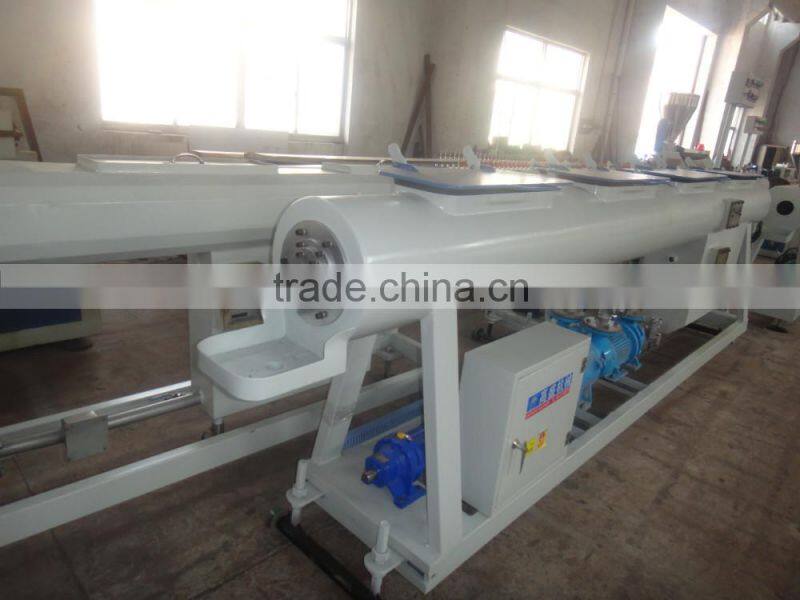

 6M Pipe Vacuum Forming Machine



6M Pipe Vacuum Forming Machine

6M pipe vacuum forming machine ---Technical data:

Calibration Tank Length

6 Meter

Tank Metarial

Adopt 5mm thickness stainless steel board

Vacuum Pump

5.5KW×2pcs

Water Pump

5.5KW×2pcs

Tank Lengthways Move

Adopt 0.75KW Gearbox Speed Reducer Motor,

Adjusting Distance equal to 800mm

Up-and-down,

Right-and-left adjusting

Adopt Manual Adjusting

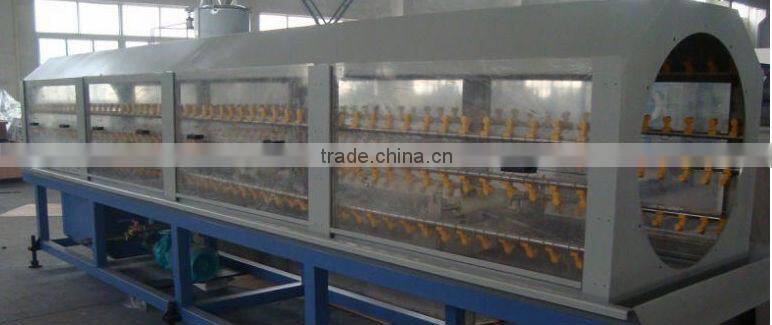

   pipe vacuum forming tank  ----inside picture:



 6M Pipe Vacuum Forming Machine

6M Pipe Vacuum Forming Machine



 Vacuum forming machine ---part band :

No

Name

Specs

1

Main material

Stainless steel

2

Water and vacuum pump   from shanghai YvLong

3

Main electric parts

Schneider

4

The tank is equipped   with water level and water temperature controlling system.



If you are interested in our machines,please feel free to contact us.

Looking forward to your reply.

Thanks and best regards

Amy Su
