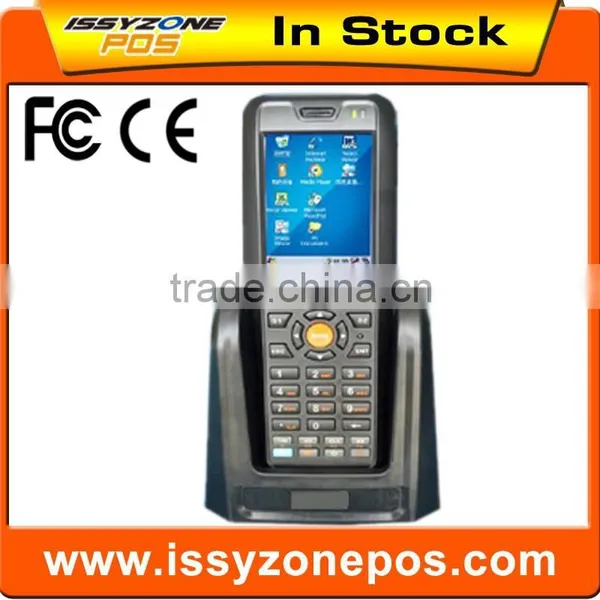

Industrial PDA 533MHZ 2.8 inch TFT 200 scan/sec Wi-Fi With 1D 2D Barcode Scanner IPDA002
Industrial Mobile Data Terminal IPDA002
The IPDA002 is the ultra-tough device from Urovo, drop tested to 1.5M and compliant with IP64. The shape and feel of the keys facilitate error-free data entry- even when wearing gloves, and key backlights enable using in darker environments or at night. It’s optimized power system delivers the most efficient power management, freeing up more precious battery life for useful work. The IPDA002 is perfectly designed for frequent and rapid scanning in tough conditions, and it is the ideal device for warehouse and yard work.
Product Superiority
Handy and Ergonomic Design/Easy Operation
Strong Data Security /WiFi Roaming/IP65
Product Feature
(1)Smart Scanning
The IPDA002 can read most 1D and 2D barcode symbologies, and equipped with powerful CPU, memory & performance tuning ensure high-speed reading capability. It is perfectly designed for frequent and rapid scanning with 3 trigger keys, one in the centre and one on either side of the terminal, to allow easy one-handed scanning.
(2)Freedom to Roam
WLAN (IEEE802.11b/g/n) connectivity offers real-time communications with your network, and support for seamless roaming means that you don’t need to worry about the integrity of your network. Also the integrated Bluetooth Class2.1+EDR enables the device to wirelessly connect to mobile printers and other devices.
(3)Exceptional Power Management
New high-capacity battery delivers an exceptionally long life, support up to 10 working hours. And the unique backup power system design can make sure your data is safe when the battery does lose power during an important job.
(4)Unparalleled Toughness
The IPDA002 is one of the toughest devices with IP65 compliance and drop-testing from an incredible 1.5 metres. It also can operate in temperatures from -10ºC to +50ºC, making it an ideal device for warehouse and tough working conditions.
Application Fields
Warehousing and Distribution, Manufacturing, Retail, Mobile ticketing, Field Force automation, Logistics.

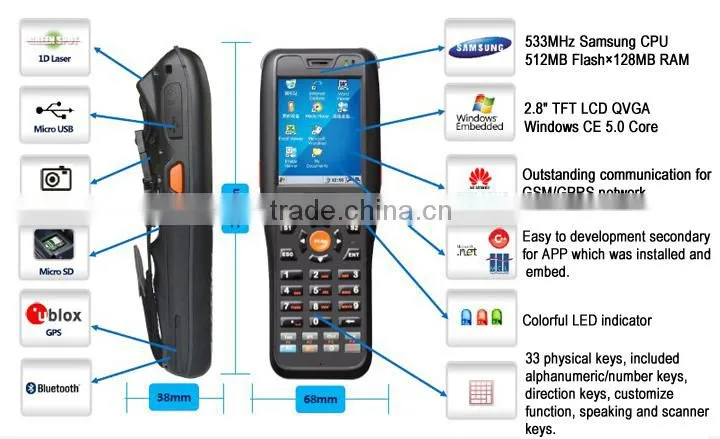

| Physical Characteristics | ||
| Model | IPDA002 | |
| Dimentions | Body max: 189mm*68mm*38mmErgonomically design, | |
| Hand grip width 57mm, thinnest32mm | ||
| Weight | 280g | |
| Display | 2.8” TFT-LCD QVGA (240 x 320) color touch screen | |
| Keyboard | Number/Alphabetic keys, Directional button, Scan button, Side trigger key | |
| Input | Chinese,English,handwriting,support soft keyboard | |
| Performance Characteristics | ||
| O.S. | Windows CE 5.0,Multi-lingual(Chinese, English, Japanese) | |
| CPU | 533MHZ | |
| Memory | ROM | 256MB Nand Flash |
| RAM | 128MB | |
| Display | 2.8” TFT-LCD QVGA (240 x 320) color touch screen | |
| Barcode Scanner | ||
| 1D Laser | Scanning Rate | 200 scan/sec |
| Decode Capability | Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; | |
| Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; | ||
| Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded; | ||
| 2D CMOS | Decode Capability | 1D Symbologies:UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, |
| CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, | ||
| MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, | ||
| CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes | ||
| 2D Symbologies:PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse, | ||
| MaxiCode, QR Code, Aztec, Aztec Inverse | ||
| Postal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, | ||
| Australian Postal,Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, | ||
| UPU FICS Postal | ||
| Radio Communication | ||
| Wireless LAN | Internal 802.11b/g/n wireless communication, Upto 108Mbps, | |
| Compliance with CISCO CCX2/3 security standard, | ||
| CISCO AP and Security Features. Support seamless Roaming. | ||
| Bluetooth | Bluetooth Class2.1+EDR | |
| WWAN Communication | Support GSM/GPRS, | |
| frequency range:GSM850/900/1800/1900MHz | ||
| GPRS multi-slot Class 10: DL 85.6 kbps /UL 42.8 kbps | ||
| GPRS multi-slot Class 8: DL 85.6 kbps /UL 21.4 kbps | ||
| Options | ||
| Camera | 2.0/5.0 mega pixels with fill light,screen capture and automatic focus | |
| GPS | Cold start less than 38s, Support A-GPS | |
| Power | ||
| Main Power | Removable, rechargeable 3.8 V 3800 mAh lithium battery pack, | |
| which can work for 10 hours or above (depending on environment). | ||
| Slave Battery | 120mAh lithium battery | |
| User Environment | ||
| Operating Temperature | –10°C to +50°C | |
| Storage Temperature | –20°C to +60°C | |
| Humidity | 5%–95% ( non condensing) | |
| Drop Durability | meet a drop resistance of 1.5 metres to concrete | |
| Peripherals and Accessories | ||
| Expansion | Micro SD/TF slot (a maximum of 32 GB); SIMx1 | |
| Interfaces | Micro USB, 3.5mm Audio Jack x 1, POGO PIN x 1, for charging and data transmission | |
| Charging Dock | Power adapter, or portable charging cradle: support two pieces of battery | |
| charging at the same time | ||
| Printers | Supports extensive line of bluetooth SPP approved printers and cables | |
| Regulatory | ||
| Sealing | IP65 | |
| Product Certification | CCC, CE, RoHS | |
| Electrical Safety | Certified to UL60950,CSA C22.2 No.6050,EN60950/IEC950 | |
| Laser Safety | IEC Class 2 /FDA Class Ⅱ,in accordance with IEC60825-/EN60825-1 | |
| Warranty | 12 months (except the accessories) | |
