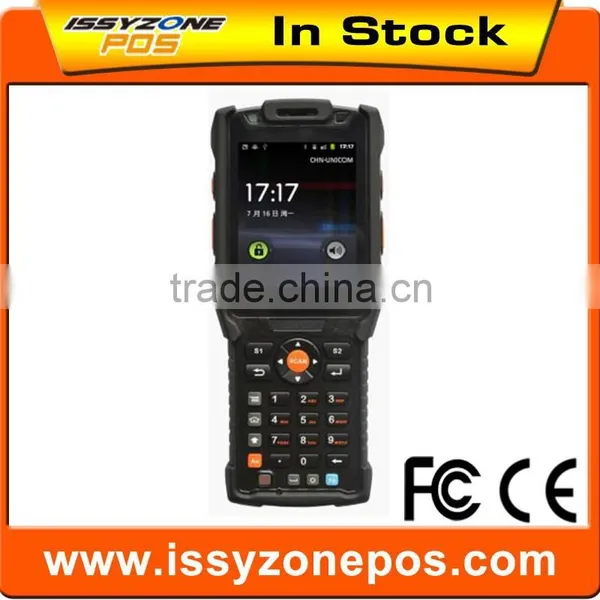

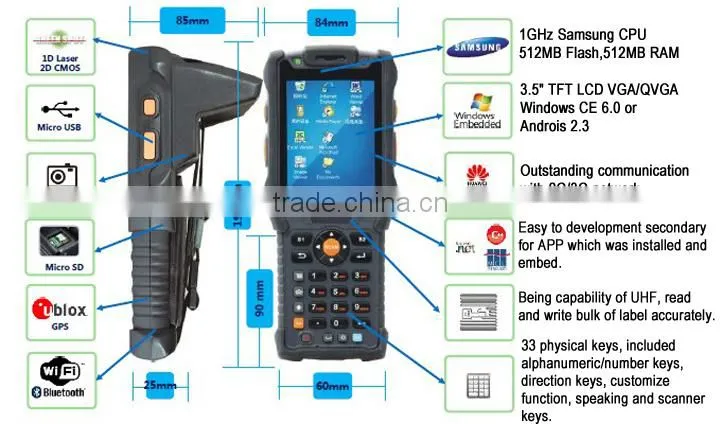

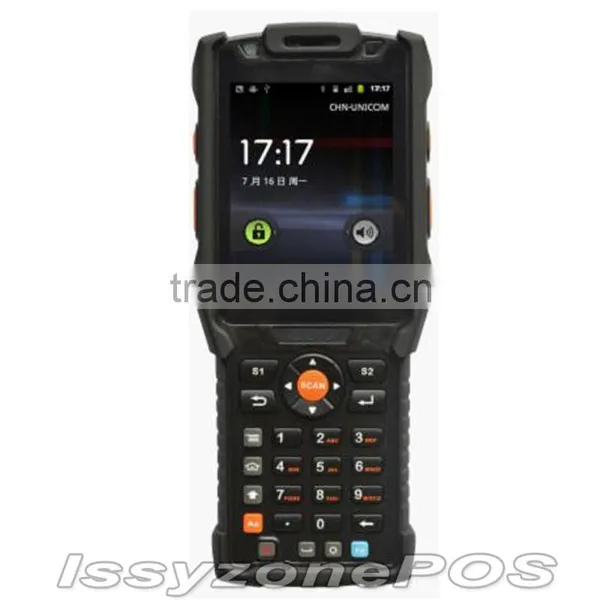

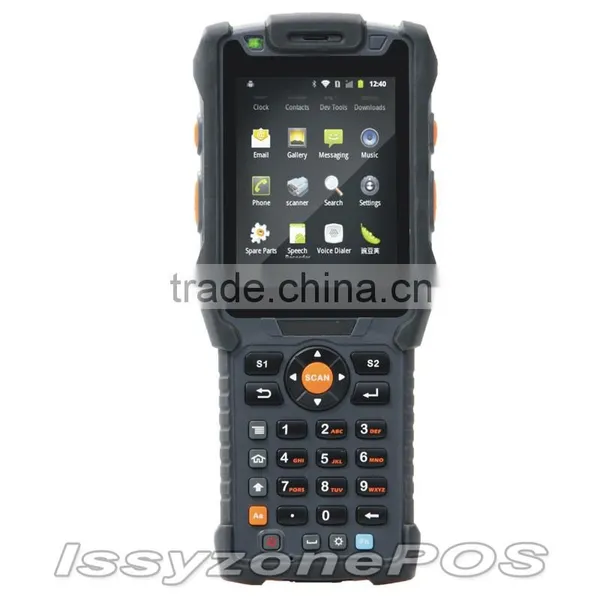

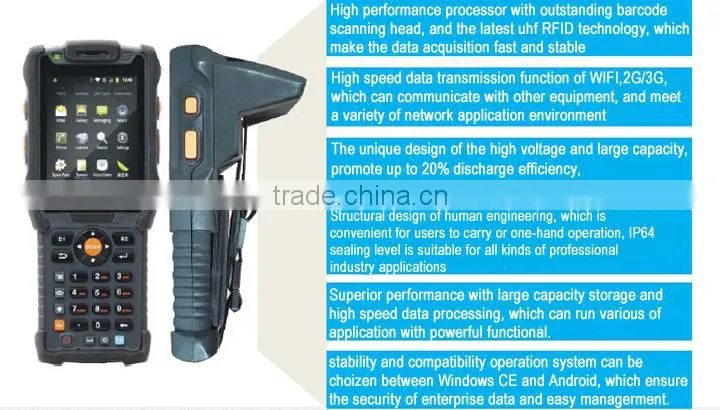

1GHz 3.5 inch TFT-LCD With 1D 2D Barcode Scanner Windows CE 6.0 Handheld Data Terminal IPDA003
Industrial Mobile Data Terminal IPDA003
Highly ruggedized, flexible and easy to operate, IPDA003 handheld data terminal is designed for use in various industrial fields, including asset management, logistics, transportation, medicine safety supervision and production process management. Featuring dual OS (Windows CE or Android), 1GHz CPU, high-capacity battery and strong wireless communication ability including 3G, GPRS, WiFi and Bluetooth.
Product Superiority
Mobile Data Collection / IP64 Rating
Wireless Information Transfer / Powerful CPU / Dual OS
Product Feature
(1)Powerful Data Collection Ability
High speed data collection by 1D and 2D bar code scanner, RFID reader and IC card reader
(2)Flexible and Adaptable
Ergonomic design for easy and comfortable operation, meeting IP64 environmental grade and supporting various industrial applications
(3)Wireless Communication
Supports GPRS/GSM, 3G, WLAN, Bluetooth and other communication modes according to project requirements
(4)Multiple Data Interfaces
Provides USB & RS232 interfaces and supports voice communication
(5)Strong Data Storage
Built-in large RAM&ROM capacity, supports extended Micro SD/TF card (up to a maximum of 32GB capacity supportable)
(6)Dual-system Supportable
Supports Windows CE 6.0 & Android 2.3 operating systems, provides SDK for secondary development on different applications
Application Fields
Transportation & Logistics, Garment & Chain Store, Retail Market, Retail & Wholesale
International Trade, Healthcare & Hospitality, E-commerce , Production Management, Government Law Enforcement, Manufacturing
| Physical Characteristics | ||
| Model | IPDA003 | |
| Dimentions | Max 190mm*75mm*30mm | |
| Hand Grip: 90mm*60mm*25mm | ||
| Weight | 350g(incl.battery) | |
| Display | 3.5inch TFT-LCD VGA(480×640) color touch screen | |
| Keyboard | 33 keys (Number/Alphabetic keys, Directional button, Scan button, Side keypad) | |
| Input | Chinese,English,handwriting,support soft keyboard | |
| Power | Main Battery | Removable, rechargeable 3.7 V 3000 mAh (3.8V 4500mAh) lithium battery pack, |
| which can work for eight hours or above (depending on environment). | ||
| Slave Battery | 150mAh lithium battery | |
| RTC Battery | Individual RTC to keep clock at real time | |
| Performance Characteristics | ||
| O.S. | Microsoft Windows CE 6.0 R3 & Android 2.3(multi-language) | |
| CPU | 1GHz | |
| Memory | ROM | 512MB Nand Flash |
| RAM | 512MB Mobile DDR | |
| Expansion | Support Micro SD/TF up to 32G, SIM x 1 | |
| Audio | Loudspeaker x 1,Microphone x 1,Earphone x 1 | |
| Interfaces | Mini USB x 1, 3.5mm Audio Jack x 1 | |
| Barcode Scanner | ||
| 1D Laser | Scanning Rate | 200 scan/sec |
| Decode Capability | Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; | |
| Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; | ||
| Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded; | ||
| 2D CMOS | Decode Capability | 1D Symbologies:UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, |
| CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, | ||
| MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, | ||
| CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes | ||
| 2D Symbologies:PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse, | ||
| MaxiCode, QR Code, Aztec, Aztec Inverse | ||
| Postal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, | ||
| Australian Postal,Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, | ||
| UPU FICS Postal | ||
| Radio Communication | ||
| Wireless LAN | WIFI 802.11 b/g, Frequency range: 54MB/sec | |
| Cisco Compatible CCX2/3 Security,CISCO AP Security | ||
| Bluetooth | Bluetooth Class2.1+EDR | |
| WCDMA | Frequency Range | UMTS2100/900 MHz |
| UMTS1900/850 MHz | ||
| GSM850/900/1800/1900 MH | ||
| Data Rate | GSM CS: UL 9.6kbps/DL 9.6kbps | |
| GPRS/EDGE: Multi-slot Class 12, Class B | ||
| WCDMA CS: UL 64kbps/DL 64kbps | ||
| WCDMA PS: UL 384kbps/DL 384kbps | ||
| HSDPA:DL 3.6Mbps | ||
| CDMA 2000 | Frequency Range | CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A |
| Supports BC0 (800MHz band), BC1 (1900MHz band) | ||
| Data Rate | CDMA2000 1X: UL/DL: 153.6 kbps | |
| CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps | ||
| CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps | ||
| Options | ||
| Camera | 3.0/5.0 mega pixels with fill light,screen capture and automatic focus | |
| GPS | Support A-GPS | |
| RFID | Customizable,support | |
| LF : ISO11784/11785 | ||
| HF : ISO15693,ISO14443A/B | ||
| User Environment | ||
| Operating Temperature | –10°C to +50°C | |
| Storage Temperature | –20°C to +60°C | |
| Humidity | 5% to 95% non condensing (Condensation Resistant Configurations Available) | |
| Drop Durability | Multiple drops to concrete: 5 ft./1.5 m across the operating temperature range | |
| Sealing | IP64 standard for water and dust resistance | |
| Peripherals and Accessories | ||
| Charging Dock | Double-slot cradle: support two pieces of battery charging at the same time | |
| Printers | Supports extensive line of bluetooth SPP approved printers and cables | |
| Other Acceseries | Adaptor, USB Cradle Cable | |
| Regulatory | ||
| Product Certification | CCC, CE | |
| Electrical Safety | Certified to UL60950,CSA C22.2 No.6050,EN60950/IEC950 | |
| Laser Safety | IEC Class 2 /FDA Class Ⅱ,in accordance with IEC60825-/EN60825-1 | |
| Warranty | 12 months (except the accessories) | |
Application Fields
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times
