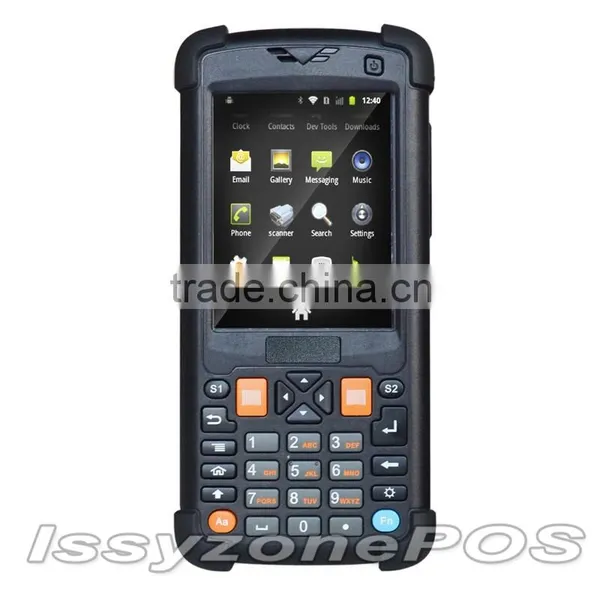

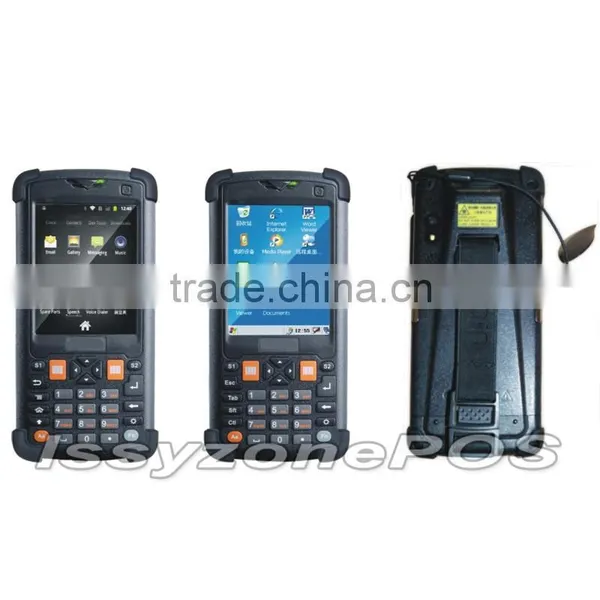

3.2 inch TFT-LCD 533MHZ 200 scan/sec Windows CE 5.0 Handheld Wireless PDA IPDA004
| Physical Characteristics | ||
| Model | IPDA004 | |
| Dimentions | Standard:150mm*70mm*25mm | |
| Weight | 275g | |
| Display | 3.2" TFT-LCD QVGA (240 x 320) color touch screen | |
| Keyboard | 28-29 keys (Number/Alphabetic keys, Directional button, Scan button) | |
| Input | Chinese,English,handwriting,support soft keyboard | |
| Power | Main Battery | 3.7 V 2800 mAh rechargeable lithium battery, |
| which can work for eight hours or above (depending on environment). | ||
| Slave Battery | 150 mAh, prevent data loss. Charging time: 3.5 hours | |
| Performance Characteristics | ||
| O.S. | Microsoft Windows CE 5.0, Multi-lingual(Chinese, English, Janpanese) | |
| CPU | 533MHZ | |
| Memory | ROM | F-ROM 256MB |
| RAM | RAM 128MB | |
| Expansion | Micro SD/TF slot (a maximum of 16 GB) | |
| Interfaces | USB, RS232(option) | |
| Barcode Scanner | ||
| 1D Laser | Scanning Rate | 200 scan/sec |
| Decode Capability | Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; | |
| Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; | ||
| Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded; | ||
| Radio Communication | ||
| Wireless LAN | Internal 802.11b/gwireless communication, Upto 54Mbps | |
| WWAN Communication | Supports GSM/GPRS Class10 and GSM 07.10 multiplexing, wireless communication module | |
| Bluetooth | Bluetooth V2.1 + EDR | |
| Options | ||
| Camera | 2 million/3 million pixels and fill light | |
| GPS | 48 channels, support A-GPS | |
| RFID | Customizable,support | |
| LF | ISO11784/11785 | |
| HF | ISO15693,ISO14443A/B,SRI513/SRI4K,2.4GHz Active RFID Reader | |
| User Environment | ||
| Operating Temperature | –10°C to +50°C | |
| Storage Temperature | –20°C to +60°C | |
| Humidity | 5%–95% (no condensation) | |
| Drop Durability | Multiple drops to concrete: 4 ft./1.2m across the operating temperature range | |
| Sealing | IP54 standard for water and dust resistance | |
| Peripherals and Accessories | ||
| Cradles | Double-slot charging dock:The reverse side for backup battery charging, | |
| front side with slot can be directly used for data communication | ||
| Printers | Supports extensive line of COM printer and bluetooth printer | |
| Other Acceseries | Pouch, vehicle charger | |
| Regulatory | ||
| Product Certification | CCC, CE, ROHS | |
| Laser Safety | IEC2 Class /FDA Ⅱ Class,Compliance with IEC60825-/EN60825-1 Standard | |
| Warranty | 12 months (except the accessories) | |
Application Fields
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times
Our Mission is to maximize The Value of Made In China.
Welcome to . We are a supplier mainly provide POS system. Main products: barcode scanner, receipt printer, magnetic card reader and data collector.
Our history:
In 2010, Issyzone was built in Guangzhou.
At that time, we were just a small team of two people.
But now, we have developed to thirty people due to our sales development by five years’ endeavor.
Our products:
In 2010, we started our market of barcode scanner.
In 2012, we broadened our product range by introducing POS system.
We believe that we will have high quality electric products in the future. We still provide high quality service and good quality products for our customers.
Our commitment:
7 days no reason to return
We provide the “7 days no reason return” service, in order to make sure our customers to have a happy transaction. You can return your products without any reason.
We have aftermarket and original parts. All of products are tested and then sent to you. If you have any trouble in using, we are glad to help you solve the problem.
Our aim:
Make your business easy.
