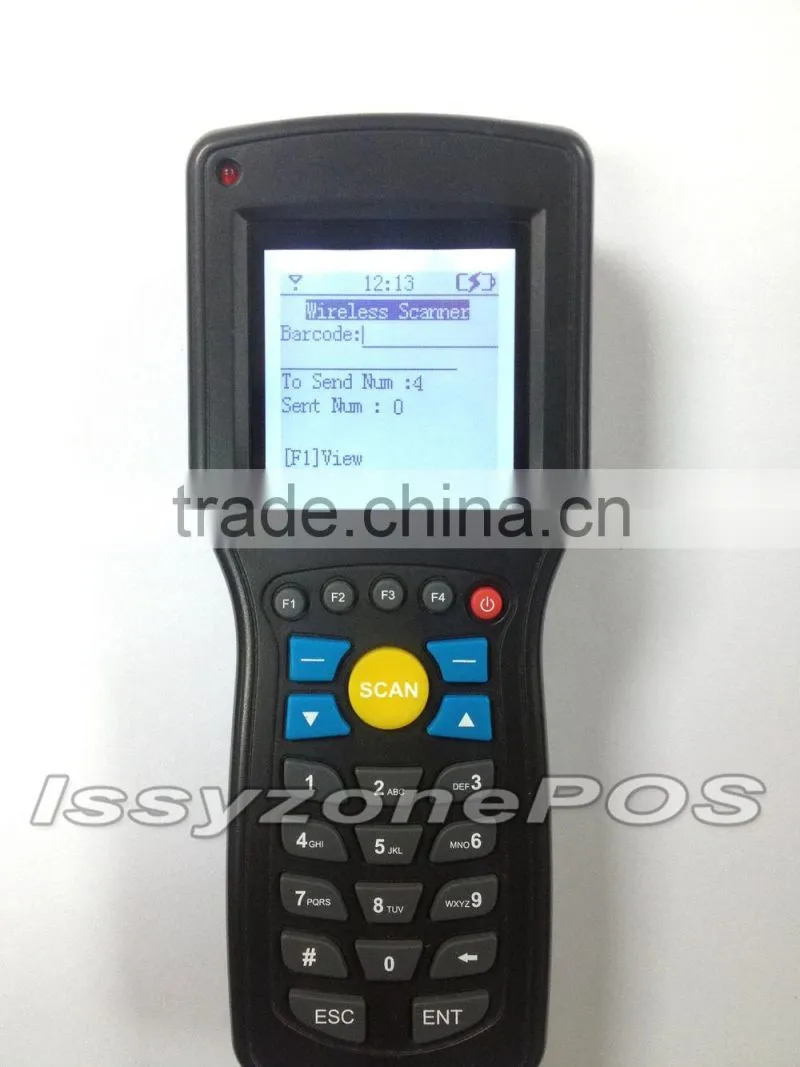

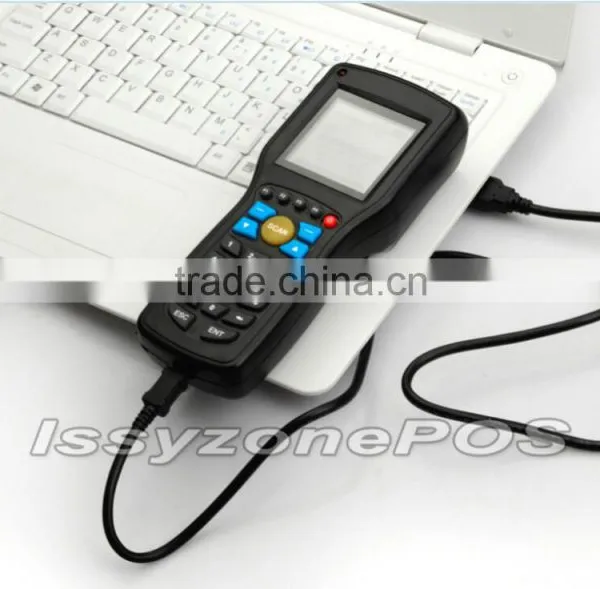

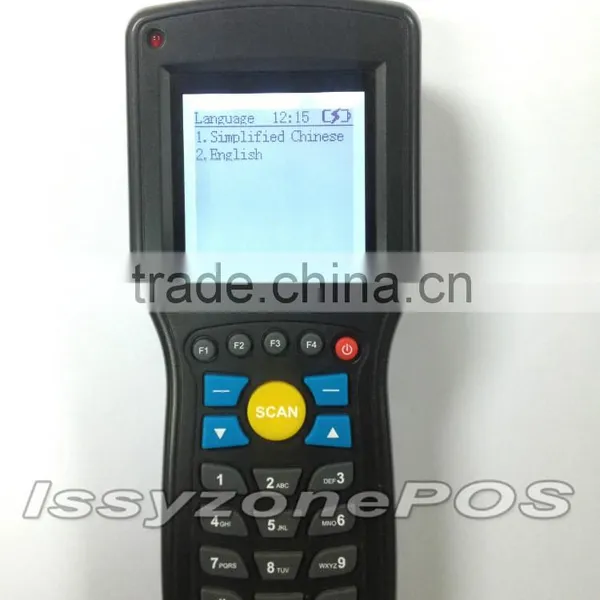

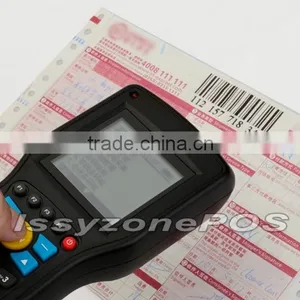

Elite Wired Wireless Data Inventory Collector 1D Barcode Scanner Terminal IPDA001
No.: IPDA001
Brand :
-512M Memory, mass data storage
- Barcode decoding up to 30 bit
- Support inventory, wired barcode scanner function
- Support multi-warehouse inventory separately, supports wireless uploading acquisition results
- Export data format is txt, excel, csv
-Providing API interface program for secondary development
- Support for Win XP, Win7, Win8 system
- Industrial design wide temperature display and rugged housing replaceable rechargeable battery
Products

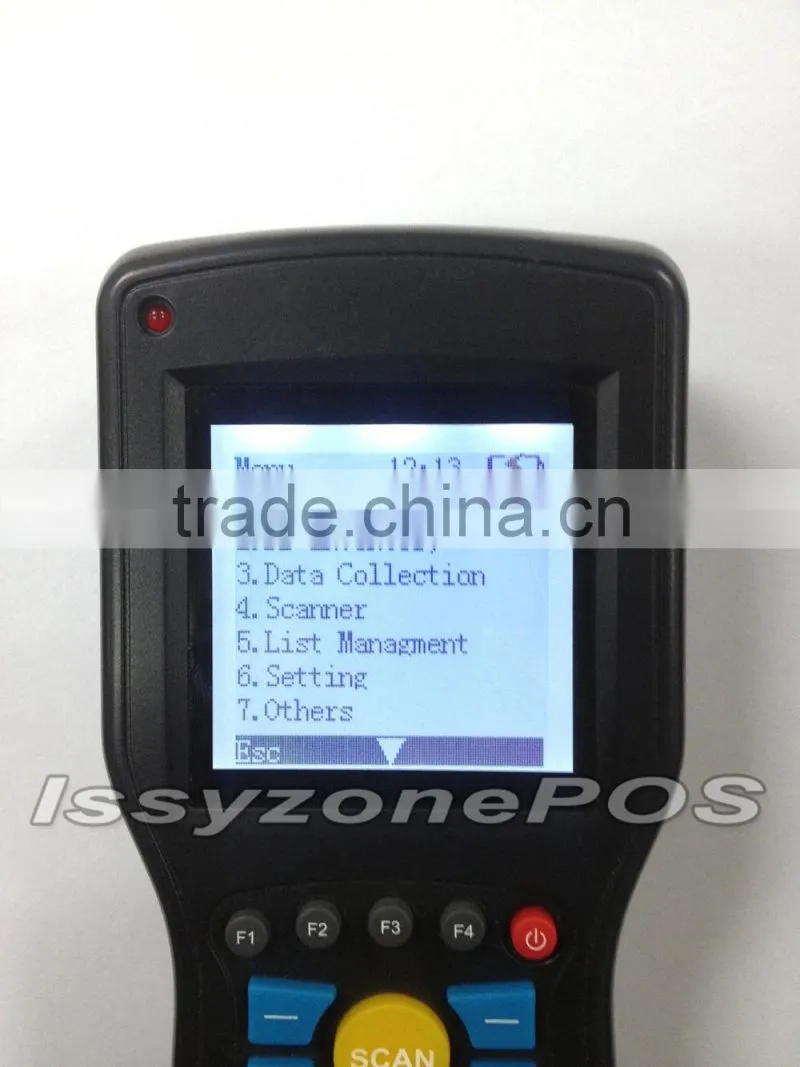

IPDA001 wireless barcode inventory machine using a one-dimensional scanning engine, with a two-inch industrial-grade monochrome LCD display, combined with wireless data transmission, easy to help customers solve storage problems. Mainly for small businesses, companies, stores, shop merchandise bar code and other information collection / inventory management / statistical processes queries. Software features include: in / out library management, inventory management, data management, terminal management, bar code detection, serial number acquisition, wired barcode scanning, browsing data. Can display product information (in English and Chinese characters) of the bar code, number, section name, size fields, bar code data collection. IPDA001 supports offline save data, the data can be sent to the PC wirelessly or via PC-side software to import and export formats: TXT, EXCEL, CSV, etc. IPDA001 support a variety of management software market data docking.
| Specification | |
| Performance Parameters | |
| Scan Engine: | 650nm laser scan engine (one-dimensional) |
| Processor: | 32-bit ARM processor |
| Operating System: | uCOS II |
| Memory: | 512 MB FLASH |
| Display: | 2-inch color LCD screen |
| Tip: | standard buzzer, LED lights |
| Keyboard: | 24 keys keyboard |

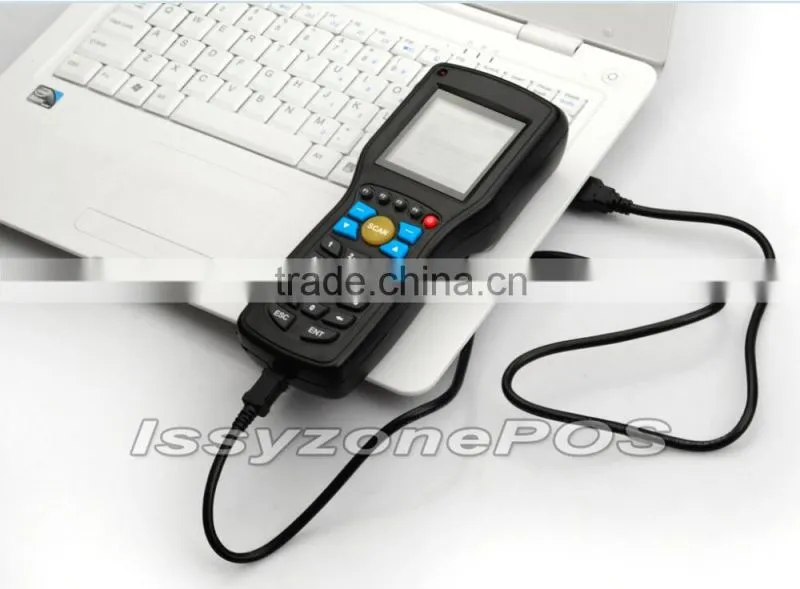

| System Interface: | USB keyboard, USB virtual serial port |

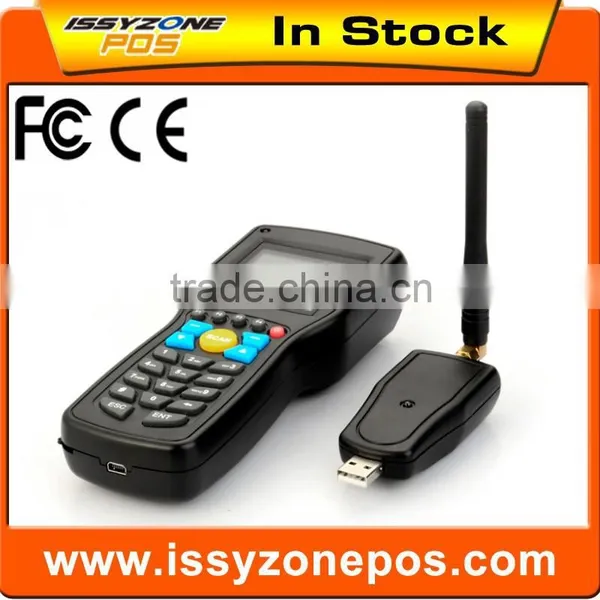

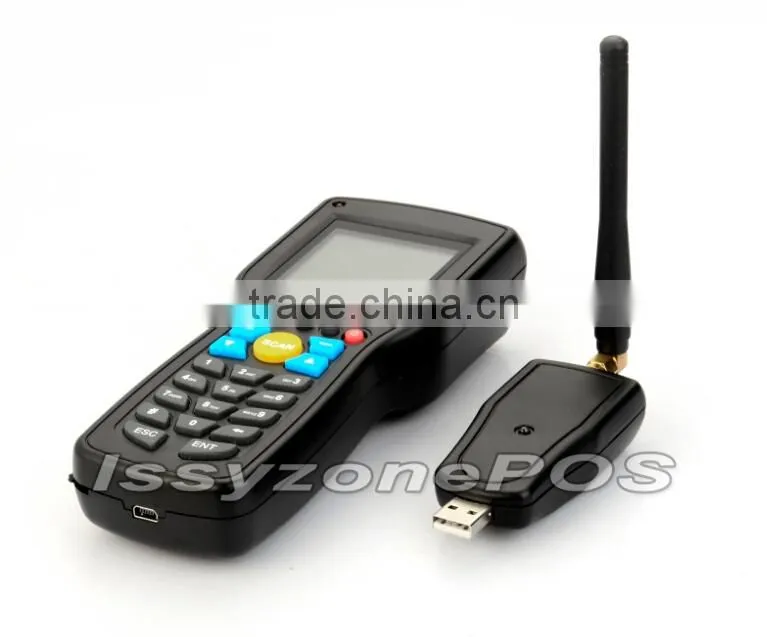

| Wireless Module: | 433MHz radio channel |
| Communication distance: | 150 meters (indoor) 400 meters (outdoors) |
| Scanning Parameters | |
| Scan speed: | 100 ± 10 times / sec. |
| Scan Depth: | 5mil: 35-100mm; 15mil: 30-300mm; 30mil: 40-500mm |
| Resolution: | 0.1mm (4mil) |
| Decoding type: | EAN-8, UPC-E, EAN13, UPC-A, Code39 code, cross 25 yards, UCC / EAN 128, Code128 code, CODE BAR, MSI PLESSEY, industrial 25 yards, 11 yards, Code93 code |
| Electrical Parameters | |
| Current: | 270mA standby 28mA when scanning |
| Power Source: | USB Charging |

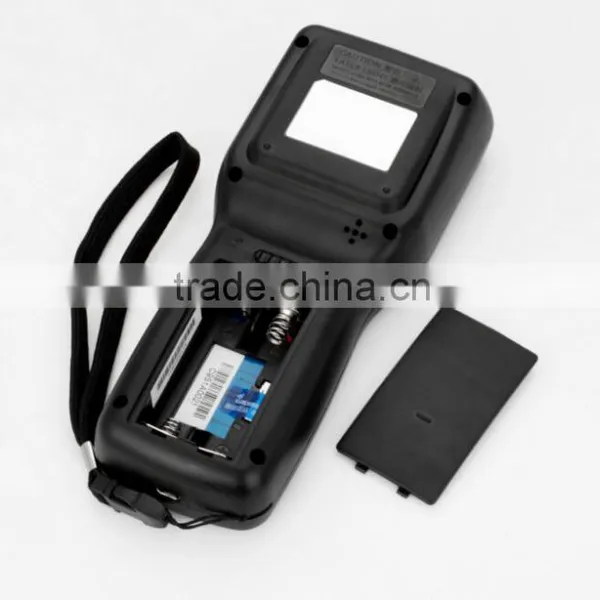

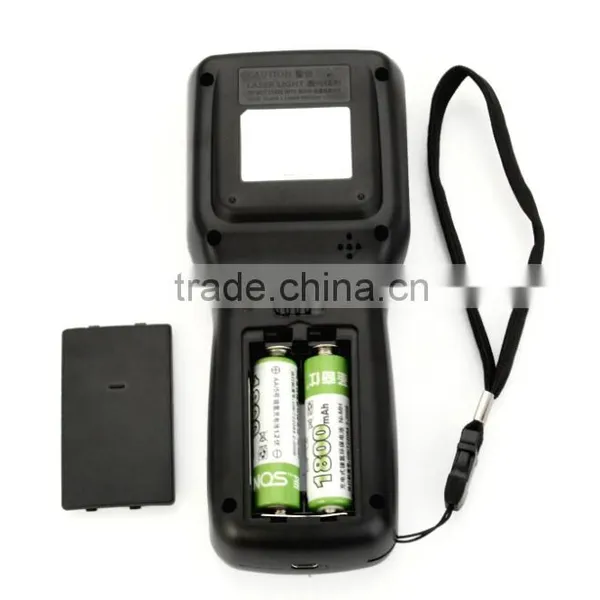

| Battery: | 1.2V, two AA 2600mAH NiMH batteries |
| Standby Time: | 100 ~ 150 hours |
| Working Hours: | 8 to 10 hours |
| Charging Time: | more than 8 hours |
| Mechanical Parameters | |
| Size: | 170mm (L) × 70mm (W) × 36mm (H) |
| Housing Material: | ABS |
| Weight: | 255g (with battery) |
| Communication Interface: | USB |
| Environmental Parameters | |
| Working Temperature: | -10 ℃ ~ 40 ℃ |
| Storage Temperature: | -20 ℃ ~ 50 ℃ |
| Humidity: | 10% ~ 95% |
| Ambient Light: | 0 ~ 70,000 lux |
| Accessories | |
| Data cable | |

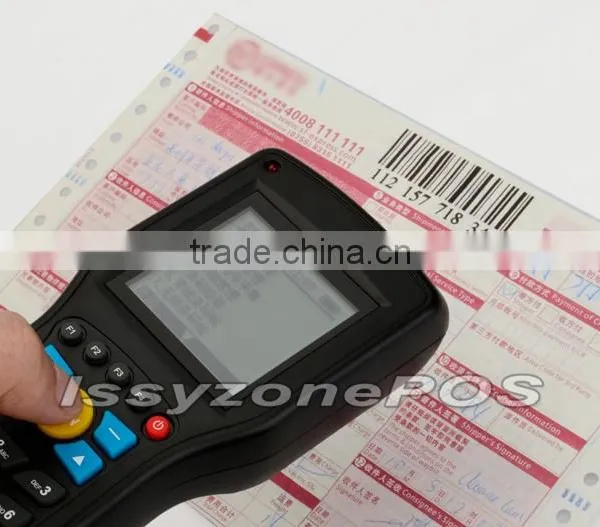

| Application Scenarios | |
| Store, Shopmall, Warehouse management, Production line management, Library management, The apparel industry, FMCG, retail, Supply chain and other industries, The logistics industry (including warehousing, Ccourier, LTL transportation and other materials), Manufacturing, Fixed assets, Medical industry | |
