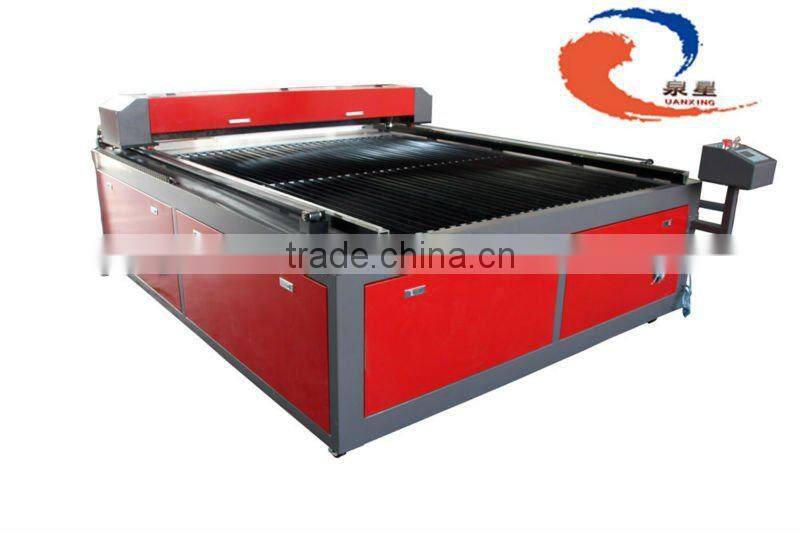

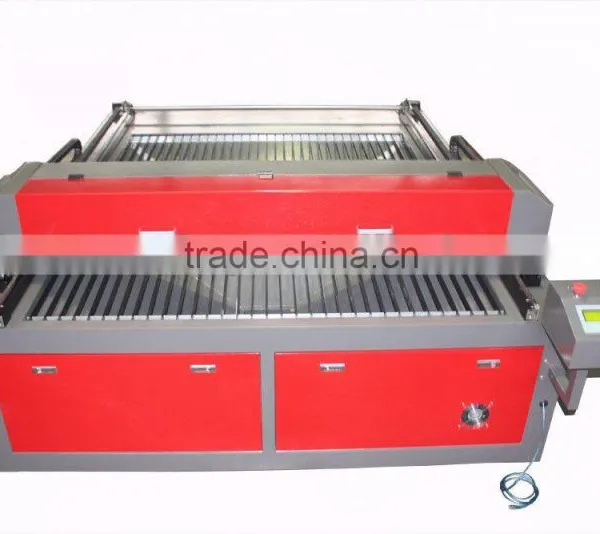

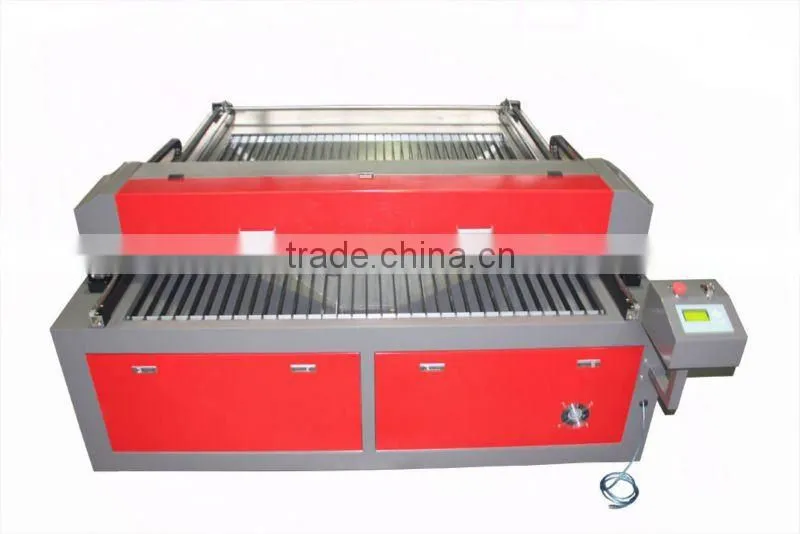

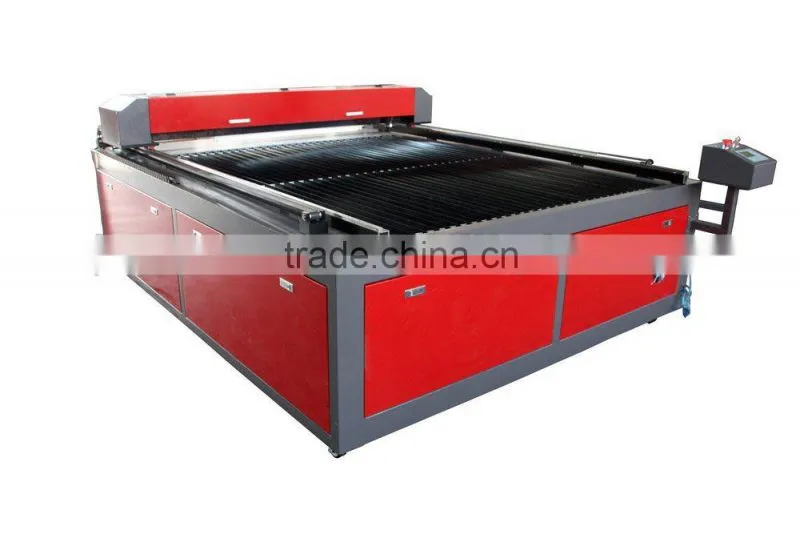

Help CenterLaser Cutting Machine With RECI Tube QX1620 (1600*2000mm)
Related Products
-
Woodworking Machine/CNC Router QX1325 With CENegotiableMOQ: 1 Set -
Woodworking Machine/CNC Router QX1325 With DSP Control PanelNegotiableMOQ: 1 Set
-
Woodworking Machine/CNC Router QX1325 With USB InterfaceNegotiableMOQ: 1 Set
-
DSP Systeme de Controle Laser Machine de GravureUS$ 2,920 - 3,450MOQ: 1 Set
-
Mini Machine de Gravure Laser CO2 Appliquer a Plexiglace QX--4040US$ 1,200 - 1,500MOQ: 1 Set
Specifications
CE and FDA certificationsCO2 laser tube .
Large working area 1.6*2m

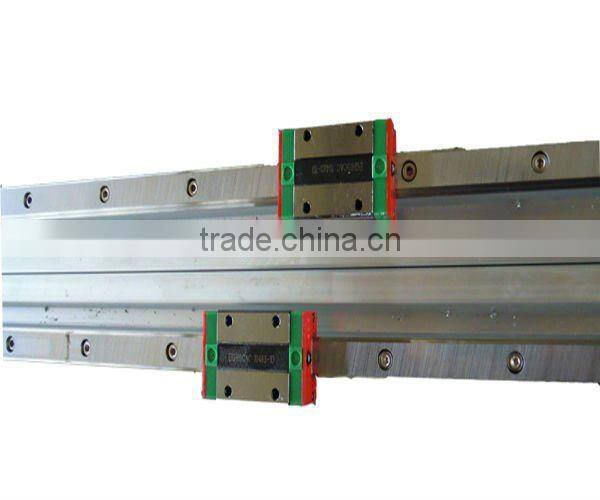

adopts imported linear guide, with DSP system control
Main Application :
This mini machine is especially designed for art & crafts engraving industry.
The machine has a stable performance and applicable for different industries.
It is the ideal choice for non-metal processing industry.
This machine adopts imported linear guide, with DSP system control software.
Applicable materials
wood, bamboo, jade, marble, organic glass, crystal,
plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
advertisement, arts and crafts, leather, toys,
garments, model , building upholster, computerized embroidery and clipping,
packaging and paper industry
Warranty :
12 Months for Machine
3 Months for laser tube, lens and mirror
6 Months for equipments outside, such as water pump, fan, air pump,etc.
TERMS & CONDITIONS:
1. PAYMENT TERMS: By T/T
2. DELIVERY TIME: Max. 7 -10 days after your order
3. PACKING: Seaworthy Packing
Graphic format supported : PLT,DXF,BMP,JPG.GIF,PGN,TIF
SPECIFICATIONS:
Model |
QX1620 |
Standard Laser power |
80w |
Optional Laser power |
60w,100w,120W, 130W, 150W |
Engraving Area(mm) |
1600*2000mm |
Laser type |
CO2 Laser tube |
Cutting depth |
Acryl 0-40mm, depending on materials and different laser power |
Driving system |
Stepper motor |
Engraving speed |
0-1000mm/s |
Cutting speed |
0-500mm/s |
Resetting positioning accuracy |
<0.01mm |
Maximum forming character |
English character: 1mm*1mm |
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
Software supported |
ArtCut, PhotoShop CorelDraw, AutoCAD, Lasercut |
Main Graphic format supported |
PLT,DXF,BMP,JPG, GIF,PGN,TIF |
Engraver for Curve surfaces |
Rotary clamp is optional |
Water Cooling |
Yes |
Laser tube(life hours) |
3000-4000hours |
Gross power |
3000w |
Driving system |
Stepper motor |
Recommend Consumable spares |
Laser Tube, Lens and Mirror |
Certificate |
CE FDA |
Assistant Equipment |
Water pump Air pump Exhaust fan |
Optional Equipment |
Water chiller, up and down clump, honeycomb table |

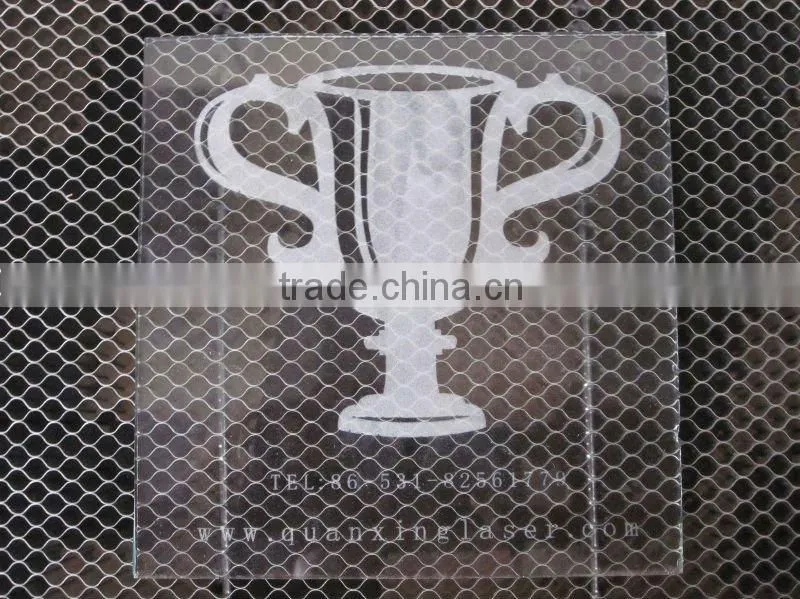

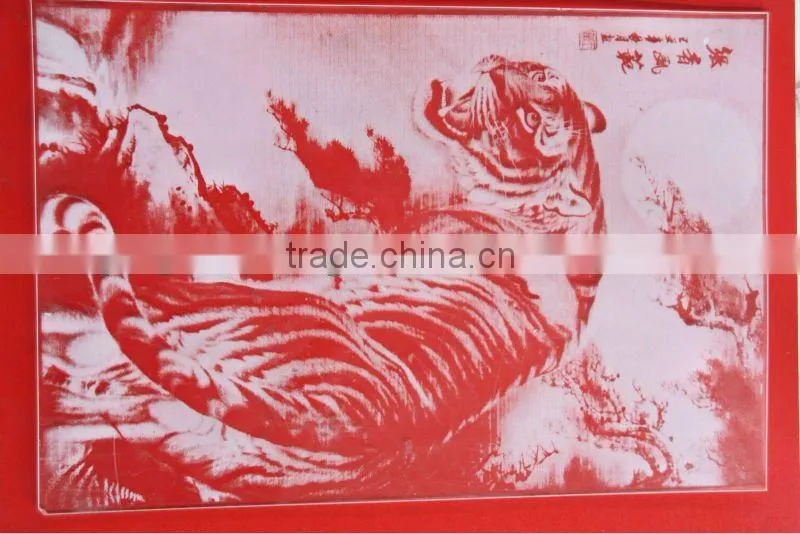

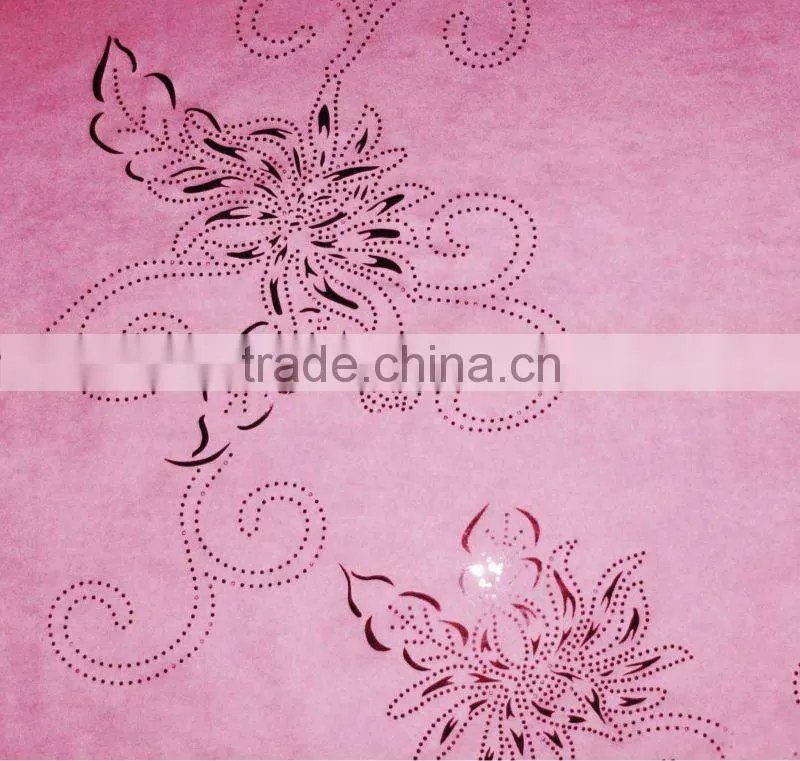

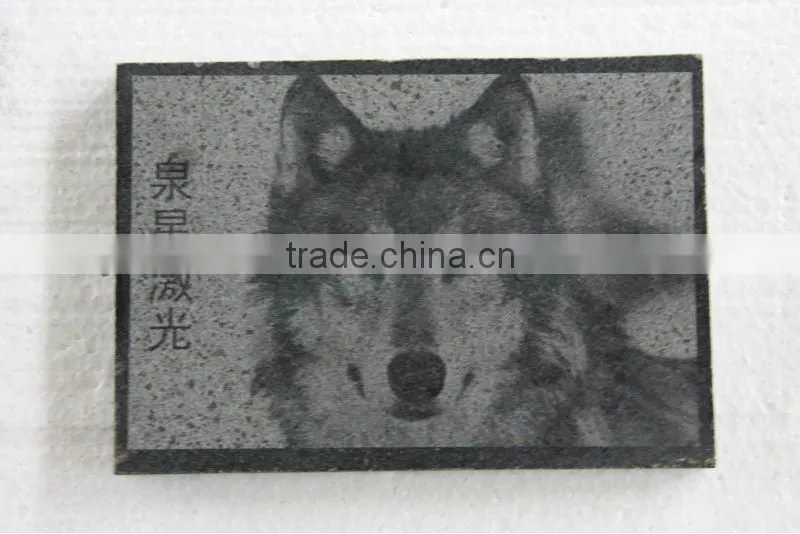

Samples:
