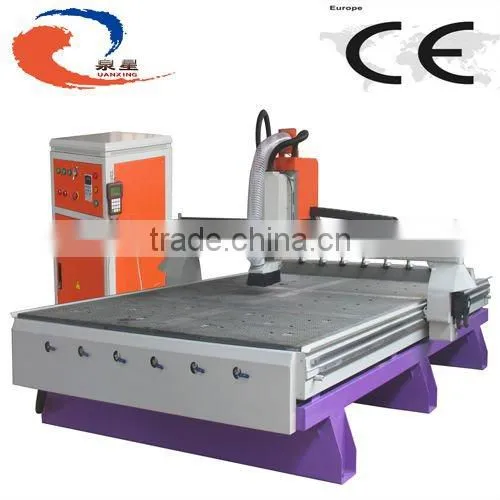

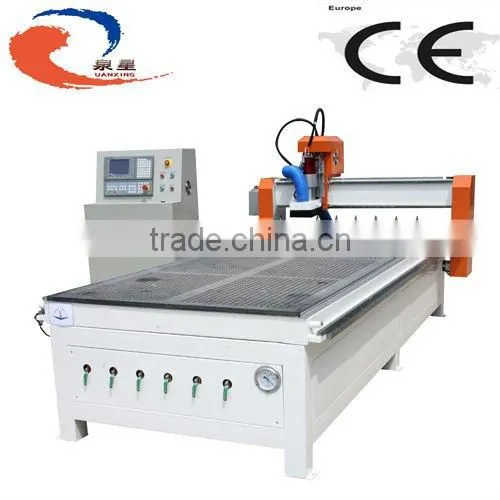

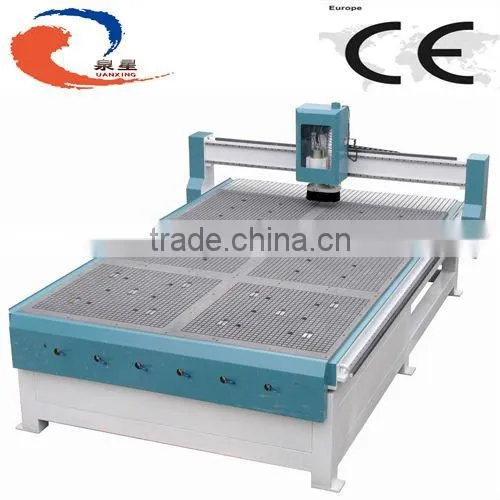

Woodworking Machine/CNC Router QX1325 With USB Interface

Name: Woodworking Machine/CNC Router QX1325 With USB Interface
Brand: Quanxing
SKU: 118937619
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Quanxing Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Quanxing

Model Number QX-1325

Voltage 380v

Certification CE, CE

Specifications

1.Strong gantry carries high power spindles working
2.DSP control panel with USB interface
3.CE certification

Model	QX1325
X,Y working area	1,300x2,500mm
Z Max working area	150mm
Table size	1400x3000mm
Workpiece-holding	mechanical clamps
Working delicacy	0.05mm
X,Y,Z repositioning accuracy	0.05mm
Spindle Power/ Motor	2.2 KW/ water cooling spindle. (optional: 3KW,)
Working Voltage	AC380V/50Hz/60HZ
Power (spindle power is excluded)	1,500W
Spindle Speed	0-24,000RPM
Drive Motors	Stepper system (optional: servo system)
Command Language	G cord.u00.mmg*plt
Operating System	computer control (optional: DSP black handle control system (with USB interface)
Running Environment	Temperature: 0 ~ 45 Relative humidity: 30% ~ 75%
Software operating environment	Windows98/2000/xp

Field of application:

Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould etc.

Applicable material: wood, arylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.

Major applicationd fields: furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft etc.

Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.

Mould industry: wooden mould, aviation wooden mould

Musice instrument: three-dimensional wood carving in relief , and profile cutting.

Performance:

lengthen the X and Y axis, can be used for large scale material processing. Adopted international leading parts, cost performance is high.
They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity. Well adapted to engrave and cut on Density board, solid wood panel, also engrave 3D archaistic furniture.
vacuum table we allow for both Mechanical and Vacuum fixing. What does this mean? If you are processing sheets of material such as MDF, Melamine, Plastic, Foam or any other sheet like material, vacuum hold-down is an excellent solution. If you are processing small or irregular shaped products, heavy material, then you may want to utilize mechanical clamps.
It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly. So it is guaranteed not to out of shape and shake when it works for a long time.
