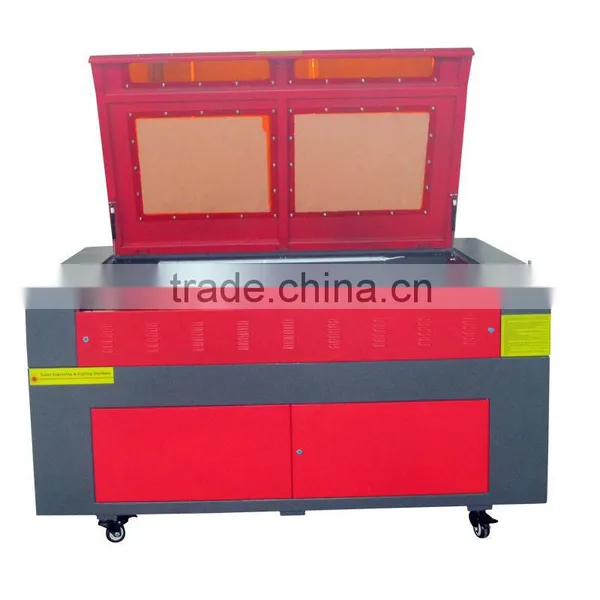

Help CenterLaser Cutting Machine Price 120 * 90 CM 80W
Related Products
-
Texitle Laser Engraving Machine With Honeycomb TableUS$ 2,900 - 5,000MOQ: 1 Set -
Laser Cutting Machine for SaleUS$ 3,000 - 6,000MOQ: 1 Set
-
Hot-sale Laser Cutting EquipmentUS$ 3,000 - 6,000MOQ: 1 Set
-
CNC Laser Cutting Machine QX1290US$ 3,000 - 6,000MOQ: 1 Set
-
QX1290(100W) Textile Laser Cutting MachineUS$ 4,000 - 5,000MOQ: 1 Set
Specifications
1.QX1290 Laser Engraving Machines2.Hot-sale Laser Machine
3.Dual Red Pointer
4.Motorized up&down Table
5.Water Chiller
Laser Engraving Machines ---Hot-sale QX1290 Laser Machine
QX Laser Machine Youtube Working Video:
/watch?v=Exkppp127r0
A: Main application:
Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline, marble, leather, cloth, double-color board, etc. Nonmetal materials
B: Parts and Configuration Included:
1) Double Red Pointer, Wast collect box
2) with front and back feature for super-long materials processing
3) limit switch for safe processing
4)Seperate control system box
5) DSP Offline system with USB
6) Water flow sensor
7) Slat work table with funnel
8) Air pump, water pump, exhaust fan,tool box, etc.

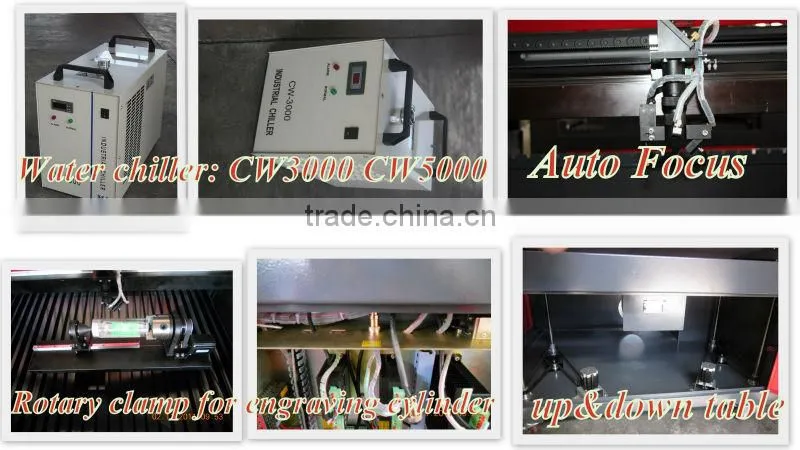

C: Optional Parts:
1)Motorized up&down table
2) Rotary clamp for engraving cylinders
3) Water chiller CW3000 or CW5000 for cooling tube
D: Trading Terms:
@ Delivery time:
It is 5-10 working days after your order.
@ Favorable Policy:
We'd like to give you some discount or send you some spare parts free of charge according to quantity of your order, especially for distributors.
@ Warranty:
12 month warranty for every part of machine, 3 months for laser tube
@ After-sales service:
CD, Video, User Manual to guide you how to install, operate, maintain machine step by step
E: Techncial Parameter:
Product model |
QX1290 |
Maxi working area |
1200*900mm |
Laser power (standard configuration) |
80W |
Options: long life time laser tube 80W, 100W,150W,180W | |
Laser Types |
Hermetic And Detached CO2 Laser Tube |
Engraving speed |
0-75,000mm/min |
Cutting speed |
0-40,000mm/min |
Location precision |
≤0.01mm |
Resetting positioning accuracy |
≤0.01mm |
Power supply |
AC 220V/50Hz |
Gross power |
<1,000W |
Operating temperature |
0 - 45° |
Operating humidity |
5 - 95% |
Minimum shaping character |
English 1×1mm |
360°slope engrave |
Yes |
Driving system |
stepper |
Cooling mode |
Water-cooling and protection system |
Auxiliary Devices |
Exhauster And Exhaust Pipe |
Software |
Lasercut 5.3 |
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Optional |
Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, Filtrator |
Optional water cooling system |
water pump, water chiller, air cooler |

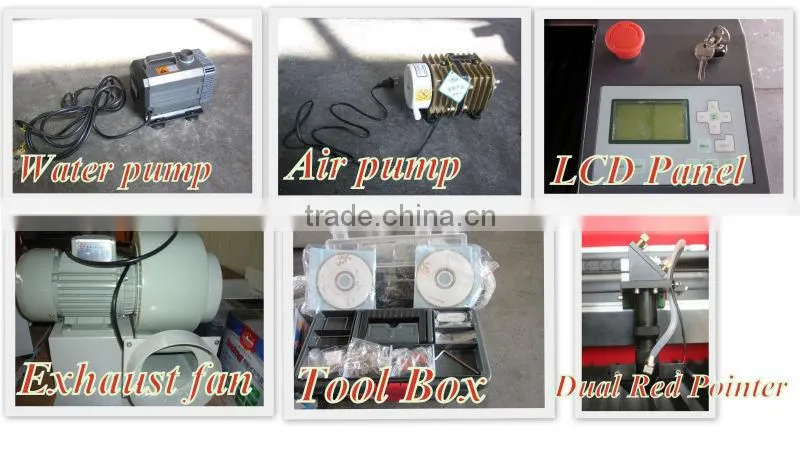

F: Standard Parts of Laser Machine:
G: Optional Parts for Laser Machine:
H: Sample Pictures:

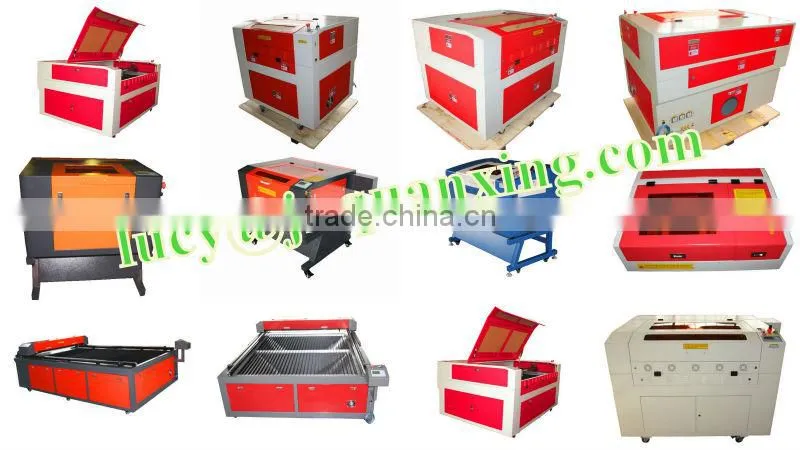

I: Other Models of Laser Machine
J: Contact Information:
