Product Description

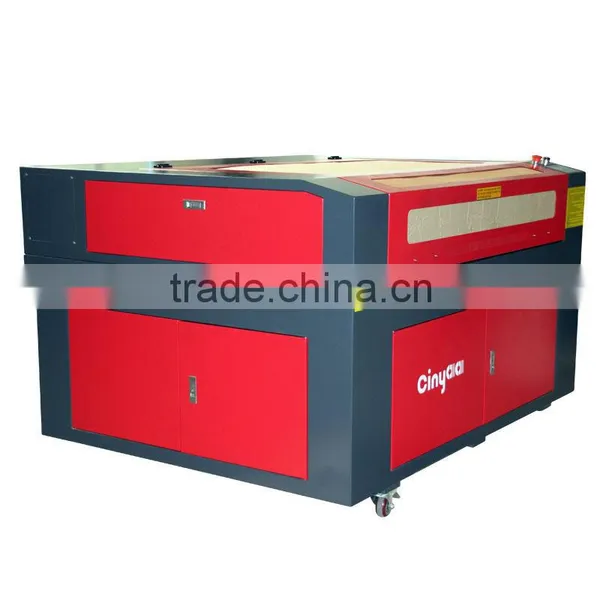

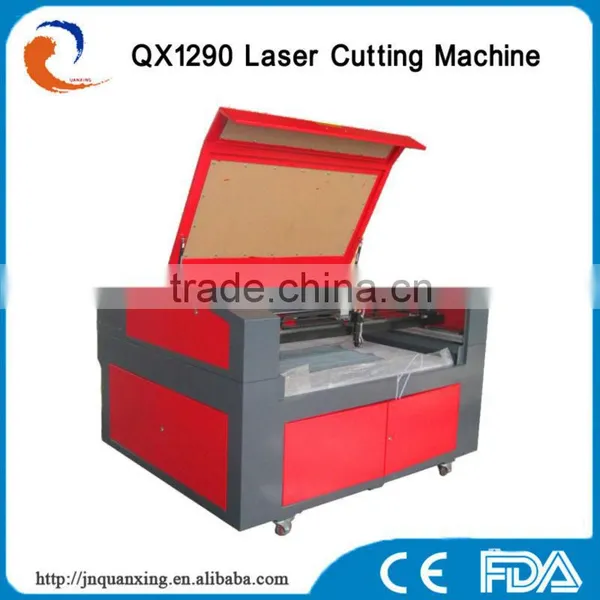

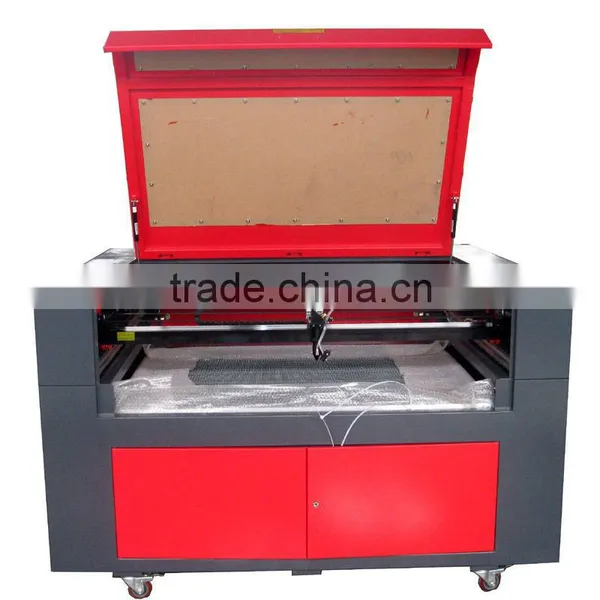

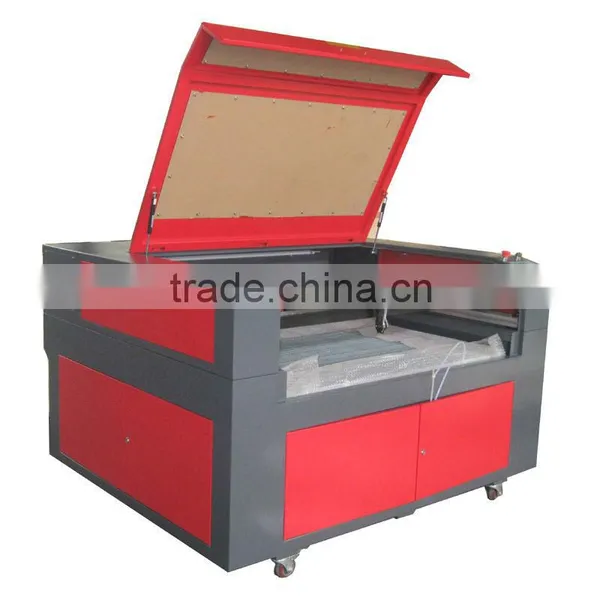

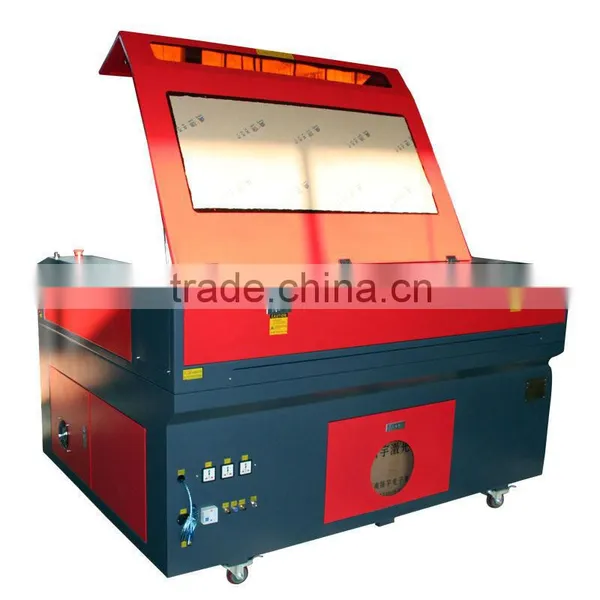

QX1290 80W Industrial Laser Cutting Machine
Application:
Applicataion materials: Bamboo, jade, marble, glass, crystal, plastic, garments, paperleather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and other non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Features: see following, all the photos are real close-up photos for your checking:

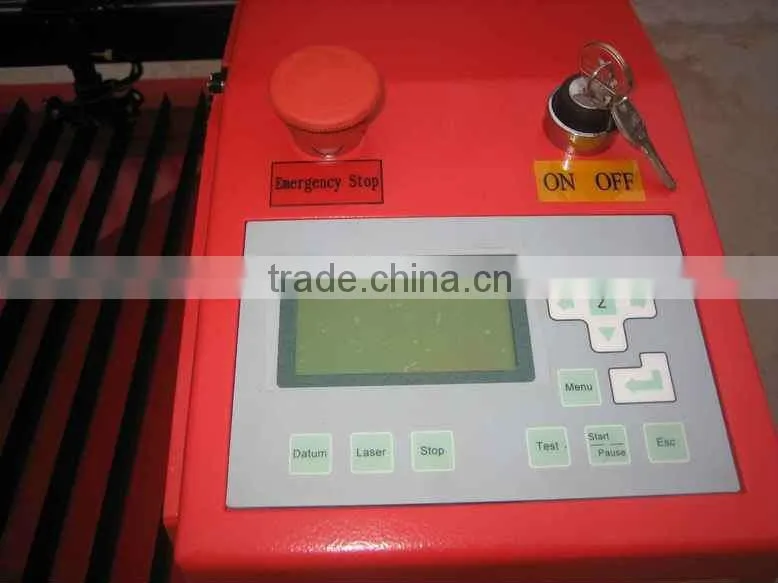

1. Easy to Use LCD Control Panel with Emergency Stop and KeySwitch.

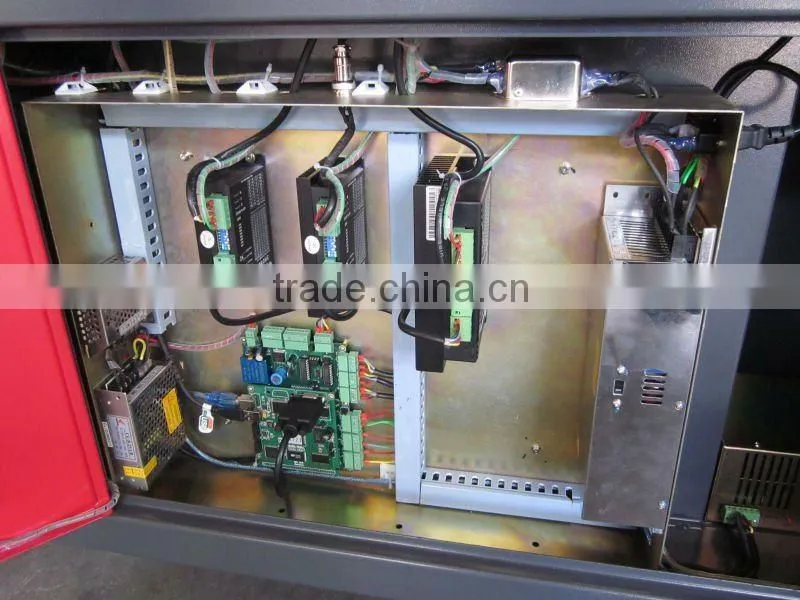

2. Professional and advanced controller for high performance. The Computer downloads the project to the Controller and it does all the work, leaving the computer and operator free to work on the next project, has 128MB RAM onboard to hold many of your largest projects without re-downloading from your computer.

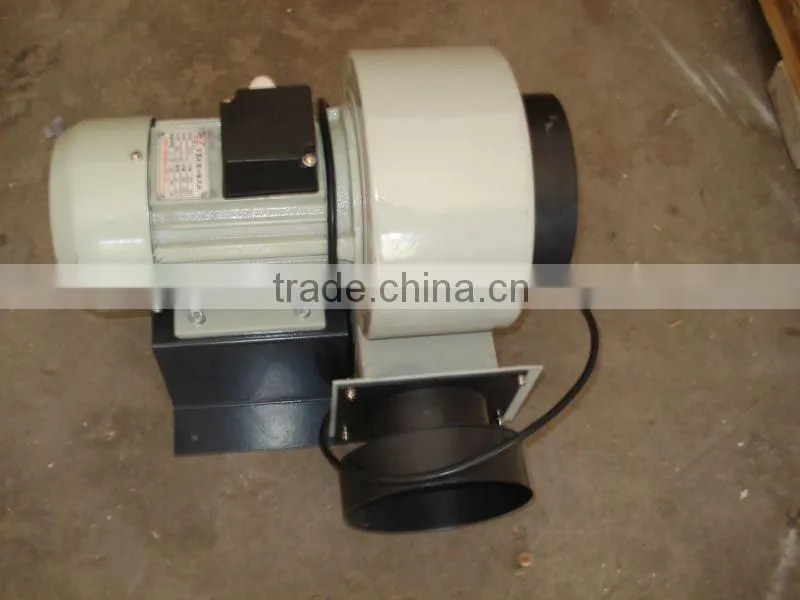

3. Exhaust fan, making air flow to remove dust and fumes from the work area of the laser machine.
4. Water flow sensor to protect laser tube. This check sensor ensures the laser will not be allowed to fire without proper coolant flow.

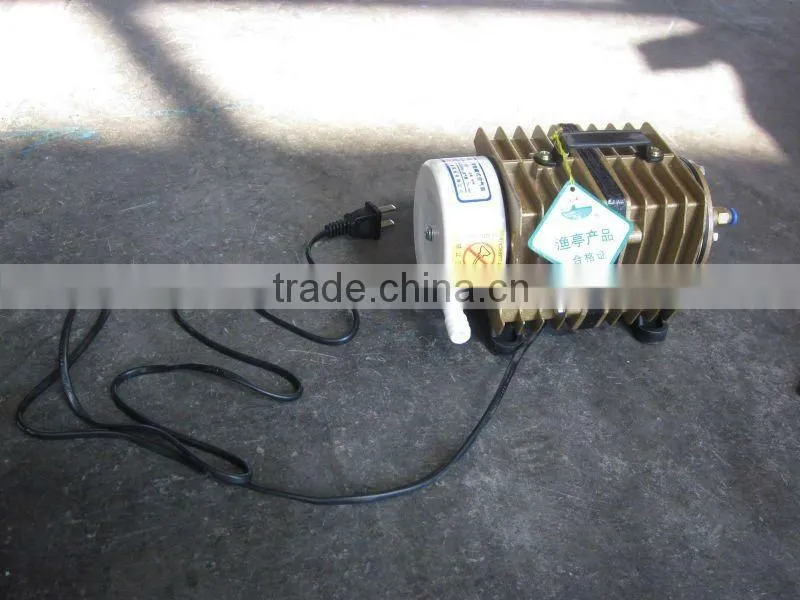

5. Air pump. It has 3 functions: i. push fumes away from the laser's focal lens. ii. to push air into the material's kerf as created by the laser beam. iii. air will help to cool the material, to avoid warp or shrink because of hot temperature.

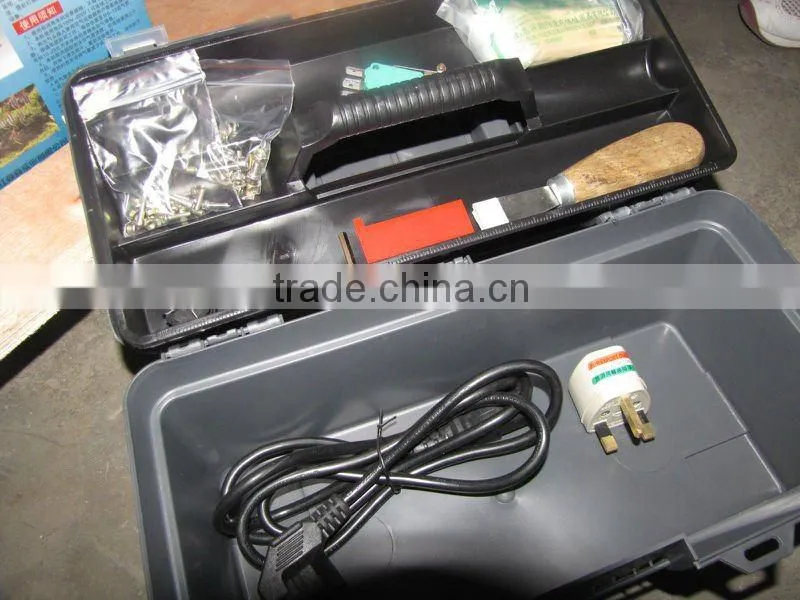

6. Tool box, including full set of tools for maintance
7. The Inside Light. providing enough light to see what is happening inside.

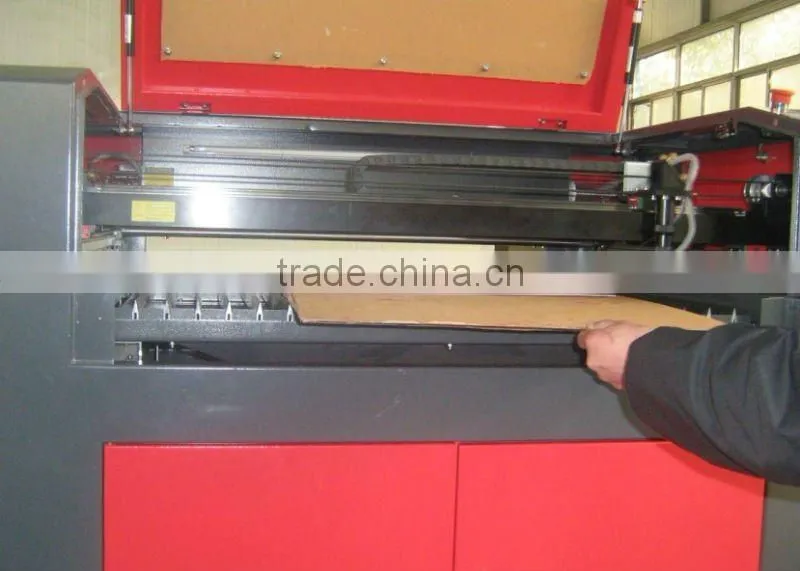

8. Pass-Thru Door, for long thick object working.

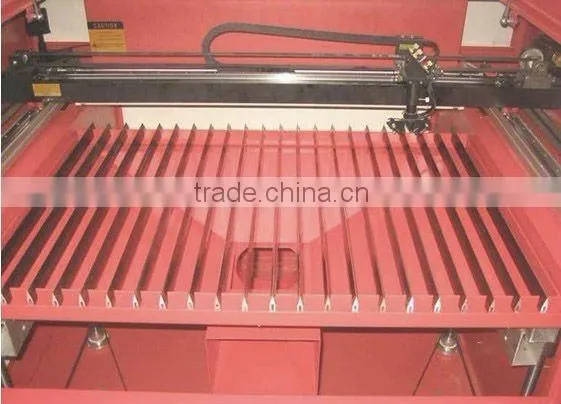

9. Funnel and drawer device, under the working table to collect the waste during work, if install with honeycomb table, it will very excellent sucking function.
Specification:
Model |
QX1290 |
Standard Laser power |
80w |
Optional Laser power |
60w,100w.130w,150w,180w |
Engraving Area(mm) |
1200 x 900mm |
Engraving speed |
0-1000mm/s |
Cutting speed |
0-600mm/s |
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
Motorized up-down distance |
280mm |
Laser tube(life hours) |
3500-4000hours(ordinary), 8000-10000hours(reci) |
Gross power |
1800w |
Laser output control |
0-100% software setting |
Software supported |
Direct printout from Corel, CAD, PHOTOSHOP,WORD, etc. |
Main Graphic format supported |
PLT/DXF/BMP/AI (Direct output) |
Optional auxiliary equipment:
1. Red dot pointer
2. Motorized up-down table
3. Water chiller
4. Rotary with chuck/roller
5. Auto focus
6. Honeycomb worktable

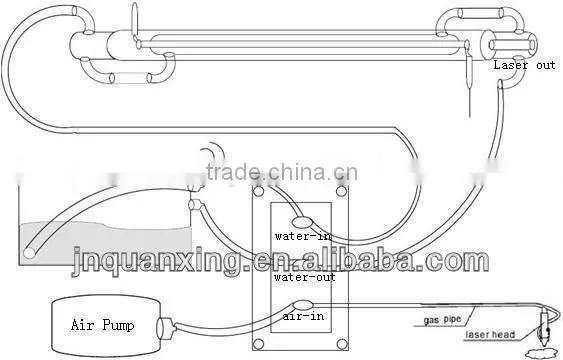

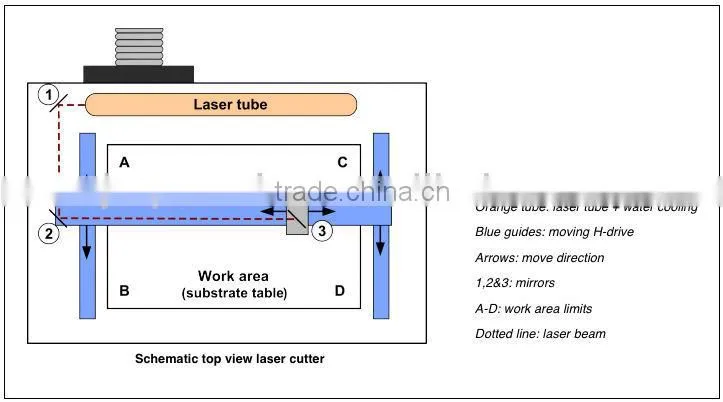

Laser Path and machine structure drawing:

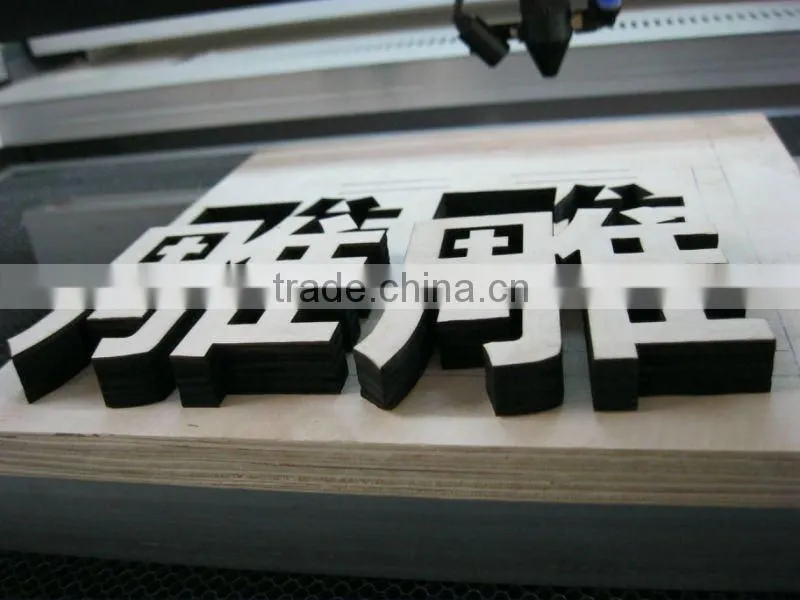

Sample photos:
- 12 Months for Machine
- 8 Months for laser tube, lens and mirror
- Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
