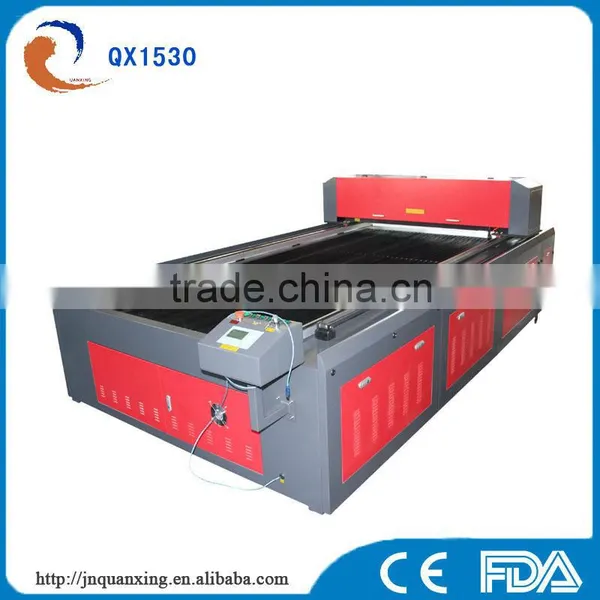

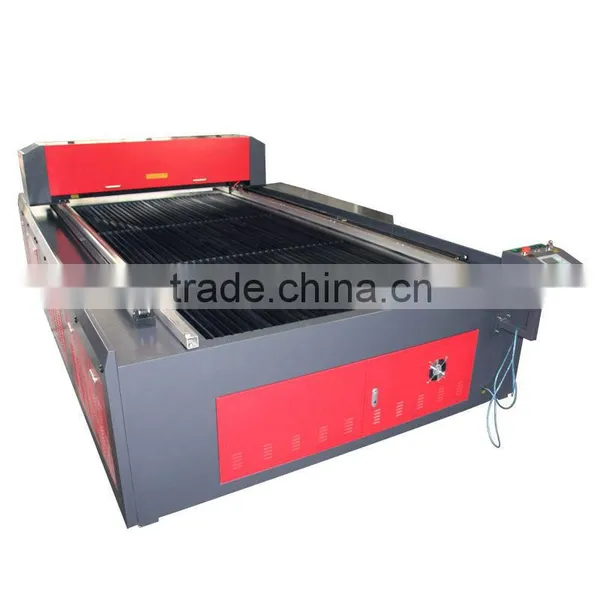

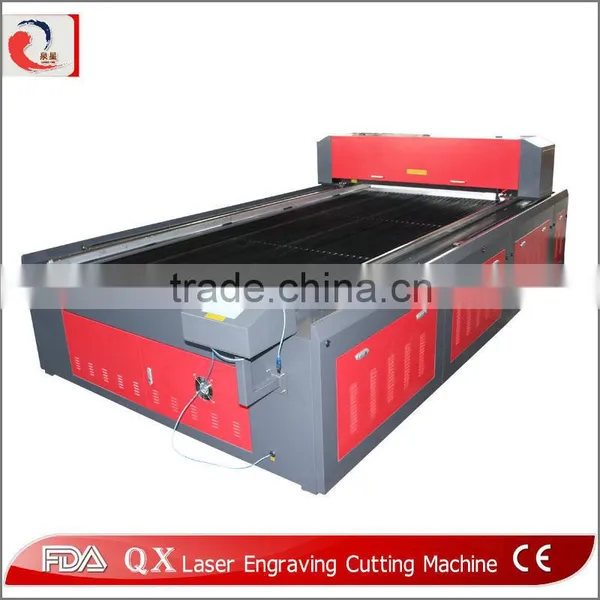

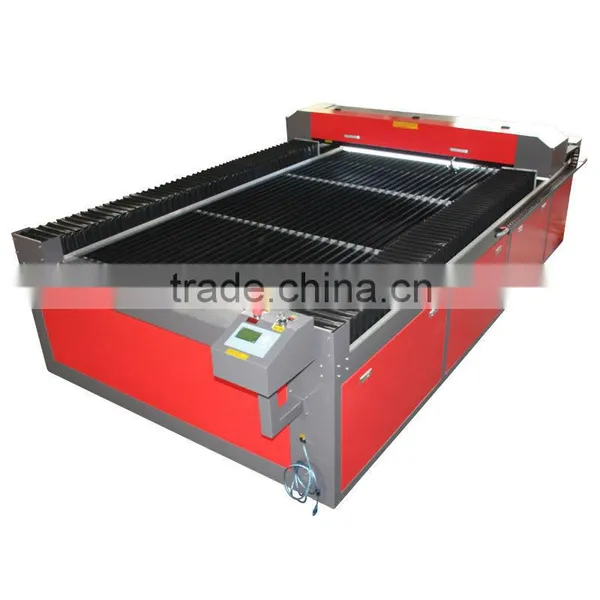

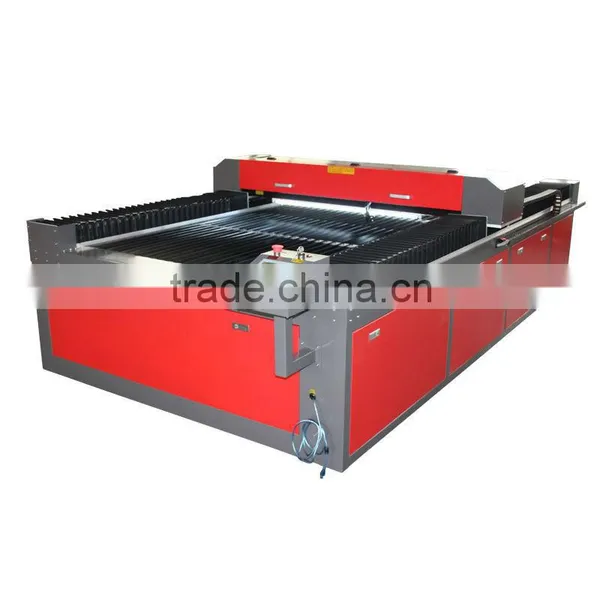

QX1530 150watt Large Laser Cutter Machine for wood

Specifications

Strong laser Power
Flying laser beam path design
Excenlent cutter for wood/MDF/textile/clothing
Large flatbed cutter machine

QX1530 150watt Laser Cutter Machine/Laser Cutting Machine/Laser Cutter/Laser Cutting Machinery





Features:



1) Opened worktable,widely cutting.



2) Fast speed,smooth cutting and small joint.



3) Totally enclosed lightway, powerful security.



4) Imported linear guideway, higher precision.



5) This machine adopts the DSP data control technique, and incorporate design profile structure, which creates the durative, fast curve cutting function and optimize the shortest processing path function in the same field, so improves the working efficiency greatly.



6) High security. i. Detailed warning and instruction label complied with CE; ii. Double limit switch protection on XYZ axis, preventing the bump of laser head; iii. water flow sensor to inspect water circulation in laser tube, which can protect the laser tube.



Specification:

Model	Strong Power laser cutter for wood
Standard Laser power	150w
Optional Laser power	60w,100w,120W, 130W, 150W
Engraving Area(mm)	3000mm x 1500mm
Laser type	CO2 Laser tube
Cutting depth	Acryl 0-40mm, depending on materials and different laser power
Engraving speed	0-1000mm/s(Step motor);3000mm/s(Servo motor optional)
Cutting speed	0-400mm/s(Step motor); 800mm/s(Servo motor optional)
Resetting positioning accuracy	<0.01mm
Maximum forming character	English character: 1mm*1mm
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Software supported	ArtCut, PhotoShop (Conversion output) CorelDraw, AutoCAD, Lasercut (Direct output)
Main Graphic format supported	PLT/DXF/BMP/AI (Direct output)
Engraver for Curve surfaces	Rotary clamp is optional and used to engrave on curve surfaces
Water Cooling	Yes
Laser tube(life hours)	3500-4000hours, optional: 8000-10000hours(Reci)
Gross power	3000w
Driving system	Stepper motor
Machine size	3300*2100*1020mm
G.W.	1000KGs
Packing size	3400*2200*1320mm
Recommend Consumable spares	Laser Tube, Lens and Mirror
Certificate	CE&FDA&ISO

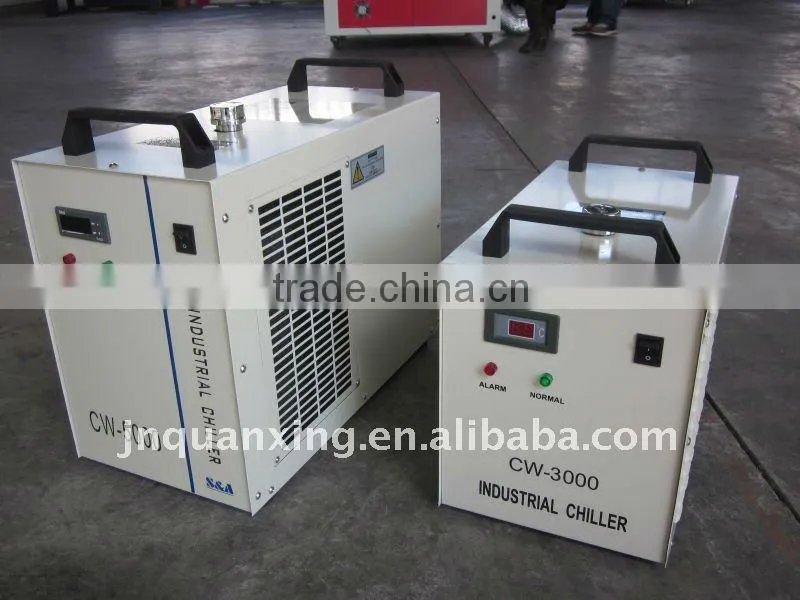

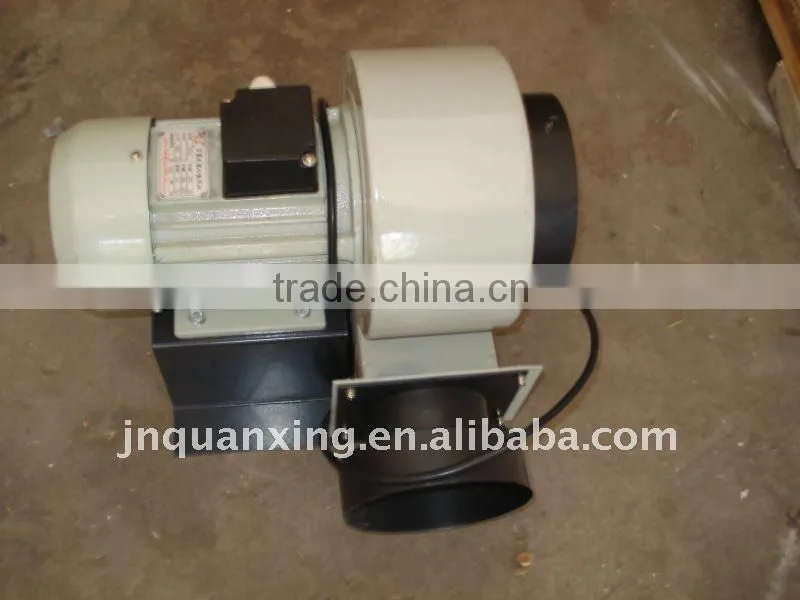

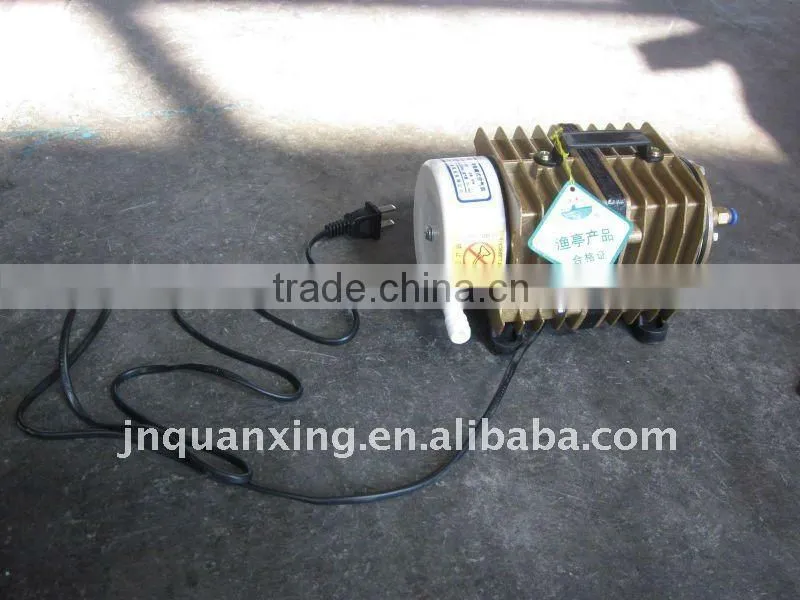

Assistant Equipment:	Red dot pointer, Water pump, Air pump Exhaust fan,Blade worktable



Detailed Photos and sample photos:

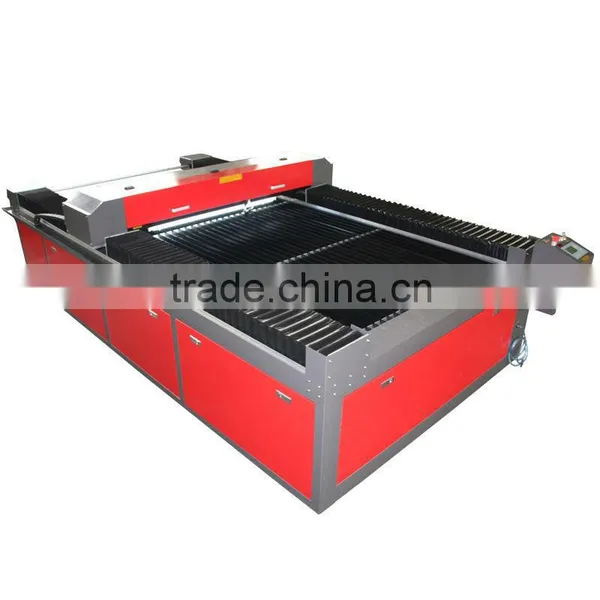

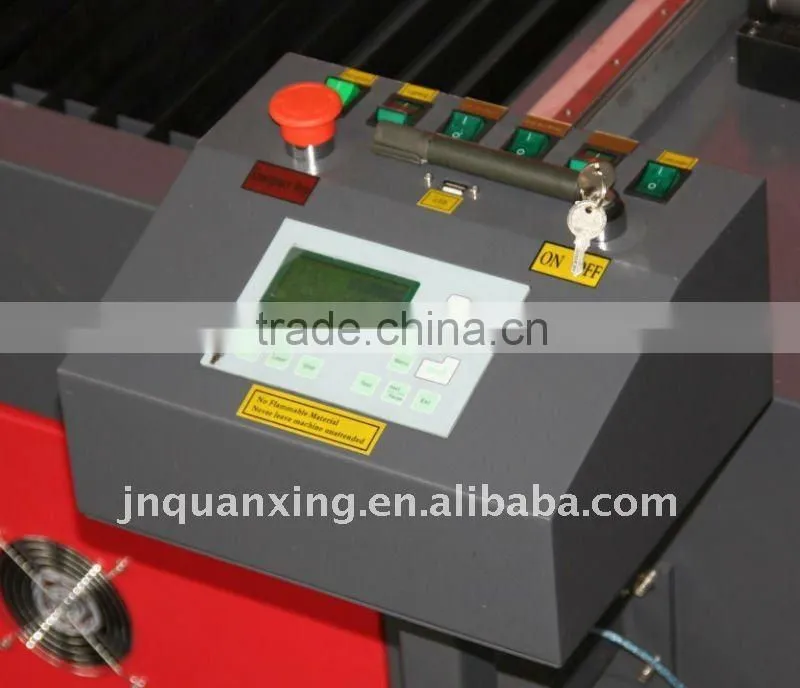

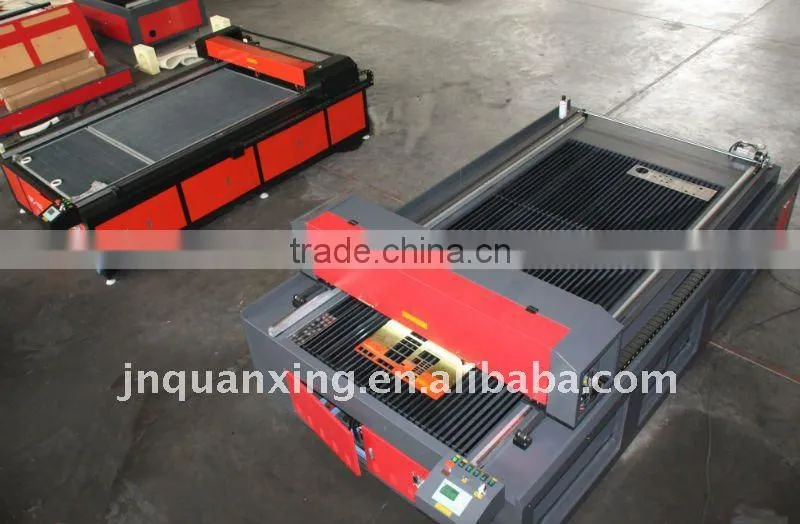

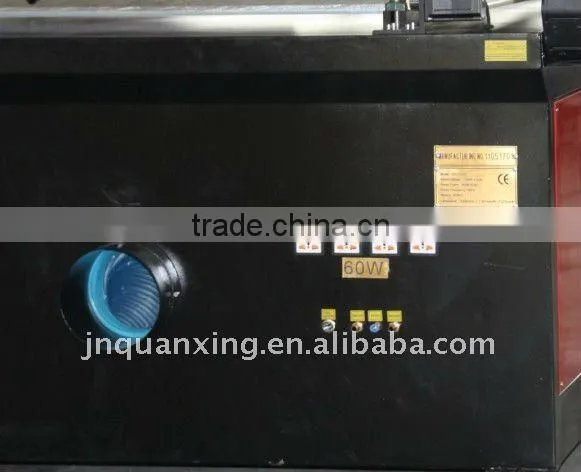

Following are real close-up photos:

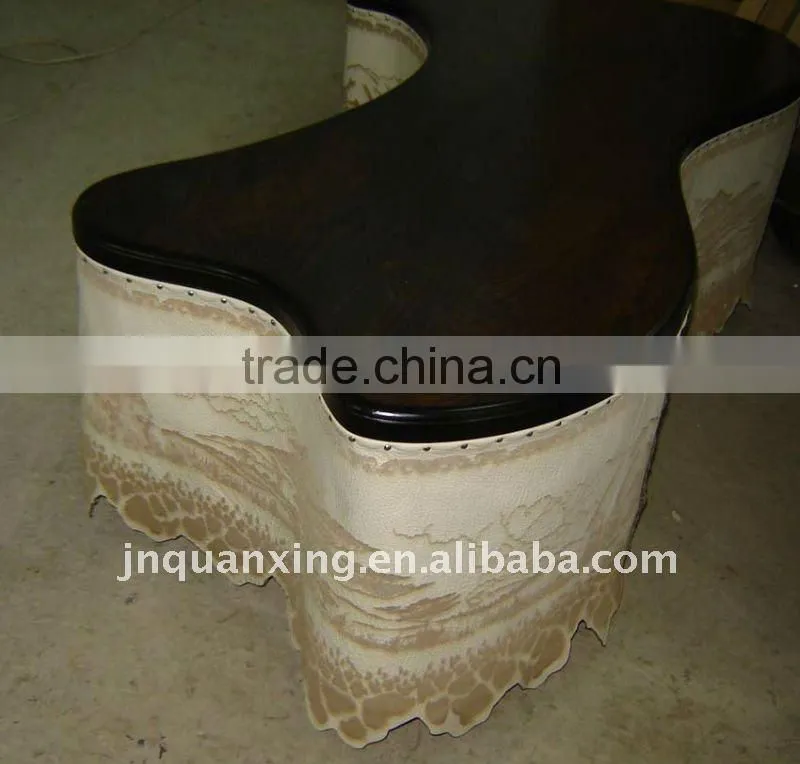

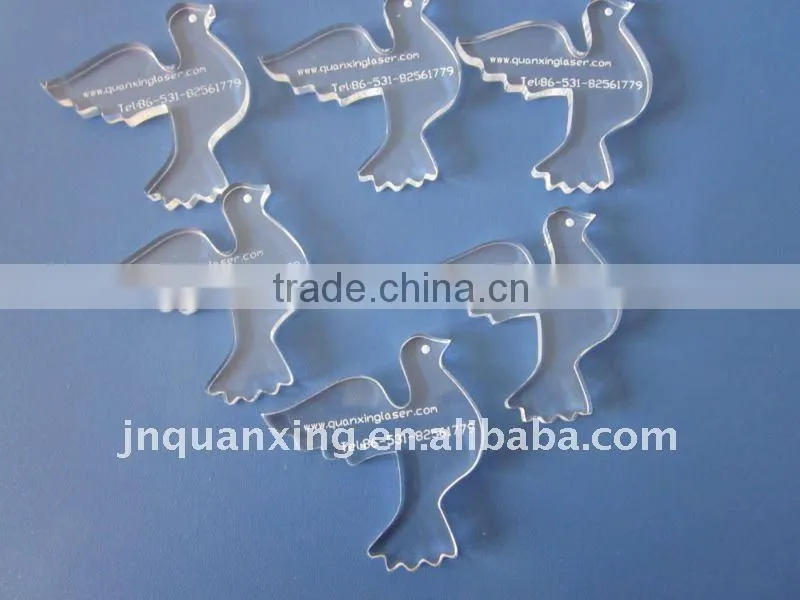

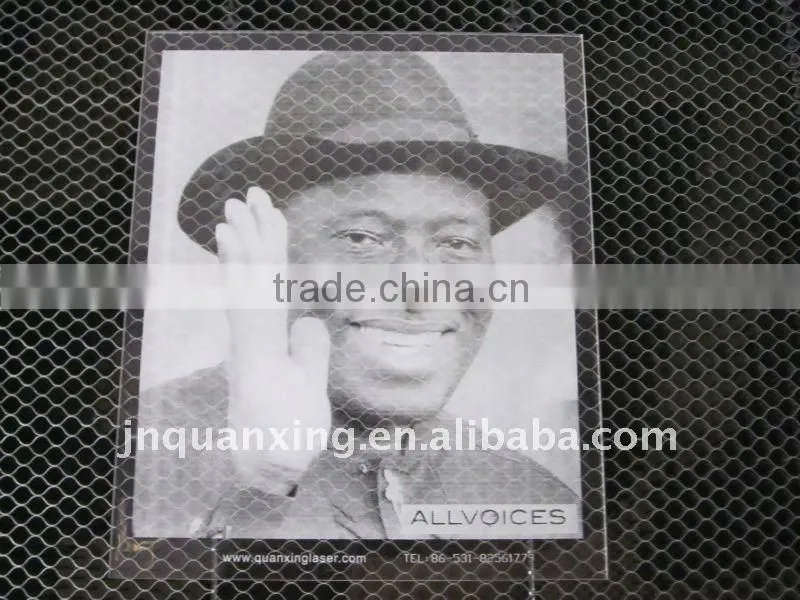

Sample photos:

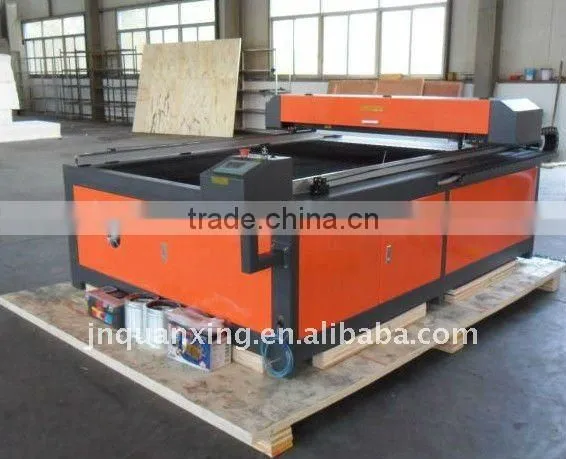

2. Packed by Plywood casue with protective steel bar to protect machine during shipping

1. 12 Months for Machine
2. 8 Months for laser tube, lens and mirror

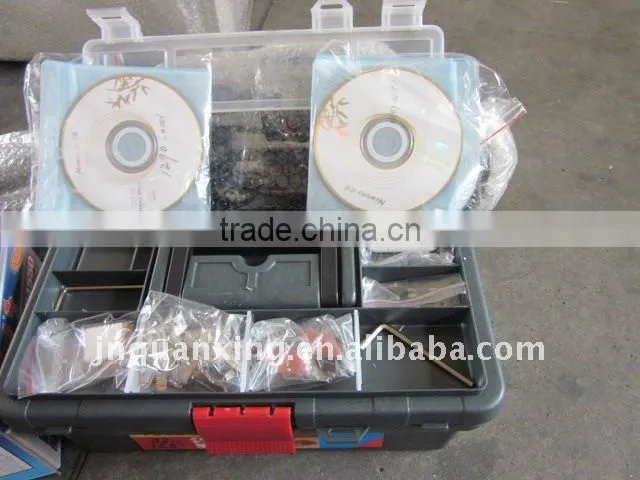

3. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
