CO2 Laser Machine for Non Metallica Materials

CO2 Laser Machine for Non Metallica Materials thumbnail-1
CO2 Laser Machine for Non Metallica Materials thumbnail-2
CO2 Laser Machine for Non Metallica Materials thumbnail-3
CO2 Laser Machine for Non Metallica Materials thumbnail-4
CO2 Laser Machine for Non Metallica Materials thumbnail-5
CO2 Laser Machine for Non Metallica Materials thumbnail-6
CO2 Laser Machine for Non Metallica Materials photo-1

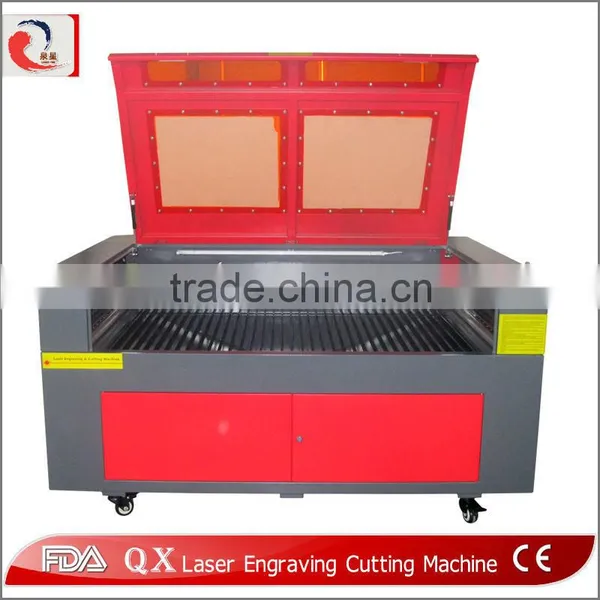

CO2 Laser Machine for Non Metallica Materials photo-2

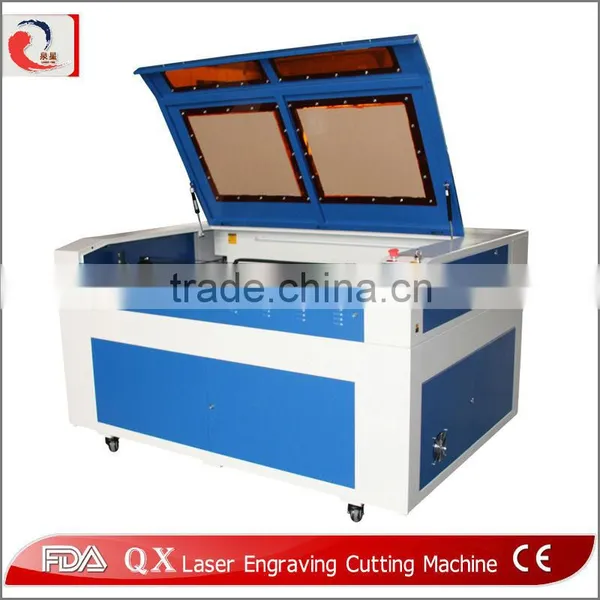

CO2 Laser Machine for Non Metallica Materials photo-3

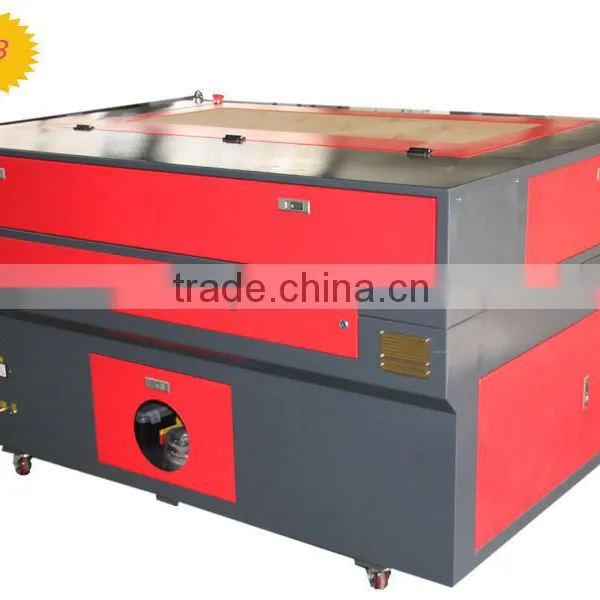

CO2 Laser Machine for Non Metallica Materials photo-4

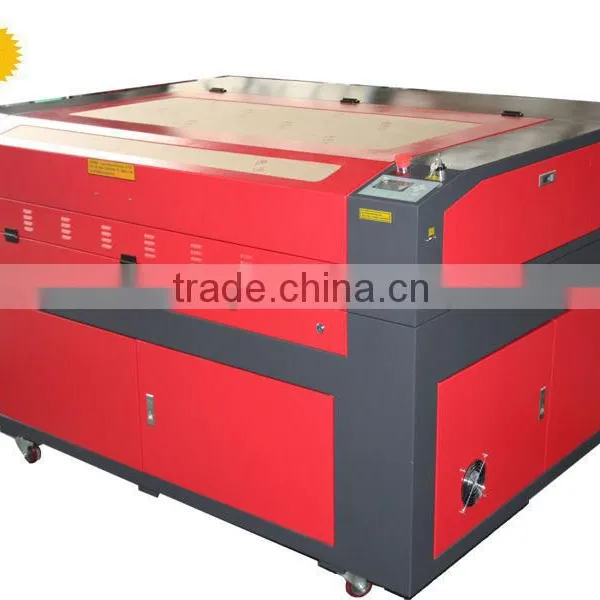

CO2 Laser Machine for Non Metallica Materials photo-5

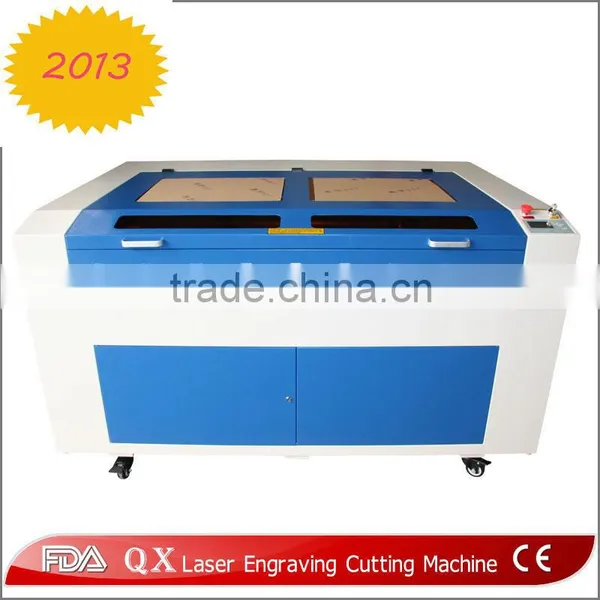

CO2 Laser Machine for Non Metallica Materials photo-6
US$ 3,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Contact Supplier Request Quote Chat Now
Jinan Quanxing Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type CO2
Applicable Material Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness 1-30mm
Cutting Area 1600x1000mm
Cutting Speed 01-1000mm/s
CNC or Not Yes
Cooling Mode Water Cooling
Control Software DSP
Graphic Format Supported AI, PLT, DXF, BMP, DST, DXP, Other, AI, PLT, DXF, BMP, DST, DXP, PLT\DXF\BMP\JPG\GIF\PGN\TIF
Place of Origin Shandong, China
Brand Name QX
Model Number laser machine QX1610
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Laser machine for non metallica materials
1:Working area 1600x1000mm
2: Water cooling system option
3:DSP/PC controller



Laser machine


1>Working area 1600x1000mm
2> Water or air cooling system option
3>DSP/PC controller option



Feature:

1 . Widely Laser Tube Power Using: 60W, 80w, 100w and 130w
       Can be installed with Motorized Up-Down Working Table according to customer inquiry

2 . Strong Laser Head with easy adjusting
3 . CE standard switches design
4 . 1:2 Wheel Speed to keep high quality cutting effect
5 . 3 Phase motors works higher speed than common motor



Specification:



Model

QX-1610

Standard Laser power:

80w

Optional Laser power:

60w.100w.120w 130w

Engraving Area(mm)

1600*1000

Gross power

1600w

Laser type:

CO2

Cutting depth:

Acryl 0-40mm, others material(varied according to the nature)

Engraving speed :

0-1000mm/s

Cutting speed:

0-600mm/s

Resetting positioning accuracy:

<0.01mm

Maximum forming character:

1*1mm

Power supply:

220V±10% 50HZ or 110V±10% 60HZ

Software supported:

ArtCut, PhotoShop (Conversion output)

CorelDraw, AutoCAD, Lasercut (Direct output)

Main Graphic format supported:

PLT/DXF/BMP/AI (Direct output)

Engraver for Curve surfaces:

Rotary clamp is optional and used to engrave on curve surfaces

Water Cooling:

Yes

Maximum Height of
Materials to Engrave:

270mm/10.63in.(Up and down adjustable by motor)

Laser tube(life hours):

3000-4000 hours

Certificate

CE FDA

Assistant Equipment:

Water pump, Air pump , Exhaust Fan

Spare Parts Recommend (R):

Laser Tube ,Lens, mirror

Options: Motorized up-down table, Rotary clamp, Water chiller, Auto focus, Honeycomb worktable






Product Description





Machine details:



 CO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materials

Assistant Parts:

CO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materials




Packaging & Shipping



Packing details:

CO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materials



Application Sample:



 CO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materialsCO2 Laser machine for non metallica materials




Company Information



We specialize in manufacturing CNC routers,laser engraving and cutting machines, laser engraver and laser cutter,laser engraving machine and laser cutting machine plasma cutting machines and cutting plotters,Welcome to visit our factory in Jinan city.
