Specifications
laser engraver co21)1290*900mm on nonmetal materials
2) English Video&manual instruction.
3) USB

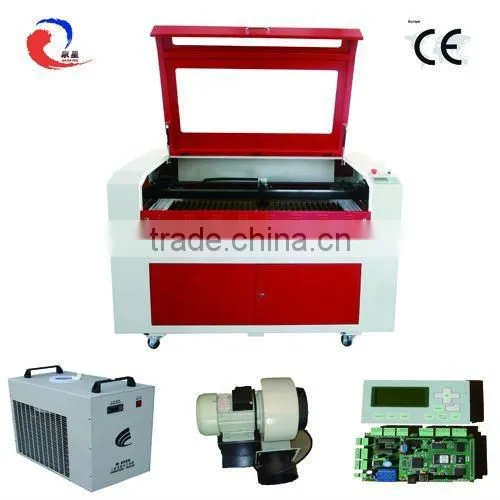

QX-1290 laser engraver co2 :
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Specifications:
Name: |
QX-1290 laser engraver co2 |
Processing area |
1200mm*900mm (4feet*3feet) |
Laser power |
60W |
Laser type: |
Co2 glass laser tube |
Software: |
Laser cut 5.3 |
Dimension: |
1870mm*1480mm*1250mm |
Engraving speed |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
:0-20 Plexiglas (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0.8mm, Chinese 2mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC220V/50HZ or 110V/60HZ or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 3 months |
Option: |
Rotary attachment for column materials |
Operation: |
Video to tell customer how to operate the machine |
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.

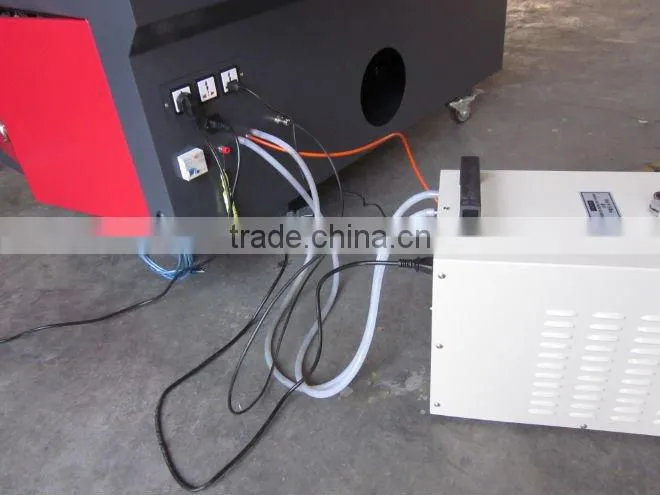

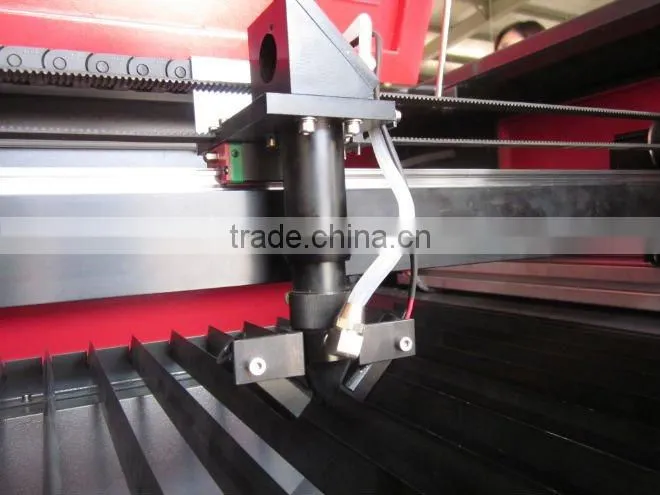

Relative pictures:

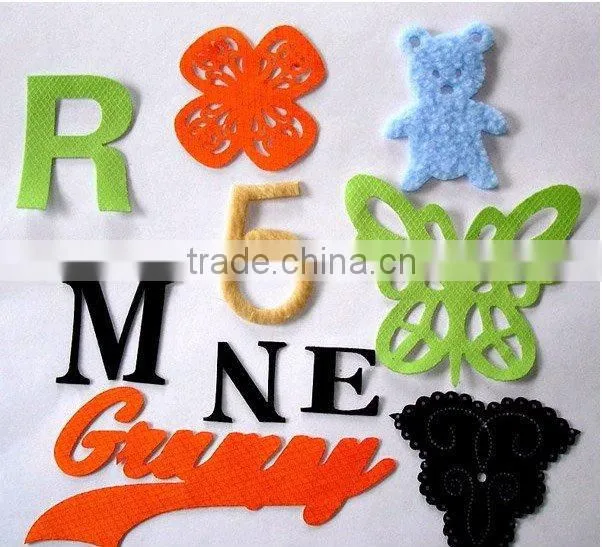

Application Samples:
