Double Heads Laser Cutting Table for Textile QX-1290
- QINGDAO
- T/T Credit Card PayPal
You May Like
Product Details
| Laser Type | CO2 | Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | |
| Cutting Thickness | 1-20mm | Cutting Area | 1200x900mm | |
| Cutting Speed | 0-400mm/s | CNC or Not | Yes | |
| Cooling Mode | Water Cooling | Control Software | DSP | |
| Graphic Format Supported | AI, PLT, DXF, BMP, DST, DXP | Place of Origin | Shandong, China | |
| Brand Name | QUANXING | Model Number | QX1290 | |
| Certification | CE, ISO, SGS |
Product Description
Specifications
double heads laser cutting table for textile1.Ideal engraving and cutting
2.Cutting speed 600mm/s
3.up and down working tabl

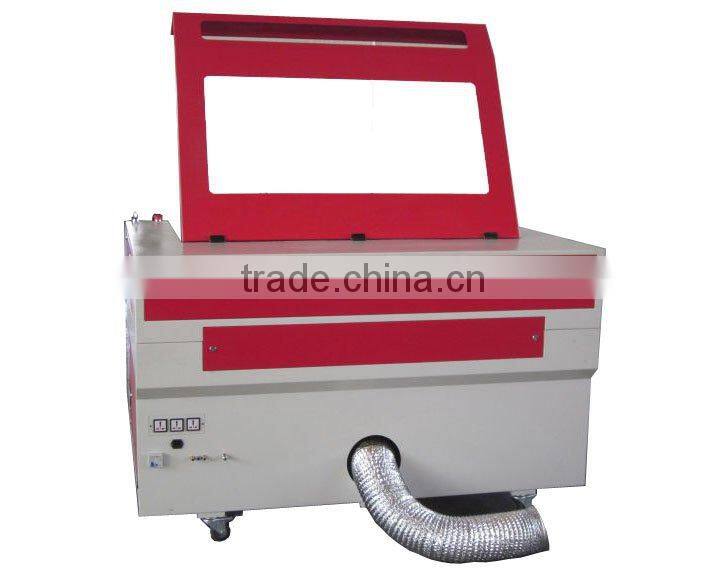

Double heads laser cutting table for textile QX-1290
Features:

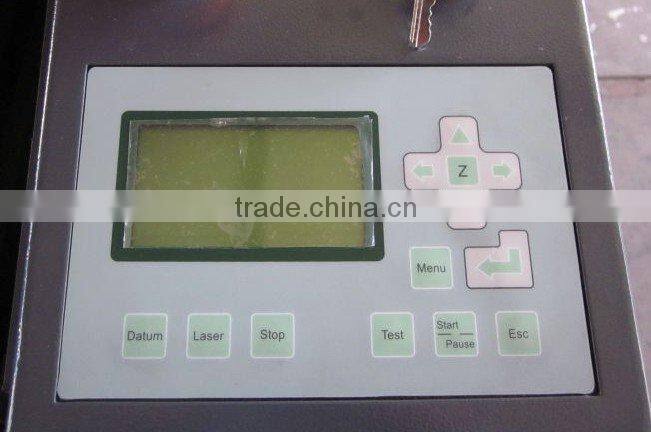

1. This machine adopts the DSP data control technique, and incorporate design profile structure, which creates the durative, fast curve cutting function and optimize the shortest processing path function in the same field, so improves the working efficiency greatly.
2. It adopts the International standard linear guide rail, which makes machine running more smoothly and accurately.
3. High security. i. Detailed warning and instruction lable complied with CE; ii. Most advanced dual limit switch protection on XYZ axis, preventing the bump of laser head; iii. High quality water flow sensor to inspect water circulation in laser tube, which can protect the laser tube.

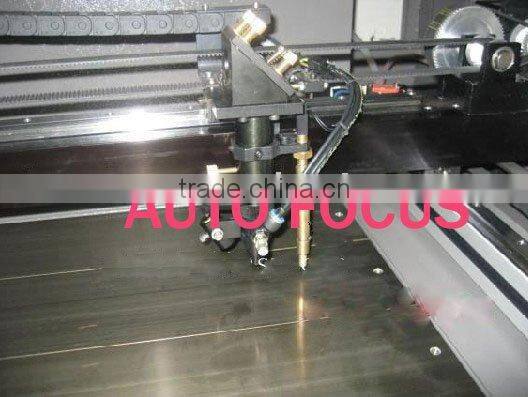

3. It adopts the most advanced focus method: dual red light positioner, which makes laser focus more easier, accurate and more personalized,no need any focusing tools.
3. It adopts up and down style by the step motor, which makes the motorized up and down working table steadier, smaller noise and faster speed and so on.
4. Front & Rear entry for long plate to pass through.
Specification:
Model | QX1290 |
Standard Laser power | 80w |
Optional Laser power | 60w,100w,120W, 130W, 150W |
Engraving Area(mm) | 1200x900mm/ 47.24x35.43in. |
Laser type | CO2 Laser tube |
Cutting depth | Acryl 0-20mm, depending on materials |
Engraving speed | 0-1000mm/s |
Cutting speed | 0-600mm/s |
Resetting positioning accuracy | <0.01mm |
Maximum forming character | Figure/English: 1x 1mm |
Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
Software supported | ArtCut, PhotoShop (Conversion output) CorelDraw, AutoCAD, Lasercut (Direct output) |
Main Graphic format supported | PLT/DXF/BMP/AI (Direct output) |
Engraver for Curve surfaces | Rotary clamp is optional and used to engrave on curse surfaces |
Water Cooling | Yes |
Max thickness of engraved object | 280mm |
Laser tube(life hours) | 3500-4000hours |
Gross power | 1600w |
Driving system | Stepper motor |
Machine size | 1750*1310*1050mm |
G.W. | 390kg |
Packing size | 1850*1410*1150mm |
Recommend Consumable spares | Laser Tube, Lens and Mirror |
Certificate | CE, FDA |

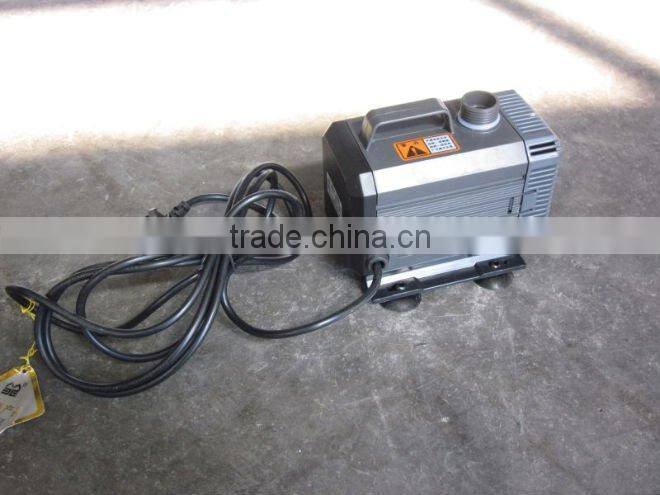

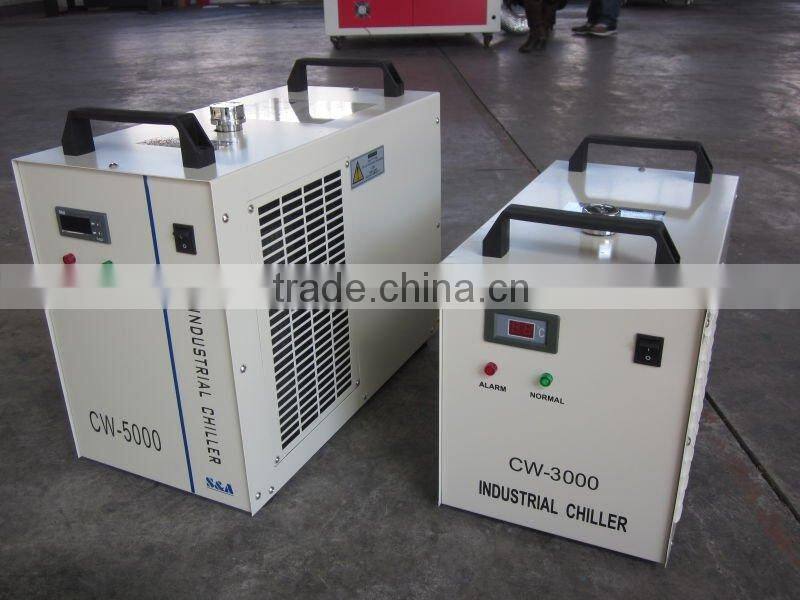

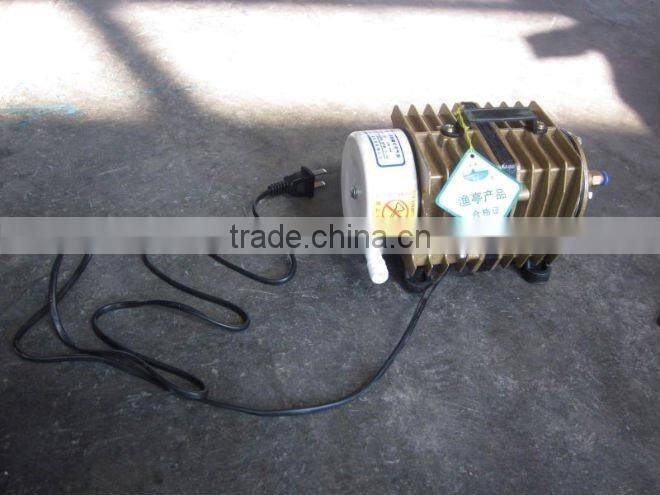

Assistant Equipment: |
|

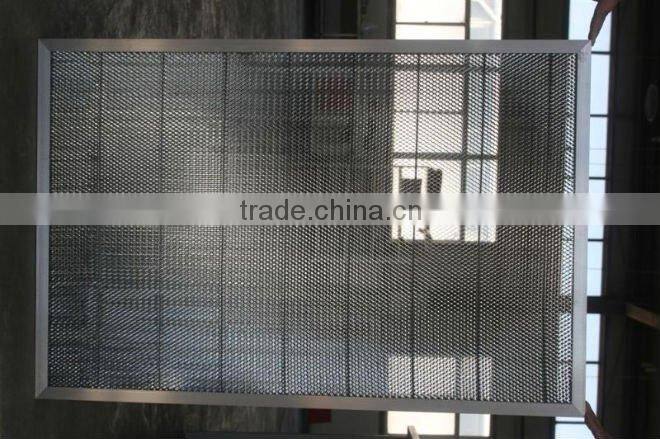

Optional Spare Parts: |
|

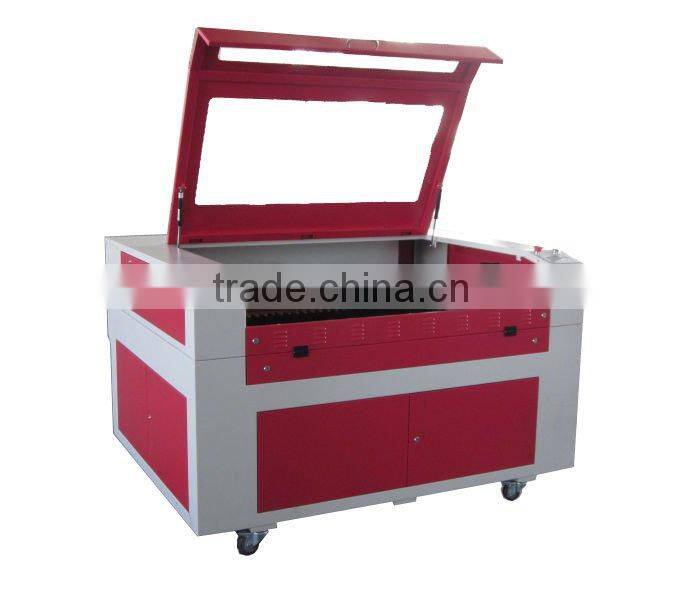

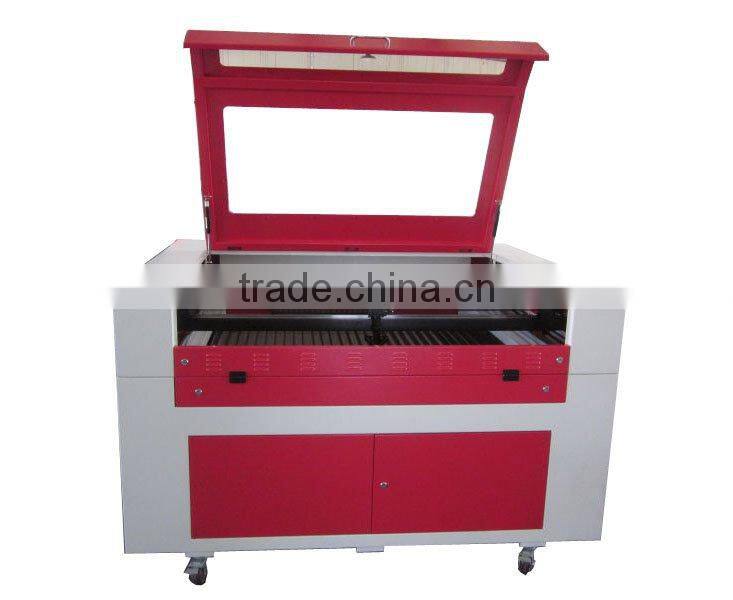

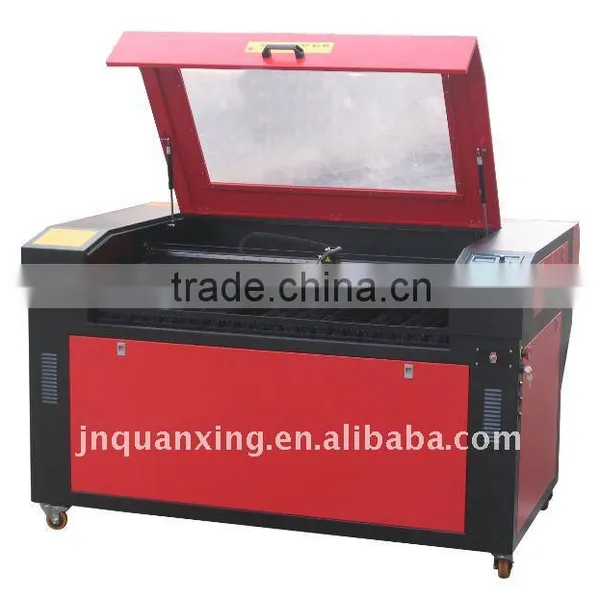

More photos about machine:
