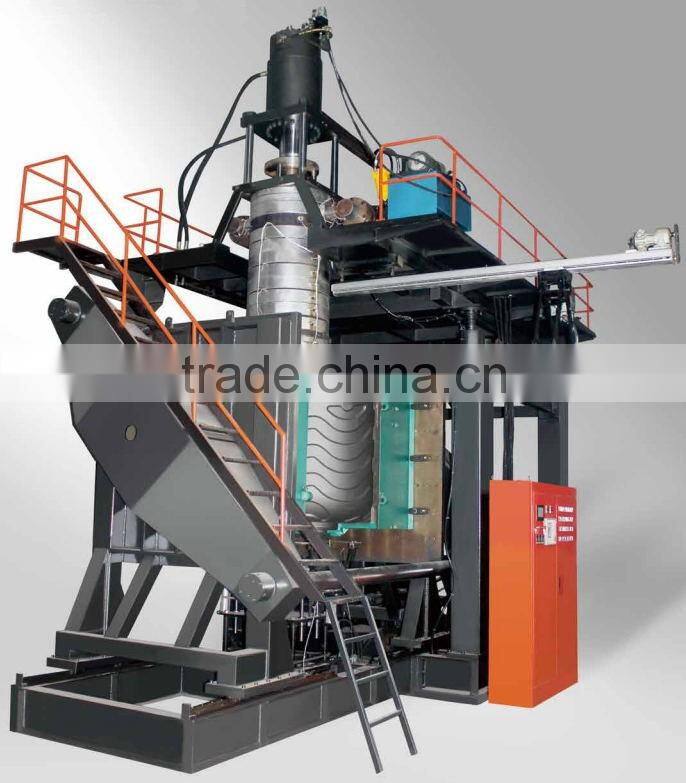

TONVA Water Tank Hydraulic System of Hollow Blow Molding Machine

Name: TONVA Water Tank Hydraulic System of Hollow Blow Molding Machine
Brand: TONVA
Availability: InStock

FOB Price

US$ 176000.00 - 176000.00 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Zhejiang, China
Brand Name	TONVA	Model Number	TVA-1000L-III
Voltage	380V	Power(W)	30/45*2kW
Dimension(LWH)	7.85.46.2	Weight	40000kg
Certification	ISO9001;BV;CE;SGS	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Welcome To TONVA

Product Description

TVA-1000L-III Basic Specification:

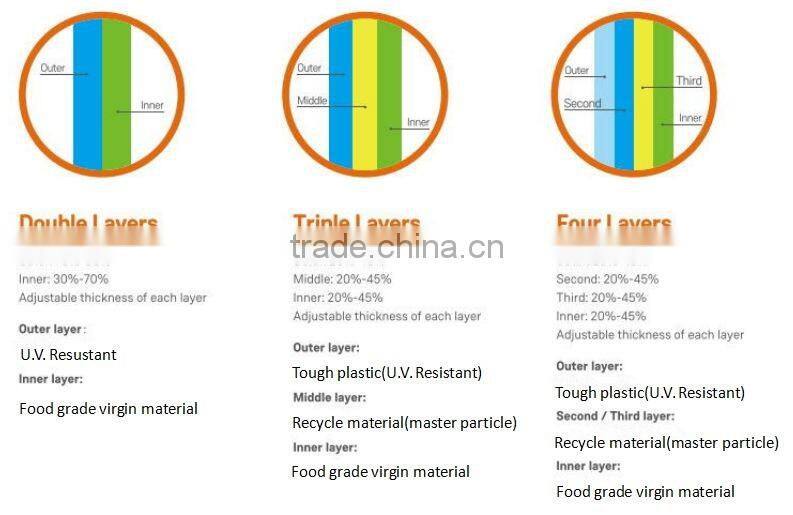

Single station,triple layers;

Accumulator Die-head;

90mm screw / 30kw motor;

100mm screw / 45kw motor;

HDPE etc material;

Output(Barrel per hour):(15KG-20KG)---10-12BPH;

MOOG parison controller 100 points;

Intelligent temperature control system;

Take out robot arm strong type;

Servo motor for saving energy;

TVA-1000L-III Working Condition:

Power supply:380VAC/50HZ(depending on client's country);

Water cooling-----20℃(30HP Water chiller);

Air source-----18kw air compressor;

TVA-1000L-III Technical Parameter
CATEGORY	ITEM	UNIT	TVA-1000L-III
Basic Specification	Raw Material	--	HDPE etc
	Dimension	m	7.55.46.2
	Total Weight	kg	40000
Extrusion System	Diameter of screw	mm	90/100/100
	Screw L/D ration	L/D	30:1
	Screw rotating speed	r/min	10-85
	Plasticizing capacity	kg/h	380
	Drive motor	kw	30/45*2
	Heating power	kw	23/25*2
Die Head	Die head material	--	38CrMOALA
	Accumulator volume	L	40
	Accumulator capacity	kg	30
	Heating power	kw	35
Clamping System	Platen size(W*H)	mm	1600*1900
	Clamping range	mm	1000-2800
	Clamping force	kn	1200
Power Consumption	Servo pump power	kw	37
	Total power	kw	265
	Average power consumption	kw/h	114
	Air consumption	m³/min	1.2
	Water consumption	m³/h	3.5

Basic Working Theory:

This kind of machine is accumulator die head, single station, equipped with PLC control system, operating manual in English, pure hydraulic operated, with MOOG 100points parison controller, running stable.

Detailed Images

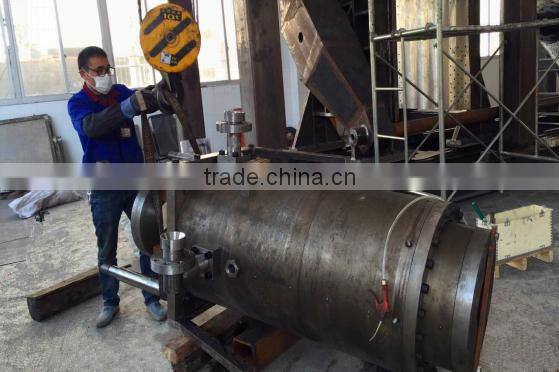

Die-head

The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness,strong corrosion resistance and long operating life after nitrogen treatment.

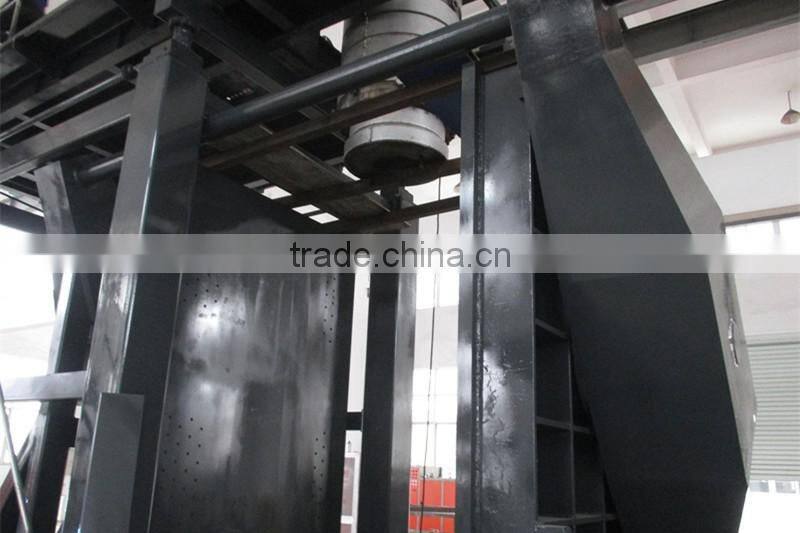

Clapming system

Double tie rod hydraulic clamping,the structure is compact,effective mold size increase 25%.

Blowing System

The movements of blowing plasten in vertical level for blowing pin up and down and horizontal level for parison stretch are drive by hydraulic motor.

Moulds Workshop

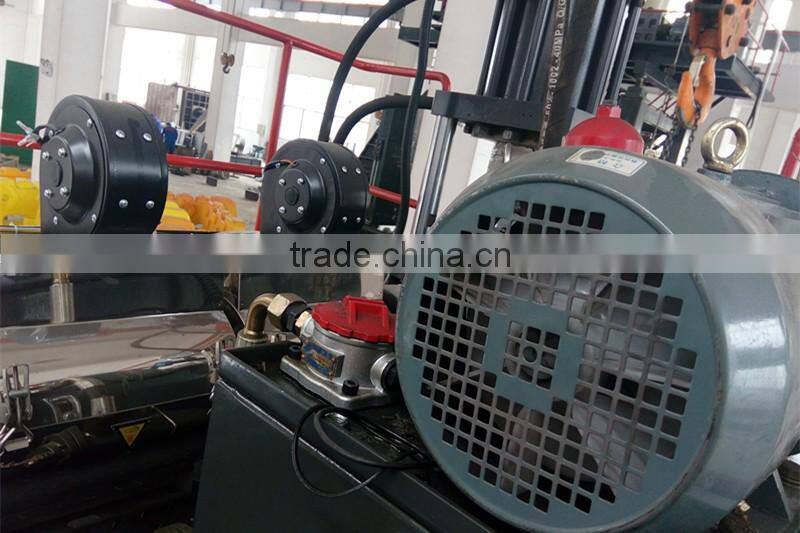

Main parts brand

Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.

1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
