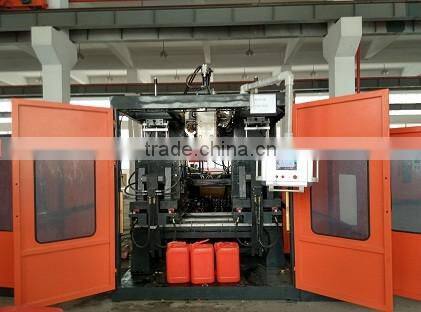

20L triple layer jerry can extrusion blow molding machine after-sales service provided
- 35 Set / Sets per Month
- Ningbo
- T/T
You May Like
-
2000L triple layer PE road barrier extrusion blow molding machine
-
Roadblock accumulator type extrusion blow molding machine 1000L triple layer
-
220L accumulator die-head extrusion blow molding machine
-
100L plastic blue barrel extrusion blow molding machine
-
2000L PE large extrusion water horse blow molding machine
-
China Plastic single layer 3000L extrusion blow molding machine
Product Details
Condition | New | Application | Other, JERRY CAN | |
Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
Automatic | Yes | Place of Origin | Zhejiang, China | |
Brand Name | TONVA | Model Number | TVHD-20L-III | |
Voltage | 380V/50HZ | Power(W) | 55+90+55KW | |
Dimension(L*W*H) | 5.0*3.2*2.2m | Weight | 45T | |
Certification | CE ISO SGS | Warranty | 1 Year Guarantee | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
TONVA company was established at 1993. The company is one of the largest manufactures of Extrusion Blow Molding Machine, Stretch blow molding machine and molds in China.
The Company has a group of experienced people who contribute more than twenty years in Blow Molding
Machine industry and a team who good at after-sale service. We have got the certificate of ISO9001:2008 International Quality Control System and the CE&SGS system. Moreover, since the company focus on innovation and invest in the advanced technology year after year, it been named the National High-Tech Enterprise in the year of 2014. With fabulous reputation and favorable service, our products reach great sales both in domestic market and more than 80 countries.
Category | Item | Unit | Parameters |
Basic Specification | Raw Material | -- | PE etc. |
Container Capacity Max | L | 20 | |
Machine Dimension | m | 5×3.2×2.2 | |
Total Weight | kg | 11800 | |
Extrusion system | Diameter of screw | mm | 55+90+55 |
Screw L/D ratio | L/D | 25:1 | |
Plasticizing capacity | kg/h | 220 | |
Drive motor | kW | 7.5+30+7.5 | |
Heating power | kW | 7+23+7 | |
Die head | Die head material | -- | 38CRMOALA |
Accumulator volume | L | 3.7 | |
Heating power | kW | 10 | |
Clamping system | Sliding Distance | mm | 500-600 |
Clamping range | mm | 350-400 | |
Clamping force | kN | 150 | |
Power consumption | Air Pressure | Mpa | 0.6 |
Total Power | kW | 95 | |
Average power Consumption | kW/h | 58 | |
Air consumption | m3/min | 1.0 | |
Water consumption | m3/h | 2.0 |
We can provide
1. Reply the email and take action in 24 hours.
2. 100% Quality inspection before the shipment.
3. Can trainning clients operator for free in seller's factory.
4. Engineer overseas is avilable.
5. Blowing mould and injection mould made orginal.
6. Auxiliary machines for complete line.
7.Customized design as requirements.
1. Instruction for Installation and Debugging:
Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the
provided machine could be safely and smoothly put into operation.
TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and USD80 per day for salary.
2. User Training:
Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period:
The warranty period for TONVA machine is one year with a life long maintenance. If the user
requires special quality guarantee, other stipulated warranty period may be made after mutual
agreement.
v Can the machine customized only for my products?
Yes, most TONVA machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
v How about the molds ?
TONVA has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
v What is the business item for this project ?
a. Delivery Date: within 65 days after receive the deposit and samples or drawing confirmed by buyer and TONVA.
b. Port of Loading: NINGBO, CHINA.
c. Payment: 30% TT deposit, balance before shipment
or 100% irrevocable L/C at sight.
v What is the warranty period?
a. TONVA machine Main parts is one year warranty with a lifelong maintenance.
b. Mould within one year or 5 millions warranty.
