CE appreved making 20 liter jerry can blow molding machine
- 100 Set / Sets per Month
- NINGBO
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Other, Plastic can | Plastic Processed: | PE |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | TONVA | Model Number: | TVA-20L | Voltage: | 380V/50HZ |
Power(W): | 52kw | Dimension(L*W*H): | 2.6*1.6*1.8M | Weight: | 7.2T |
Certification: | CE, ISO9001:2008 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

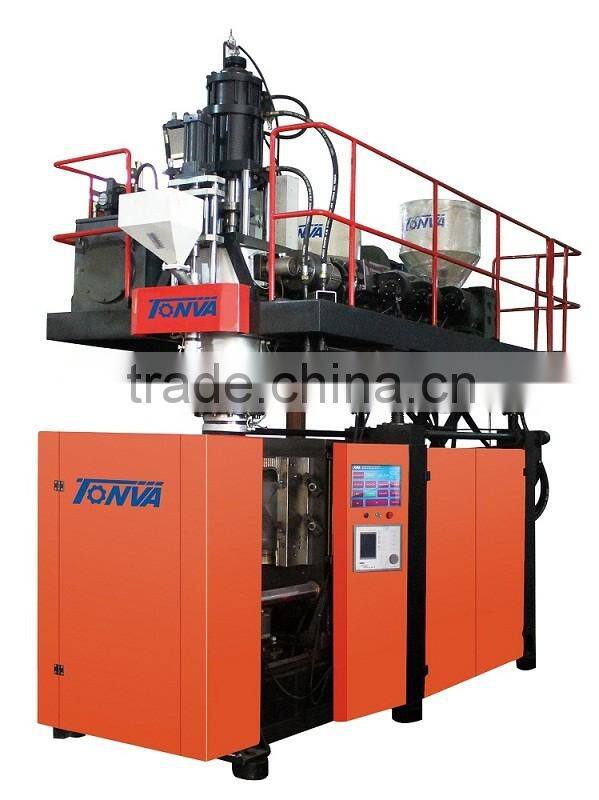

20L single station blow moulding machine with servo system
Model:TVA-20L
(1) | Single station/single layer, 100mm screw/45kw motor, suitable for PE raw material | |||
(2) | Output | 3kg product----------20 pieces per hour | ||
(3) | Accum-head: |
| First in /First out(FIFO design);3.7/2.8kg | |
(4) | Electrical control | MITSUBISHI PLC&Touch Screen and Schneider electric parts | ||
(5) | Hydraulic system: | YUKEN oil pump,assures stable mold traverse | ||
|
| Hydraulically controlled blow-pin with cooler circulation | ||
| Robot arm | Optional |
| |
(6) | Working condition: | Power supply——380VAC, 50Hz (depending on client's country) | ||
|
| Water source——10HP Water chiller | ||
|
| Air source——0.8Mpa, 0.6m3/min (1.2 m3/min air compressor) |
The process begins with a plastic resin hot tube called a parison. The parison is placed within a split mold with a hollow cavity. The mold sides are then clamped together, pinching and sealing the parison tube. Air is blown into the tube, which expands the hot resin wall into the shape of the mold cavity; the mold is cooled with water solidifying the resin into the shape of the part. Once cooled, the part is ejected from the mold and trimmed
1.Plasticizing System:
Screw& Barrel: High quality nitriding steel 38CrMoAlA for long working life.large L/D ratio design,ensure material equally processed, extruder stably.
Die –head:First-in First-out(FIFO),center-feeder/customized design.
2. Drive mode:
inverter + hard gear surface decelerator,lower consumption,low noise,balanced and stable screw rotation.
3.Temperature controller:
PID&PWM heating model,accurate control
4.Clamping system:
Fixed clamping system, three platen,SMC cylinder ,wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
5.PLC and HMI:
Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;
6.Electric Parts:
Schneider Brand,high reliability,long working life.

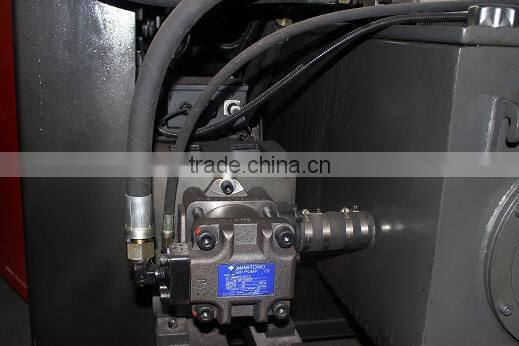

(1) Servo System (2) View Stripe
.
(3) Multiple Layers
- EVOH/PA: make the bottle to fight toxic substances and longer keeping,
- Two layer can be designed to reduce the cost and make good surface of bottle, it can use new raw material at outer layer and regrind raw material at inner layer
Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN
Categry | Item | Unit | Paraments |
Basic Specification
| Raw Material | -- | PE etc. |
Container Capacity Max | L | 20 | |
Machine Dimension | m | 3.5×3.4×3.3 | |
Total Weight | kg | 7200 | |
Extrusion system
| Diameter of screw | mm | 70 |
Screw L/D ratio | L/D | 28:1 | |
Screw rotating speed | r/min | 10-85 | |
Plasticizing capacity | kg/h | 80 | |
Drive motor | kW | 15 | |
Heating power | kW | 18 | |
Die head
| Die head material | -- | 38CRMOALA |
Accumulator volume | L | 3.7 | |
Accumulator capacity | kg | 2.8 | |
Heating power | kW | 8 | |
Clamping system
| Platen size (W x H) | mm | 700×850 |
Clamping range | mm | 300-800 | |
Clamping force | kN | 200 | |
Pwer consumption
| Servo pump power | kW | 11 |
Total Power | kW | 52 | |
Average power Consumption | kW/h | 22 | |
Air consumption | m3/min | 0.6 | |
Water consumption | m3/h | 1.2 |
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7.Custimized design as requirements.
- Instruction for Installation and Debugging
Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $60 per day salary.
- User Training
Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
- Warranty Period
The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
