Specifications
good use u-key auto cards dispenser1.U-key card dispenser with scanner
2.RS232 interface control
3.CE,FCC

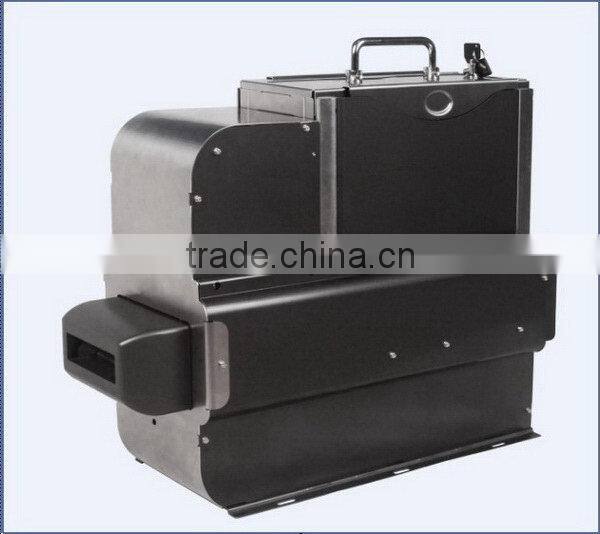

Customized hot-sale good use u-key auto cards dispenser

Technical data
Subject | Content |
Model | TTCE-D1630 |
Operation power | 24VDC (Max current 4.5A, static current 0.1A) |
| Card stay position | Multiple card stop position |
| Operation condition | Install in the cabinet |
| Card thickness | Width:80±0.5 mm Length:100±0.5 mm Thickness:20mm±0.5 mm |
| Card material | Paper or PVC |
| Stacker capacity | Standard 30pcs, extended 45pcs(based on thickness 20mm of card box) |
| card type | U-key card |
| Transmission device | 500,000pcs |
| Dispense card speed | 15pcs/mins |
| Magnetic head life span | 800000passes |
| Few card Alert | Standard 10pcs, extended 15pcs |
| Interface | RS232 |
| Dimension | 627*168*585mm |
| Weight | 27KG |
FEATURES of good use u-key auto cards dispenser
Active and closed stacker and capturing box, easy to carry with strong safety
The stacker capacity will according to the actually Ukey size(For standard size, can load 30pcs or
45pcs)
Smart alerts status, support card empty and pre-empty alert etc.
Signal RS232 interface control,24V power supply
Reserve the install position of barcode scanner module
Application of good use u-key auto cards dispenser
Bank ATM kiosk
1. Packaging :
Small box. 100pcs/Carton. 27KG/carton. Packing for 45mm magnetic card reader.
2. Shipping
- Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
- EXPRESS: around 3-7 working days to arrive
- INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
- By sea: depend on which destination port
3.Payment:
- T/T in advance
- Western Union
- Escrow
- L/C
12 months of shipment normally. Some designated models can have as long as 24 months warranty.
Each customer with one of our engineer follow up ,offer 24 hours online service .
RMA Procedure:
If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTEC product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.
Dead-on-Arrival (DOA):
Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
Our company
Workshop
Exhibition
Certification
Why choose us?
1)Our factory have 13 years experiences in this field.A group of experienced technicians ensure good quality and after service for you.
2)Direct Factory competitive price,save each penny for you.
good use u-key auto cards dispenser
