Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D

Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D photo-1
Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D photo-2

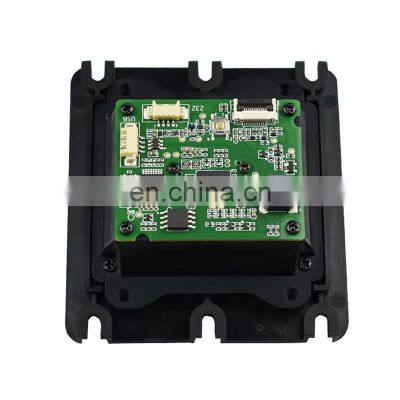

Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D photo-3

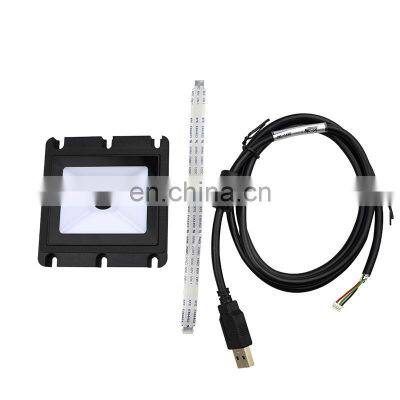

Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D photo-4
Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Mini Size 1D 2D Barcode Reader Engine Embedded QR Code Scanner Kiosk



Product Description

Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D





Product Parameters:

Performance Image Sensor 640 * 480 CMOS
Light Source White LED
Symbologies 2D PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One
1D EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Resolution ≥5mil
Typical Depth of Field EAN-13  25mm-110mm (13mil)
PDF 417 35mm-50mm (6.7mil)
Data Matrix 15mm-40mm (10mil)
QR Code 0mm-90mm (15mil)
Symbol Contrast 30%
Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of View Horizontal 68°, Vertical 51°, Diagonal 84.8°
Mechanical Interface TTL-232, RS-232, USB
Electrical Power Adapter  DC5V power adapter to power the scanner with RS-232 cable.
Current 3.3VDC Operating 335mA (typical),  479mA (max.)
Idle 93mA
Dimensions  61.5(W)×65.5(D)×31.9(H)mm (max.)
Weight 33g
Environmental Operating Temperature -40℃~+60℃
Storage Temperature -40℃~+75℃
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Accessories Cable

USB             Used to connect the scanner to a host device.

RS-232         Used to connect the scanner to a host device.



Barcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2DBarcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2DBarcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2DBarcode Reader Engine Embedded QR Code Scanner Kiosk Mini Size 1D 2D
