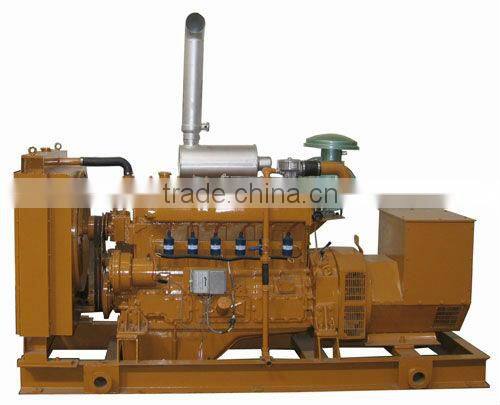

100kw coal gas generator set with CHP
1. Advanced Control Panel
2. closed Water-cooled engine
3. Service OEM Offered

100kw coal gas generator set with CHP

Parameter of coal gas Generator Set
Model Number (Engine Type)	LHCG100
Brand Name	LVHUAN
Prime Power/Standby Power	80KW/100KVA
Rated Speed	1500/1800rpm
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤9.8mj/kw.h
Lubricant consumption	≤1.63g/kw.h
Engine Capacity	12.90 L
Cylinder Number	6
Cylinder Bore	135mm
Stroke	150mm
Starting System	DC 24V electric motor
Cooling method	water cooler
Lubricant method	Passive and flying lubricant
Isolation class	H
Protection	IP23
Ignition System	ALTRONIC
Mixer	IMPCO
Speed regulator(Auto)	YSD
Control Panel	SMARTGEN
Alternator	stamford
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001, ISO14001, CE
Warranty	1 year or 1500 running hours which arrives first
Type	open
Control system	Automatic alarm system
Size	2850x1100x1750mm
Weight	1900kg
