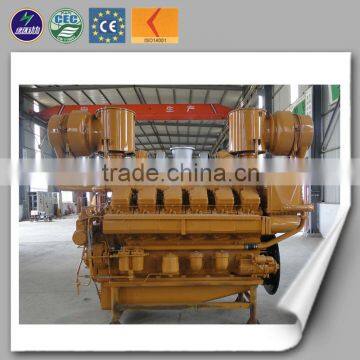

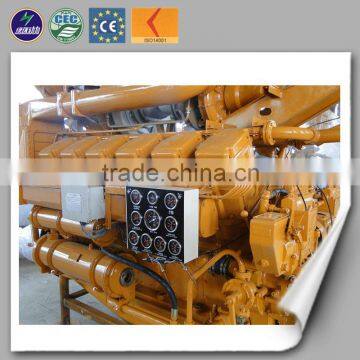

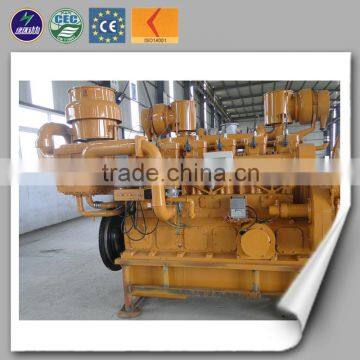

Help CenterManufacture Supply 500KW Electric Methane Coke Oven Gas Generator CE Approved Hot Sale PRICE
Related Products
-
China Manufacture Supply 300-500KW Electric Methane Coke Oven Gas Generator CE Approved Hot Sale PRICEUS$ 117,218 - 139,532MOQ: 1 Set -
China Manufacture Supply 400-500KW Electric Methane Coke Oven Gas Generator CE Approved Hot Sale PRICEUS$ 117,500 - 134,000MOQ: 1 Set
-
Manufacture Supply Big Rated Power 600KW Electric Methane Coke Oven Gas Generator CE Approved Hot Sale PRICEUS$ 148,000 - 153,800MOQ: 1 Set
-
Manufacture Supply 100-500KW Electric Methane Coke Oven Gas Generator CE Approved Hot Sale PRICEUS$ 37,000 - 139,652MOQ: 1 Set
-
Manufacture Supply 400-600KW /1mw/3mw/5mw Electric Methane Coke Oven Gas Generator CE Approved Hot Sale PRICEUS$ 89,654 - 127,015MOQ: 1 Set
Open Type Lvhuan Power Coke Oven Gas Generator Sets Brushless Alternators
coke oven gas generator Worksite requirements
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40℃~45℃;
b) Relative humidity less than 90%(35℃);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
generator of coke oven gas requirement
1m distance away from genset’s pressure regulating valve of inlet
1)Temperature of coke oven gas ≤40℃;
2)Pressure of coke oven gas 80~200kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤20mg/Nm3;
4)Impurities particle size≤5μm; impurity content≤30mg/Nm3;
5)Moisture Content of coke oven gas ≤40g/Nm3;
The parameters of the coke oven gas generator
| Model Number (Engine Type) | LHCOG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.4L |
| Cylinder Number | 12 |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |
1. over 15 years gas/diesel generator produced experience;
2. main products include: diesel engines, biomass generator, natural gas generator , biogas generator , coal gas generator set, etc. Products arrange from 5kw-3000kw ;
3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 person.
4.CE,ISO9001:2008,ISO2001:1400 ,SGSetc.certificats approve and passed many patents.
5. exported many countries such as: Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
6.we provide TURN-KEY project : like water removal system,H2S removal system,gasified equipment,
recovery system of exhaust heat,CCHP system etc.
7.machine have long serive-life: more than 15 years
pre-sale service:
1) We will send our engineer to prospect the site of power station free to charge.
2) According to the situation of site we can supply you many drawings:like power station floor
plan,engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
Sale service:
1) we will send our engineer to the site to guide you the installation of generator set, subsystem
and relative equipment.
2) We will debug the generator set till it can generate power successfully.
3) We will also supply a technical training to the operators.Orcan send your staff to our company.
We can train you till you can operate the generator set.
After-sale service:
1) Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) One year guarantee period and lifetime service.
4) we solve quality problem in time when genset doesn’t work,We insure to help our clients to
gain the biggest economic profit.
1.How to choose the right model?
It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
1.01.63g of lubricant oil consumption per hour. 1.0 Cubic meter gas can produce 1.53.0kw/h power. The capacity depends on gas energy. E.g 1.0Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
About 30000 working hours. A week is enough to finish.
4. What is the warranty?
it's 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period,spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can
name it.
